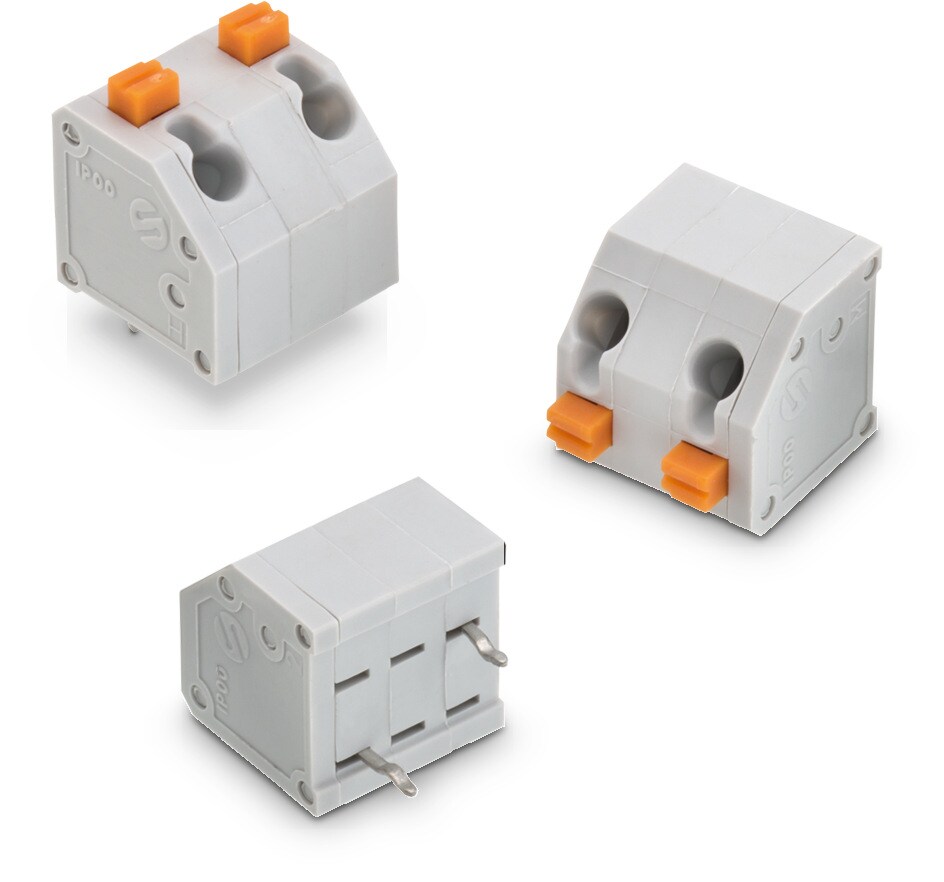

WR-TBL Serie 4122M - 7.00 mm 45° Entry Screwless

Kind Properties
Pitch 7 mm
Material Properties
Insulator Material PA6/66
Insulator Flammability Rating UL94 V-0
Insulator Color Grey
Contact Material Phosphor Bronze
Contact Plating Tin
Wire Guard Material Phosphor Bronze with Tin
General Information
Operating Temperature -30 up to +120 °C
Compliance Lead free / RoHS
Electrical Properties
IR UL 4 A
IR VDE 4 A
Working Voltage [UL] 300 V (AC)
Working Voltage [VDE] 750 V (AC)
Withstanding Voltage [UL] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance 20 mΩ
Mechanical Properties
Wire Strip Length 7 (mm)
Wire Properties
Solid Wire Section (AWG) 16 to 30 (AWG)
Solid Wire Section (Metric) 1.31 to 0.05 (mm²)
Stranded Wire Section (AWG) 16 to 30 (AWG)
Stranded Wire Section (Metric) 1.31 to 0.05 (mm²)
Certification
UL Approval E150931 Cat No. MRT24 (3)
VDE Approval 40013441 Type MRT24
Packaging Properties
Packaging Box

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691412220002M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 2 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220003M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 3 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220004M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 4 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220005M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 5 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220006M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 6 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220007M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 7 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220008M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 8 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220009M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 9 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220010M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 10 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220011M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 11 16 to 30 (AWG) 1.31 to 0.05 (mm²)
691412220012M
IGE STE 3D ALT EAG CAD Screwless PCB No 45° 12 16 to 30 (AWG) 1.31 to 0.05 (mm²)
