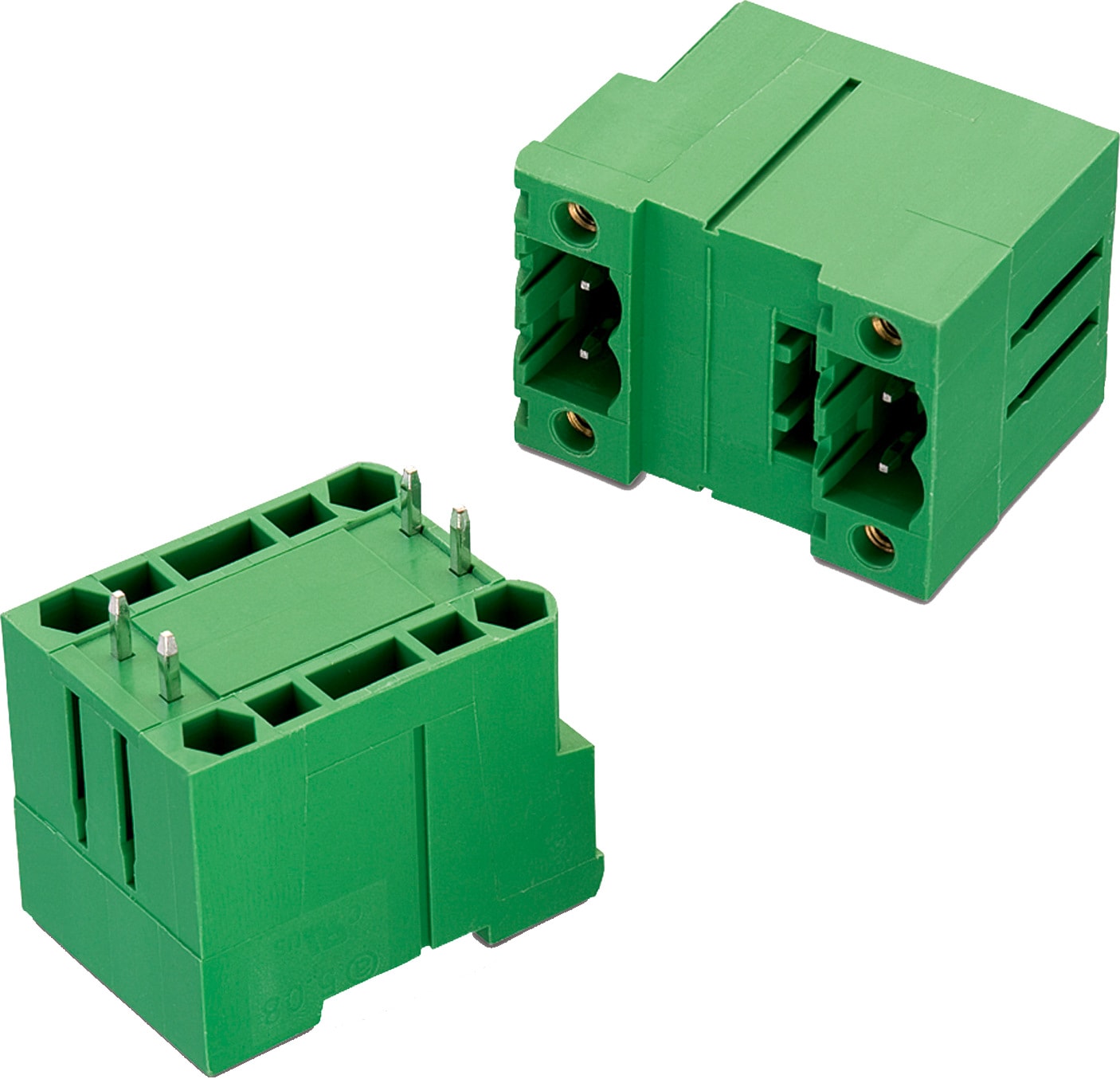

WR-TBL Series 3345 - 5.08 mm Double Level Vertical Male PCB Header w. Flanges & Nut Type | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691334500004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691334500004_1 (rev1).pdf \| 244.3 KB IGS 691334500004 (rev1).igs \| 2.2 MB STP 691334500004 (rev1).stp \| 867.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical
691334500006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691334500006_1 (rev1).pdf \| 307.1 KB IGS 691334500006 (rev1).igs \| 2.9 MB STP 691334500006 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical
691334500008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691334500008_1 (rev1).pdf \| 364.5 KB IGS 691334500008 (rev1).igs \| 3.6 MB STP 691334500008 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical
691334500010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691334500010_1 (rev1).pdf \| 419 KB IGS 691334500010 (rev1).igs \| 4.3 MB STP 691334500010 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Vertical
691334500012	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691334500012_1 (rev1).pdf \| 480 KB IGS 691334500012 (rev1).iges \| 5 MB IGS 691334500012 (rev1).igs \| 5 MB STP 691334500012 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical
691334500014	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP IGS 691334500014 (rev1).igs \| 5.7 MB STP 691334500014 (rev1).stp \| 2.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	Pluggable	PCB	No	Vertical
691334500016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691334500016_1 (rev1).pdf \| 601.1 KB IGS 691334500016 (rev1).igs \| 6.4 MB STP 691334500016 (rev1).stp \| 2.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Vertical
691334500018	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP STP 691334500018 (rev1).stp \| 2.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	Pluggable	PCB	No	Vertical
691334500020	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP STP 691334500020 (rev1).stp \| 2.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	Pluggable	PCB	No	Vertical

Order Code	Datasheet
691334500004	SPEC
691334500006	SPEC
691334500008	SPEC
691334500010	SPEC
691334500012	SPEC
691334500014	SPEC
691334500016	SPEC
691334500018	SPEC
691334500020	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
