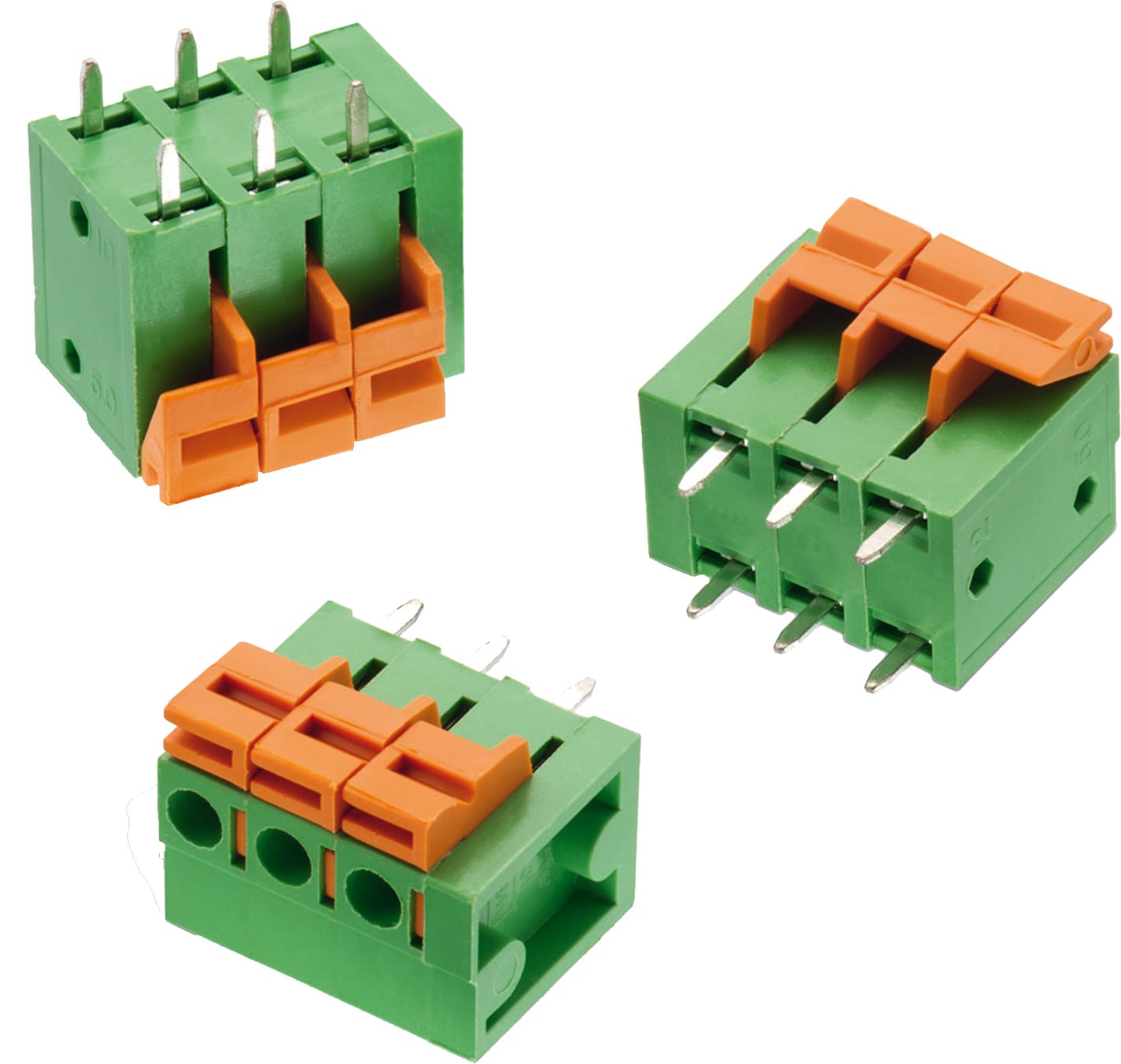

WR-TBL Series 401B - 5.00 mm Screwless Vertical Entry - 2.0 mm 2 Wires | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin
Wire Guard Material	Stainless Steel

Electrical Properties
I_{R cULus}	10 A
I_{R VDE}	16 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	450 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
Contact Resistance [cULus]	20 mΩ

Mechanical Properties
Wire Strip Length	9 up to 10 (mm)

Wire Properties
Solid Wire Section (AWG)	14 to 24 (AWG)
Solid Wire Section (Metric)	2.08 to 0.205 (mm²)
Stranded Wire Section (AWG)	14 to 24 (AWG)
Stranded Wire Section (Metric)	2.08 to 0.205 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40036896

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691401700002B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700002B (rev1).pdf \| 120.5 KB IGS Download_IGES_691401700002B (rev1).iges \| 1.2 MB STP 691401700002B (rev1).stp \| 434.6 KB	2	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	691001
691401700003B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700003B (rev1).pdf \| 121.5 KB IGS Download_IGES_691401700003B (rev1).iges \| 1.2 MB STP 691401700003B (rev1).stp \| 435.3 KB	3	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	612690 691001
691401700004B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700004B (rev1).pdf \| 122.4 KB IGS Download_IGES_691401700004B (rev1).iges \| 1.2 MB STP 691401700004B (rev1).stp \| 436.1 KB	4	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700005B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700005B (rev1).pdf \| 123.4 KB IGS Download_IGES_691401700005B (rev1).iges \| 1.2 MB STP 691401700005B (rev1).stp \| 436.9 KB	5	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700006B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700006B (rev1).pdf \| 124.4 KB IGS Download_IGES_691401700006B (rev1).iges \| 1.2 MB STP 691401700006B (rev1).stp \| 437.7 KB	6	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700007B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700007B (rev1).pdf \| 125.3 KB IGS Download_IGES_691401700007B (rev1).iges \| 1.2 MB STP 691401700007B (rev1).stp \| 438.5 KB	7	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700008B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700008B (rev1).pdf \| 126.3 KB IGS Download_IGES_691401700008B (rev1).iges \| 1.2 MB STP 691401700008B (rev1).stp \| 439.3 KB	8	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700009B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700009B (rev1).pdf \| 127.3 KB IGS Download_IGES_691401700009B (rev1).iges \| 1.2 MB STP 691401700009B (rev1).stp \| 440.1 KB	9	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700010B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700010B (rev1).pdf \| 128.3 KB IGS Download_IGES_691401700010B (rev1).iges \| 1.2 MB STP 691401700010B (rev1).stp \| 440.9 KB	10	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700011B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700011B (rev1).pdf \| 129.3 KB IGS Download_IGES_691401700011B (rev1).iges \| 1.2 MB STP 691401700011B (rev1).stp \| 441.7 KB	11	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
691401700012B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691401700012B (rev1).pdf \| 130.3 KB IGS Download_IGES_691401700012B (rev1).iges \| 1.2 MB STP 691401700012B (rev1).stp \| 442.5 KB	12	Screwless	PCB	No	Vertical	14 to 24 (AWG) 2.08 to 0.205 (mm²)	–
