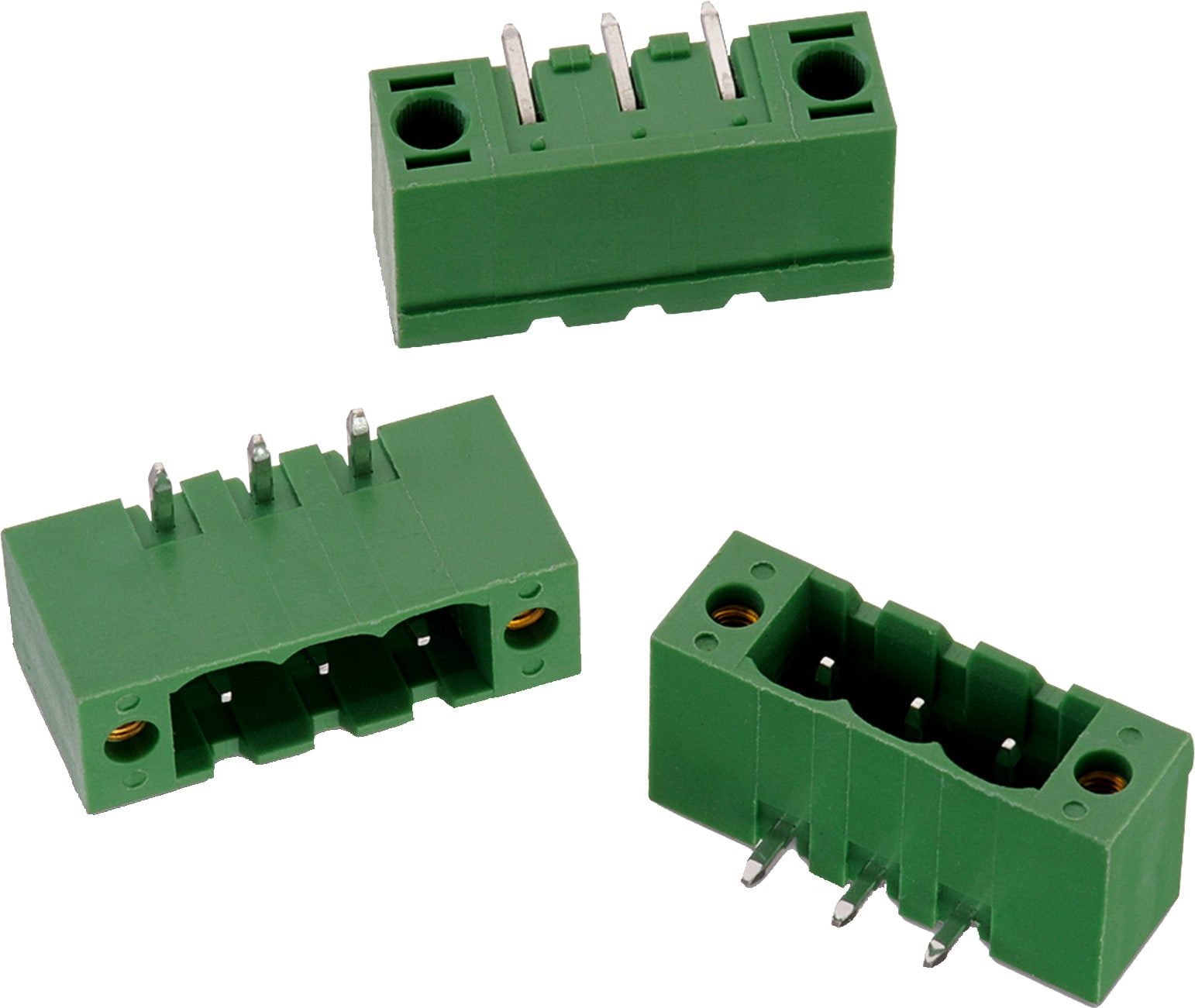

WR-TBL Series 3177 - 5.00 mm Close Horizontal PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
I_R[VDE]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691317710002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317710002_1 (rev1).pdf \| 156.4 KB IGS 691317710002 (rev1).igs \| 1008.5 KB STP 691317710002 (rev1).stp \| 372.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	PCB Header	PCB	No	Horizontal
691317710003	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317710003_1 (rev1).pdf \| 178.6 KB IGS 691317710003 (rev1).igs \| 1.2 MB STP 691317710003 (rev1).stp \| 452.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	PCB	No	Horizontal
691317710004	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317710004_1 (rev1).pdf \| 197.1 KB IGS 691317710004 (rev1).igs \| 1.4 MB STP 691317710004 (rev1).stp \| 533.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	PCB	No	Horizontal
691317710005	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317710005_1 (rev1).pdf \| 216.9 KB IGS 691317710005 (rev1).igs \| 1.6 MB STP 691317710005 (rev1).stp \| 614.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	PCB	No	Horizontal
691317710006	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317710006_1 (rev1).pdf \| 242.1 KB IGS 691317710006 (rev1).igs \| 1.8 MB STP 691317710006 (rev1).stp \| 697.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	PCB	No	Horizontal
691317710007	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691317710007 (rev1).pdf \| 263.4 KB IGS Downloads_IGES_691317710007 (rev1).iges \| 2.1 MB STP Downloads_STP_691317710007 (rev1).stp \| 780.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	PCB Header	PCB	No	Horizontal
691317710008	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317710008_1 (rev1).pdf \| 277.9 KB IGS 691317710008 (rev1).igs \| 2.2 MB STP 691317710008 (rev1).stp \| 863.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	PCB Header	PCB	No	Horizontal
691317710012	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691317710012 (rev1).pdf \| 369.7 KB IGS Downloads_IGES_691317710012 (rev1).iges \| 3.1 MB STP Downloads_STP_691317710012 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	PCB Header	PCB	No	Horizontal

Order Code	Datasheet
691317710002	SPEC
691317710003	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
691317710004	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
691317710005	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
691317710006	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
691317710007	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
691317710008	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
691317710012	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 30/12/2025 SPEC Datasheet valid from 31/12/2025
