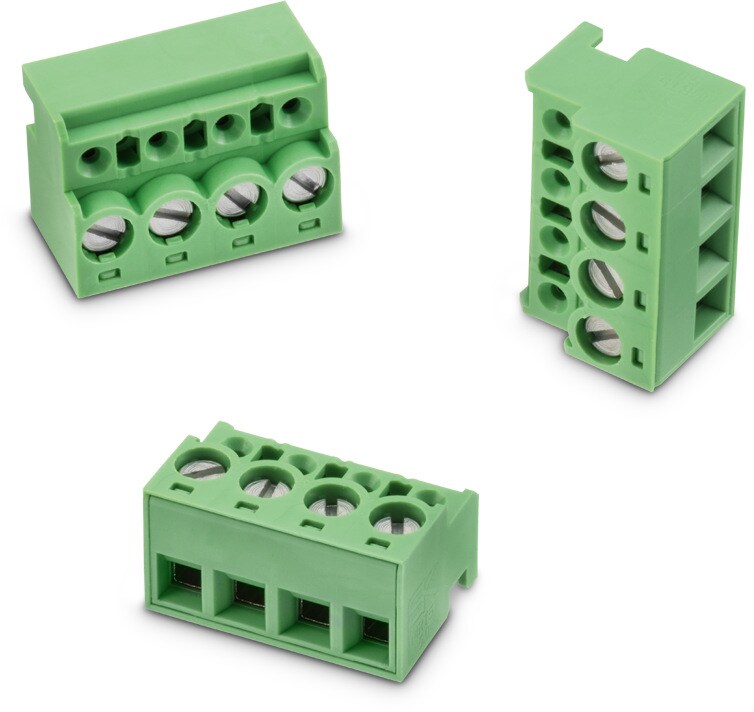

WR-TBL Series 3157 - 5.00 mm Horizontal Entry Plug With Rising Cage | Electromechanical Components

General Information
Operating Temperature	-30 °C up to +160 °C
Compliance	Lead free / RoHS; RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel (Ni)
Terminal Screw Material	Stainless Steel
Terminal Screw Plating	Tin
Wire Guard Material	Copper Alloy with Tin

Electrical Properties
I_R	12 A
I_{R cULus}	12 A
I_{R VDE}	12 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	4000 V (AC)
Contact Resistance [cULus]	20 mΩ
Contact Resistance [VDE]	20 mΩ

Mechanical Properties
Wire Strip Length	6 (mm)
Screw	M3

Wire Properties
Solid Wire Section (AWG)	30 to 14 (AWG)
Solid Wire Section (Metric)	0.0509 to 2.08 (mm²)
Stranded Wire Section (AWG)	30 to 14 (AWG)
Stranded Wire Section (Metric)	0.0509 to 2.08 (mm²)

Certification
cULus Approval	E150931
VDE Approval	40048417

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691315710002	SPEC	3 files CAD files ZIP 3D 3D_691315710002 (rev1).pdf \| 131.6 KB IGS Download_IGES_691315710002 (rev1).iges \| 1.5 MB STP Download_STP_691315710002 (rev1).stp \| 341.9 KB Download all 3 files as zip archive ZIP	2	Pluggable	Cable	No	Horizontal	30 to 14 (AWG) 0.0509 to 2.08 (mm²)	691002
691315710003	SPEC	3 files CAD files ZIP 3D 3D_691315710003 (rev1).pdf \| 200.3 KB IGS Download_IGES_691315710003 (rev1).iges \| 2.2 MB STP Download_STP_691315710003 (rev1).stp \| 520 KB Download all 3 files as zip archive ZIP	3	Pluggable	Cable	No	Horizontal	30 to 14 (AWG) 0.0509 to 2.08 (mm²)	–
691315710004	SPEC	3 files CAD files ZIP 3D 3D_691315710004 (rev1).pdf \| 257.8 KB IGS Download_IGES_691315710004 (rev1).iges \| 3 MB STP Download_STP_691315710004 (rev1).stp \| 702 KB Download all 3 files as zip archive ZIP	4	Pluggable	Cable	No	Horizontal	30 to 14 (AWG) 0.0509 to 2.08 (mm²)	–

Order Code	Datasheet
691315710002	SPEC
691315710003	SPEC
691315710004	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples
