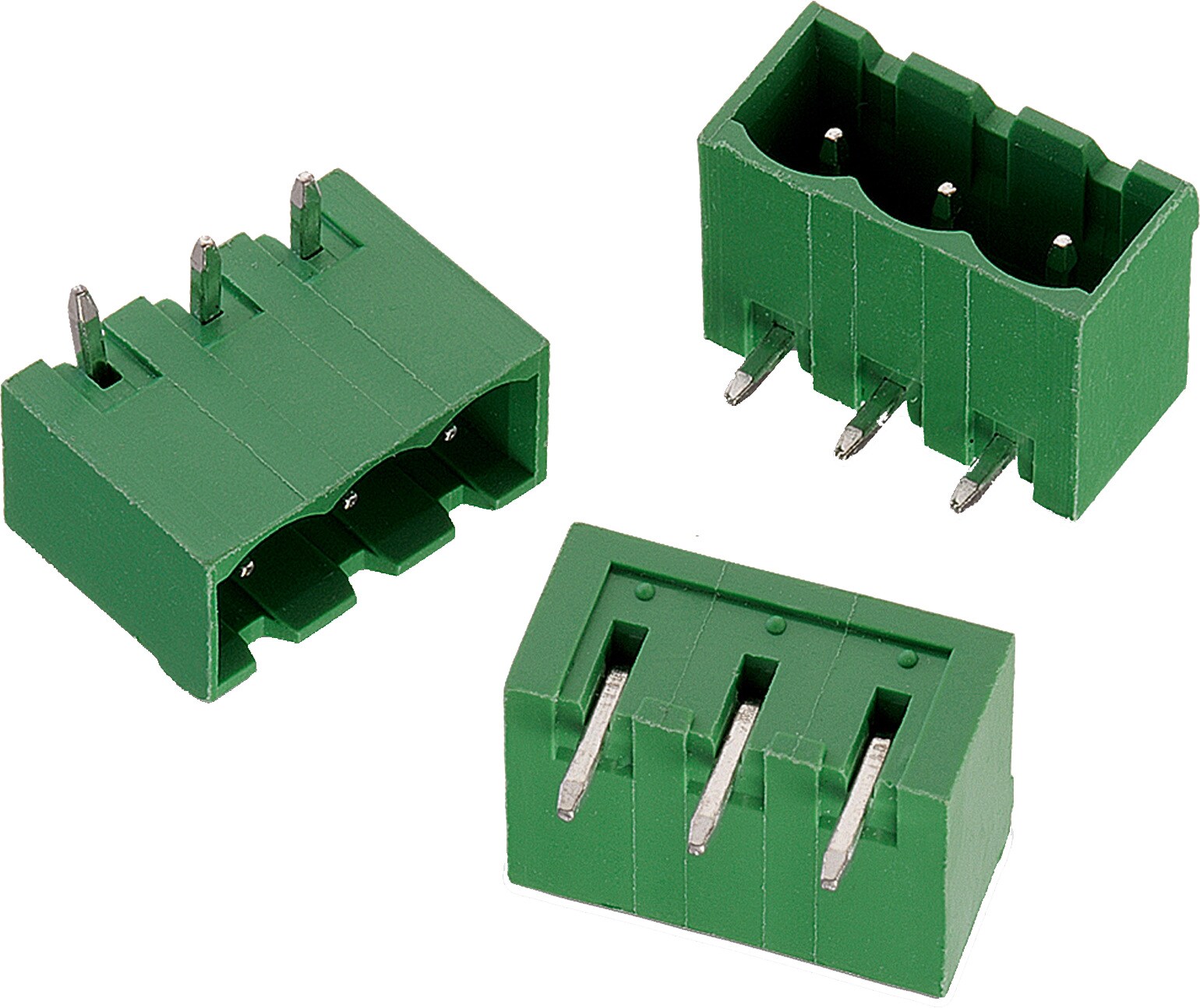

WR-TBL Series 3137 - 5.00 mm Close Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A; 20 A
I_R[cULus]	15 A; 20 A
I_R[VDE]	15 A; 20 A
Working Voltage	300 V; 320 V
Working Voltage [cULus]	300 V
Working Voltage [VDE]	320 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691313710002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691313710002_1 (rev1).pdf \| 72 KB IGS 691313710002 (rev1).igs \| 720.5 KB STP 691313710002 (rev1).stp \| 266.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Horizontal	–
691313710003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691313710003_1 (rev1).pdf \| 96.1 KB IGS 691313710003 (rev1).igs \| 1011.7 KB STP 691313710003 (rev1).stp \| 369.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Horizontal	691002
691313710004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691313710004_1 (rev1).pdf \| 110.8 KB IGS 691313710004 (rev1).igs \| 1.3 MB STP 691313710004 (rev1).stp \| 470.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal	–
691313710005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691313710005_1 (rev1).pdf \| 133.6 KB IGS 691313710005 (rev1).igs \| 1.6 MB STP 691313710005 (rev1).stp \| 572.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Horizontal	–
691313710006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691313710006_1 (rev1).pdf \| 157.8 KB IGS 691313710006 (rev1).igs \| 1.8 MB STP 691313710006 (rev1).stp \| 677.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal	–
691313710007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691313710007 (rev1).pdf \| 180.1 KB IGS Downloads_IGES_691313710007 (rev1).iges \| 2.1 MB STP Downloads_STP_691313710007 (rev1).stp \| 783.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Horizontal	–
691313710008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691313710008_1 (rev1).pdf \| 202.3 KB IGS 691313710008 (rev1).igs \| 2.4 MB STP 691313710008 (rev1).stp \| 888.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal	–
691313710012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691313710012 (rev1).pdf \| 300.8 KB IGS Downloads_IGES_691313710012 (rev1).iges \| 3.6 MB STP Downloads_STP_691313710012 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal	–

Order Code	Datasheet
691313710002	SPEC
691313710003	SPEC
691313710004	SPEC
691313710005	SPEC
691313710006	SPEC
691313710007	SPEC
691313710008	SPEC
691313710012	SPEC
