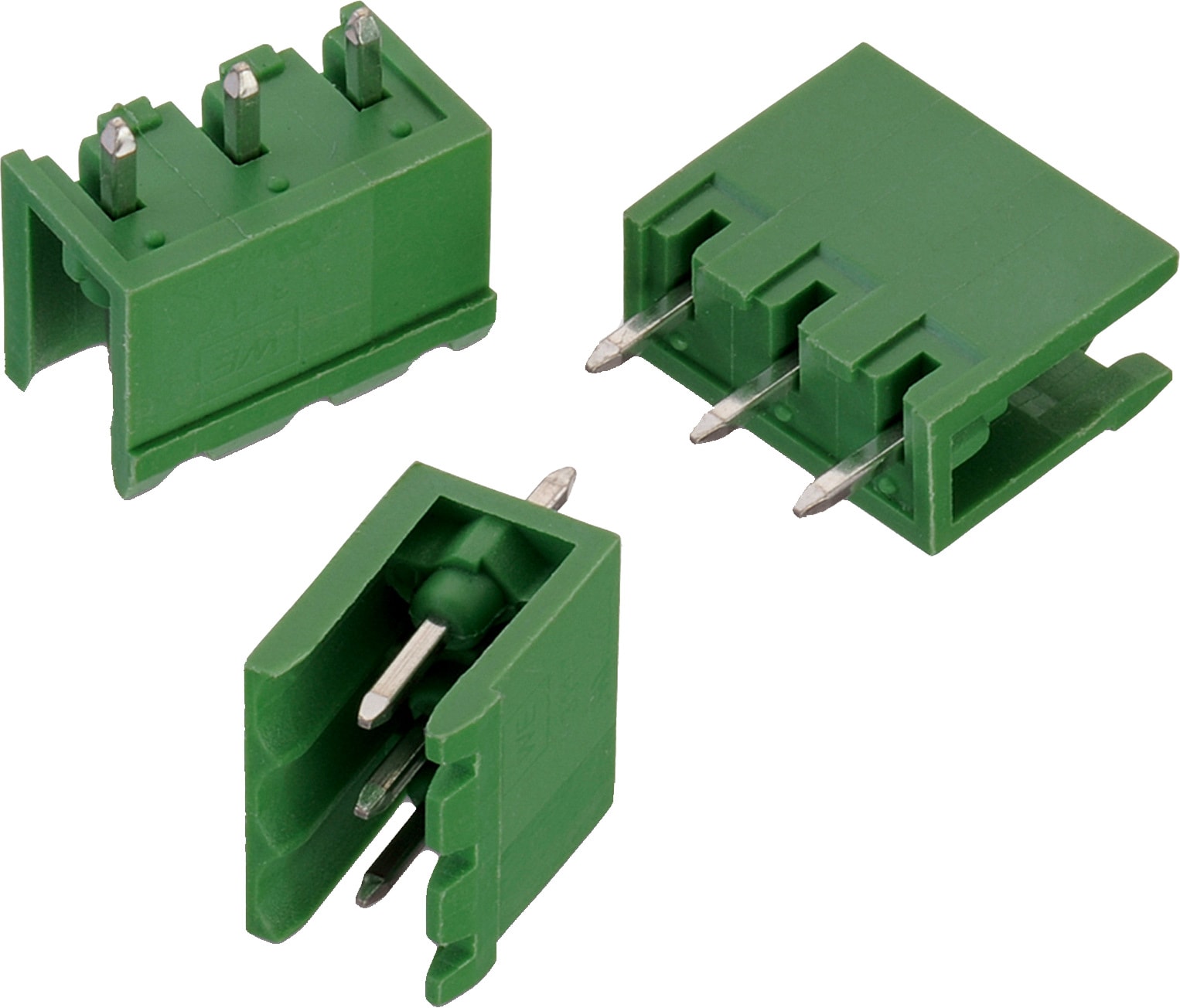

WR-TBL Series 3117 - 5.00 mm Open Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A
I_R[cULus]	15 A
I_R[VDE]	15 A
Working Voltage	300 V; 320 V
Working Voltage [cULus]	300 V
Working Voltage [VDE]	320 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40061301

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample
691311700002	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311700002_1 (rev1).pdf \| 71.9 KB IGS 691311700002 (rev1).igs \| 550.7 KB STP 691311700002 (rev1).stp \| 216.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit 691002	–Check availability
691311700003	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311700003_1 (rev1).pdf \| 96.2 KB IGS 691311700003 (rev1).igs \| 766.7 KB STP 691311700003 (rev1).stp \| 296.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311700004	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311700004_1 (rev1).pdf \| 112.3 KB IGS 691311700004 (rev1).igs \| 980.2 KB STP 691311700004 (rev1).stp \| 376.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311700005	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311700005_1 (rev1).pdf \| 132.6 KB IGS 691311700005 (rev1).igs \| 1.2 MB STP 691311700005 (rev1).stp \| 457.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311700006	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311700006_1 (rev1).pdf \| 149.6 KB IGS 691311700006 (rev1).igs \| 1.4 MB STP 691311700006 (rev1).stp \| 537.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311700008	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311700008_1 (rev1).pdf \| 176.4 KB IGS 691311700008 (rev1).igs \| 1.8 MB STP 691311700008 (rev1).stp \| 702.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311700007	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691311700007 (rev1).pdf \| 168.9 KB IGS Download_IGES_691311700007 (rev1).iges \| 1.6 MB STP Download_STP_691311700007 (rev1).stp \| 619.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311700012	SPECPCB Header, PCB, No	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691311700012 (rev1).pdf \| 284.2 KB IGS Download_IGES_691311700012 (rev1).iges \| 2.7 MB STP Download_STP_691311700012 (rev1).stp \| 1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
