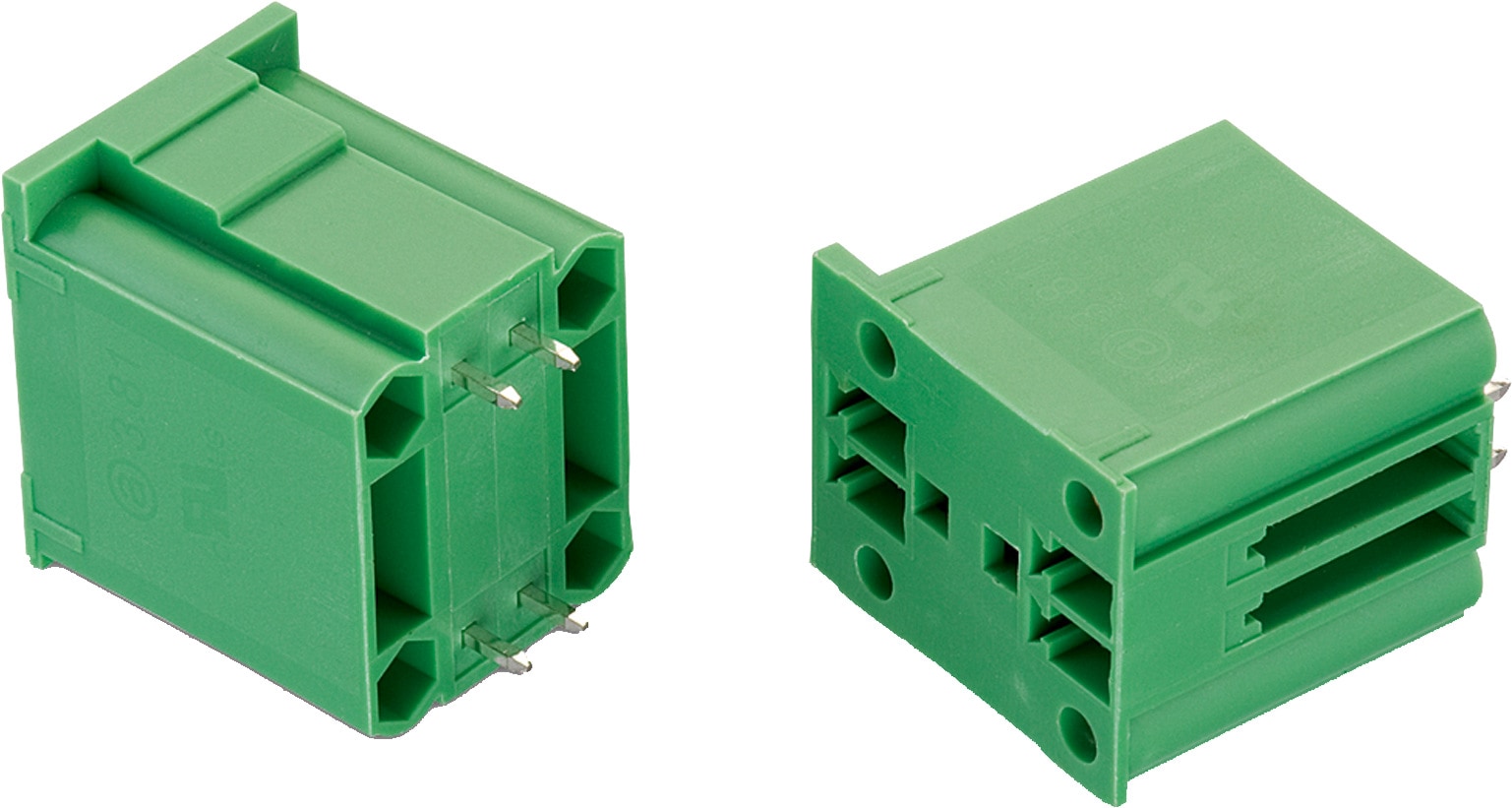

WR-TBL Series 3303 - 3.81 mm Double Level Vertical Male PCB Header with Flanges & Nut Type | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	10 A
I_R[cULus]	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691330300004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691330300004_1 (rev1).pdf \| 276.9 KB IGS 691330300004 (rev1).igs \| 2.2 MB STP 691330300004 (rev1).stp \| 888.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical
691330300006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691330300006_1 (rev1).pdf \| 331.6 KB IGS 691330300006 (rev1).igs \| 2.9 MB STP 691330300006 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical
691330300008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691330300008_1 (rev1).pdf \| 393.3 KB IGS 691330300008 (rev1).igs \| 3.8 MB STP 691330300008 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical
691330300010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691330300010_1 (rev1).pdf \| 449.1 KB IGS 691330300010 (rev1).igs \| 4.4 MB STP 691330300010 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Vertical
691330300012	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691330300012_1 (rev1).pdf \| 506.9 KB IGS 691330300012 (rev1).iges \| 5.6 MB IGS 691330300012 (rev1).igs \| 5.3 MB STP 691330300012 (rev1).stp \| 2.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Vertical
691330300016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691330300016_1 (rev1).pdf \| 626.8 KB IGS 691330300016 (rev1).igs \| 6.8 MB STP 691330300016 (rev1).stp \| 2.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Vertical

Order Code	Datasheet
691330300004	SPEC
691330300006	SPEC
691330300008	SPEC
691330300010	SPEC
691330300012	SPEC
691330300016	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
