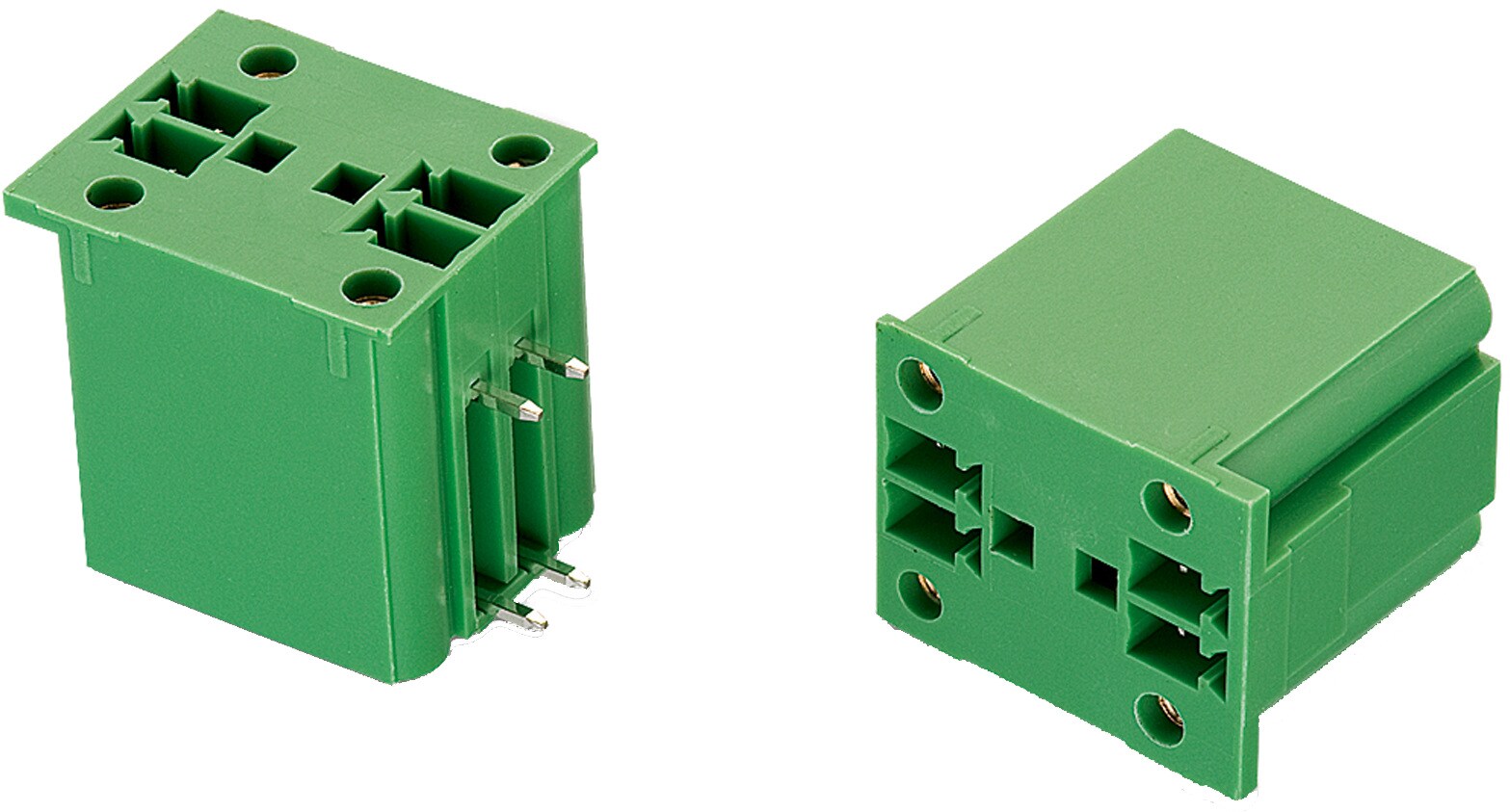

WR-TBL Series 3283 - 3.81 mm Double Level Horizontal Male PCB Header with Flanges & Nut Type | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	10 A
I_R[cULus]	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691328310004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691328310004_1 (rev1).pdf \| 260.5 KB IGS 691328310004 (rev1).igs \| 2.6 MB STP 691328310004 (rev1).stp \| 589.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal
691328310006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691328310006_1 (rev1).pdf \| 315.2 KB IGS 691328310006 (rev1).igs \| 3.3 MB STP 691328310006 (rev1).stp \| 752.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal
691328310008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691328310008_1 (rev1).pdf \| 376.9 KB IGS 691328310008 (rev1).igs \| 4.2 MB STP 691328310008 (rev1).stp \| 957.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal
691328310010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691328310010_1 (rev1).pdf \| 432.7 KB IGS 691328310010 (rev1).igs \| 4.9 MB STP 691328310010 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Horizontal
691328310012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D Download_3D_ConTBL3_691328310012 (rev1).pdf \| 490.5 KB IGS 691328310012 (rev1).igs \| 5.7 MB STP Downloads_STP_ConTBL3_691328310012 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal
691328310016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691328310016_1 (rev1).pdf \| 610.4 KB IGS 691328310016 (rev1).igs \| 7.3 MB STP 691328310016 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Horizontal
