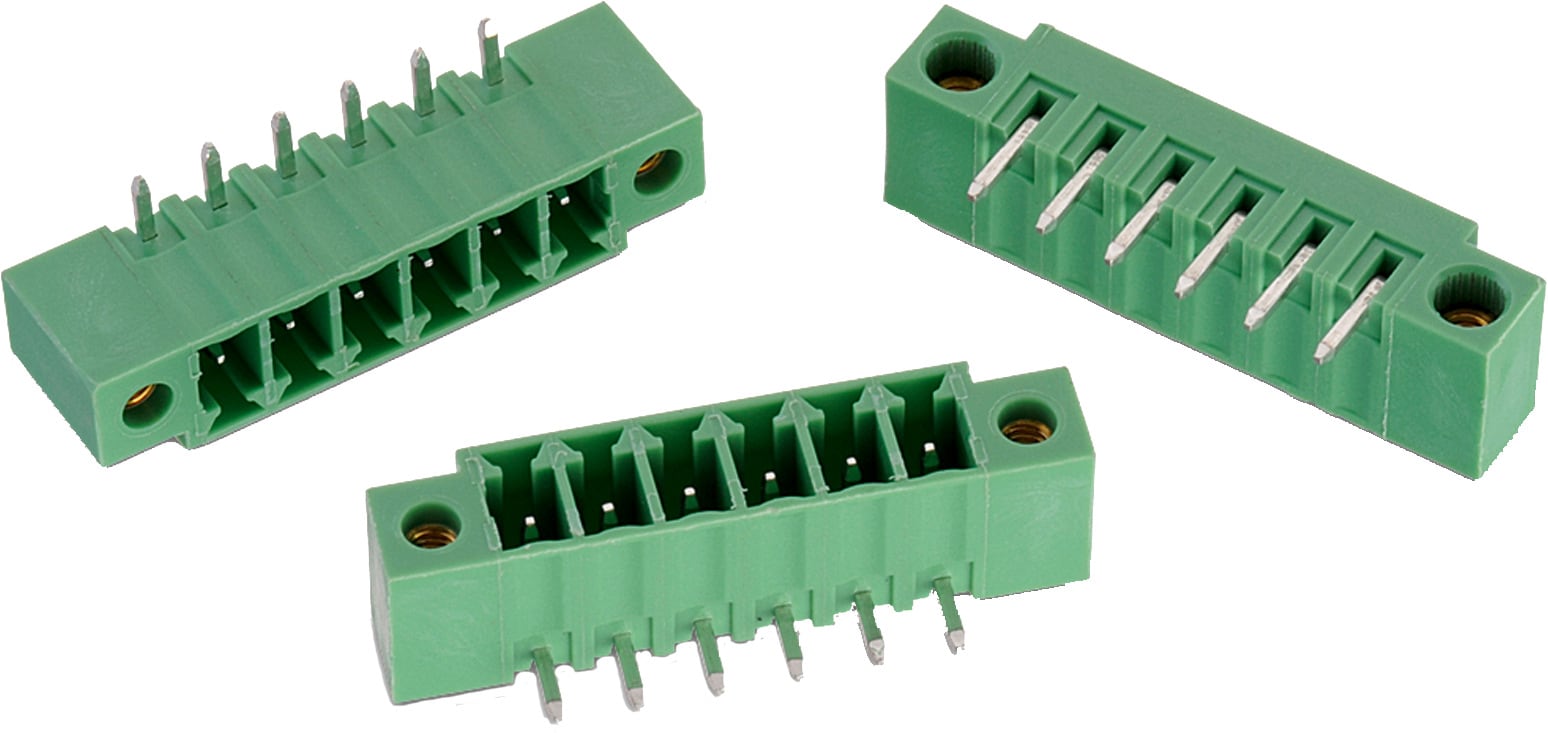

WR-TBL Series 3253 - 3.81 mm Horizontal PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	10 A; 10.5 A
I_R[cULus]	10 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
UL Approval	E315414
VDE Approval	40023195
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691325310002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691325310002_1 (rev1).pdf \| 149.1 KB IGS 691325310002 (rev1).igs \| 949.5 KB STP 691325310002 (rev1).stp \| 350.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	PCB Header	Cable	No	PCB Header
691325310003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691325310003_1 (rev1).pdf \| 173.1 KB IGS 691325310003 (rev1).igs \| 1.2 MB STP 691325310003 (rev1).stp \| 451.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	Cable	No	PCB Header
691325310004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691325310004_1 (rev1).pdf \| 200.5 KB IGS 691325310004 (rev1).igs \| 1.4 MB STP 691325310004 (rev1).stp \| 551.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	Cable	No	PCB Header
691325310005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691325310005_1 (rev1).pdf \| 219.5 KB IGS 691325310005 (rev1).igs \| 1.7 MB STP 691325310005 (rev1).stp \| 653.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	Cable	No	PCB Header
691325310006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691325310006_1 (rev1).pdf \| 241.7 KB IGS 691325310006 (rev1).igs \| 1.9 MB STP 691325310006 (rev1).stp \| 757.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	Cable	No	PCB Header
691325310007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691325310007 (rev1).pdf \| 263.6 KB IGS Downloads_IGES_691325310007 (rev1).iges \| 2.2 MB STP Downloads_STP_691325310007 (rev1).stp \| 861 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	PCB Header	Cable	No	PCB Header
691325310008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691325310008_1 (rev1).pdf \| 289.4 KB IGS 691325310008 (rev1).igs \| 2.4 MB STP 691325310008 (rev1).stp \| 965.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	PCB Header	Cable	No	PCB Header

Order Code	Datasheet
691325310002	SPEC
691325310003	SPEC
691325310004	SPEC
691325310005	SPEC
691325310006	SPEC
691325310007	SPEC
691325310008	SPEC
