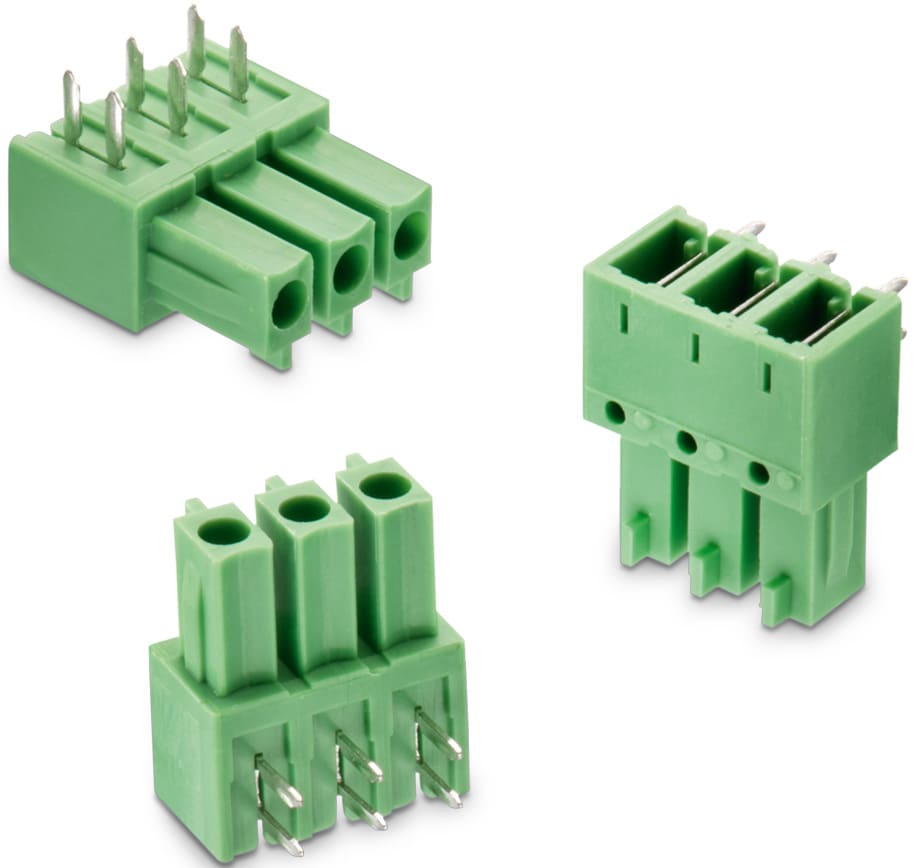

WR-TBL Series 3093 - PCB Header Reversed Gender 3.81mm pitch - Horizontal cable entry with Coding finger - THT

General Information
Operating Temperature-40 °C up to +115 °C
ComplianceRoHS
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
Electrical Properties
IR8 A
IR cULus8 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples
691309310002SPEC
6 files 2 Pluggable PCB No Horizontal691001
691309310003SPEC
6 files 3 Pluggable PCB No Horizontal
691309310004SPEC
6 files 4 Pluggable PCB No Horizontal
691309310005SPEC
6 files 5 Pluggable PCB No Horizontal
691309310006SPEC
6 files 6 Pluggable PCB No Horizontal
691309310007SPEC
6 files 7 Pluggable PCB No Horizontal
691309310008SPEC
6 files 8 Pluggable PCB No Horizontal
691309310012SPEC
6 files 12 Pluggable PCB No Horizontal
Order Code Data­sheet
691309310002SPEC
691309310003SPEC
691309310004SPEC
691309310005SPEC
691309310006SPEC
691309310007SPEC
691309310008SPEC
691309310012SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.

  • Highly customized products
  • Over 2000 standard articles
  • Available from stock without MOQ
  • Personalized modifications of standard parts for small quantities
  • Color & printing possibilities with MOQ for mass production

Personalized Modifications of Standard Terminal Blocks

Ink Jet

Printing for your terminal blocks (e.g. coding, personalization)

Coding

Installation of coding pins according to keying specification

Color Coding

For selected series according to your specifications (412B / 412MB / 413B)

Assembly

Rapid assembly of pin numbers according to your needs

Assortments
