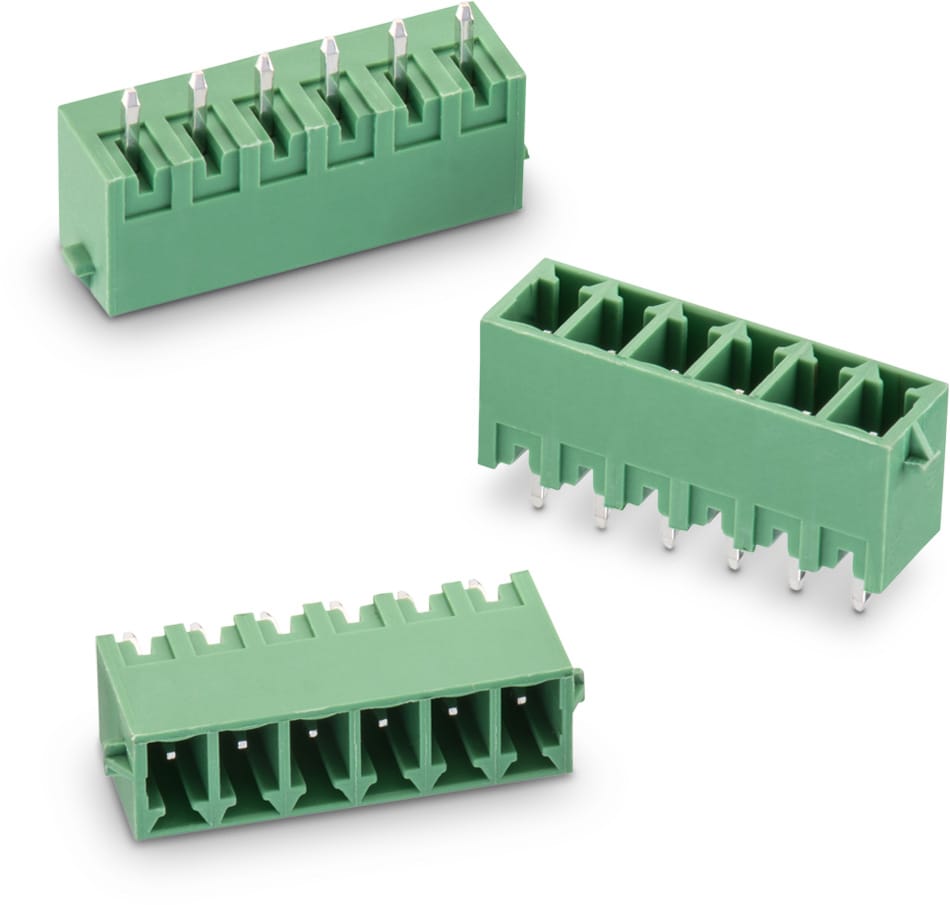

WR-TBL Series 3053 - 3.81 mm Vertical PCB Header w. Plastic Latch | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin

Electrical Properties
I_R	12 A
I_R	12 A
Working Voltage	300 V (AC)
Working Voltage [UL]	300 V (AC)
Withstanding Voltage [UL]	2500 V (AC)
Contact Resistance	20 mΩ

Certification
UL Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit
691305330002	2, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330002_1 (rev1).pdf \| 70.6 KB IGS 691305330002 (rev1).iges \| 747 KB STP 691305330002 (rev1).stp \| 301.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit 691002
691305330003	3, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330003_1 (rev1).pdf \| 93.9 KB IGS 691305330003 (rev1).iges \| 1002.9 KB STP 691305330003 (rev1).stp \| 403.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –
691305330004	4, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330004_1 (rev1).pdf \| 116.6 KB IGS 691305330004 (rev1).iges \| 1.2 MB STP 691305330004 (rev1).stp \| 505.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –
691305330005	5, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330005_1 (rev1).pdf \| 136.3 KB IGS 691305330005 (rev1).iges \| 1.5 MB STP 691305330005 (rev1).stp \| 607.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –
691305330006	6, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330006_1 (rev1).pdf \| 157.4 KB IGS 691305330006 (rev1).iges \| 1.7 MB STP 691305330006 (rev1).stp \| 711.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –
691305330007	7, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330007_1 (rev1).pdf \| 175.2 KB IGS 691305330007 (rev1).iges \| 2 MB STP 691305330007 (rev1).stp \| 816.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –
691305330008	8, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330008_1 (rev1).pdf \| 197.2 KB IGS 691305330008 (rev1).iges \| 2.3 MB STP 691305330008 (rev1).stp \| 923 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –
691305330012	12, Pluggable, PCB	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691305330012_1 (rev1).pdf \| 299.9 KB IGS 691305330012 (rev1).iges \| 3.3 MB STP 691305330012 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
