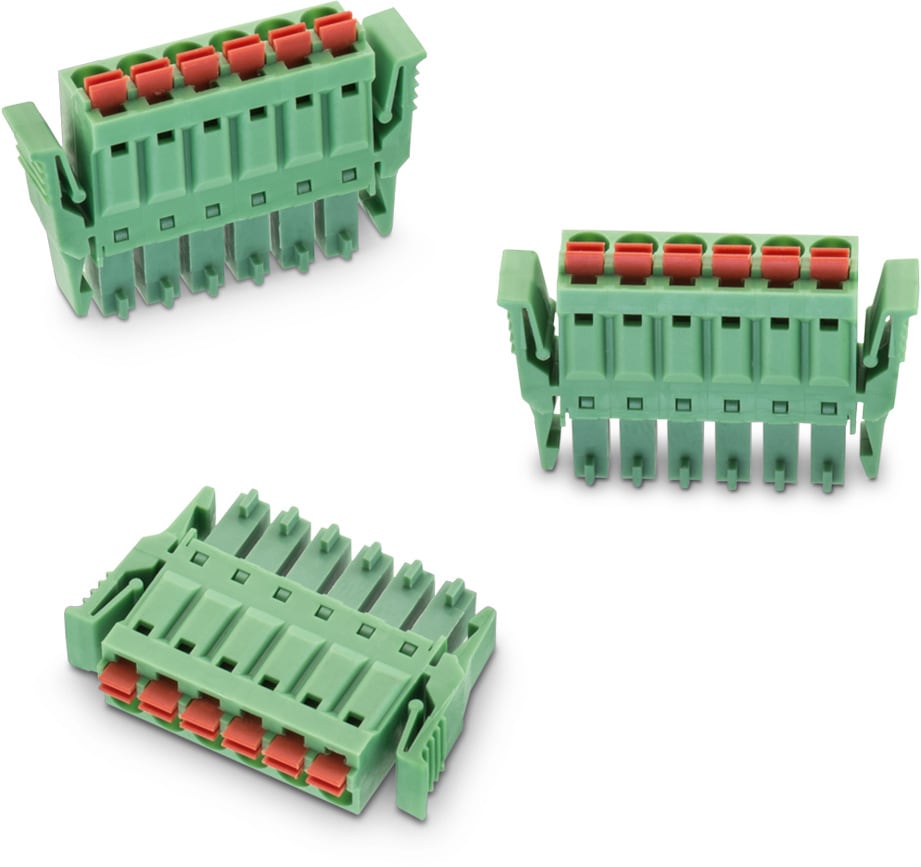

WR-TBL Series 3043 - 3.81 mm Vertical Entry Plug Screwless 1.3 mm 2 Cable | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Wire Guard Material	Copper Alloy with Tin over Nickel
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
I_R[cULus]	12 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	1600 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	24 to 16 (AWG)
Solid Wire Section (Metric)	0.2 to 1 (mm²)
Stranded Wire Section (AWG)	24 to 16 (AWG)
Stranded Wire Section (Metric)	0.2 to 1 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691304330002	SPEC	3 files CAD files ZIP 3D 691304330002_1 (rev1).pdf \| 258.3 KB IGS 691304330002 (rev1).iges \| 3.8 MB STP 691304330002 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	691002
691304330003	SPEC	3 files CAD files ZIP 3D 691304330003_1 (rev1).pdf \| 318.3 KB IGS 691304330003 (rev1).iges \| 4.7 MB STP 691304330003 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–
691304330004	SPEC	3 files CAD files ZIP 3D 691304330004_1 (rev1).pdf \| 378.3 KB IGS 691304330004 (rev1).iges \| 5.6 MB STP 691304330004 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–
691304330005	SPEC	3 files CAD files ZIP 3D 691304330005_1 (rev1).pdf \| 436.5 KB IGS 691304330005 (rev1).iges \| 6.5 MB STP 691304330005 (rev1).stp \| 2.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–
691304330006	SPEC	3 files CAD files ZIP 3D 691304330006_1 (rev1).pdf \| 502.9 KB IGS 691304330006 (rev1).iges \| 7.5 MB STP 691304330006 (rev1).stp \| 2.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–
691304330007	SPEC	3 files CAD files ZIP 3D 691304330007_1 (rev1).pdf \| 563.4 KB IGS 691304330007 (rev1).iges \| 8.4 MB STP 691304330007 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–
691304330008	SPEC	3 files CAD files ZIP 3D 691304330008_1 (rev1).pdf \| 622.5 KB IGS 691304330008 (rev1).iges \| 9.2 MB STP 691304330008 (rev1).stp \| 3.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–
691304330012	SPEC	3 files CAD files ZIP 3D 691304330012_1 (rev1).pdf \| 856.9 KB IGS 691304330012 (rev1).iges \| 12.9 MB STP 691304330012 (rev1).stp \| 4.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Plug Screwless Push In	Cable	No	Vertical	24 to 16 (AWG) 0.2 to 1 (mm²)	–

Order Code	Datasheet
691304330002	SPEC
691304330003	SPEC
691304330004	SPEC
691304330005	SPEC
691304330006	SPEC
691304330007	SPEC
691304330008	SPEC
691304330012	SPEC
