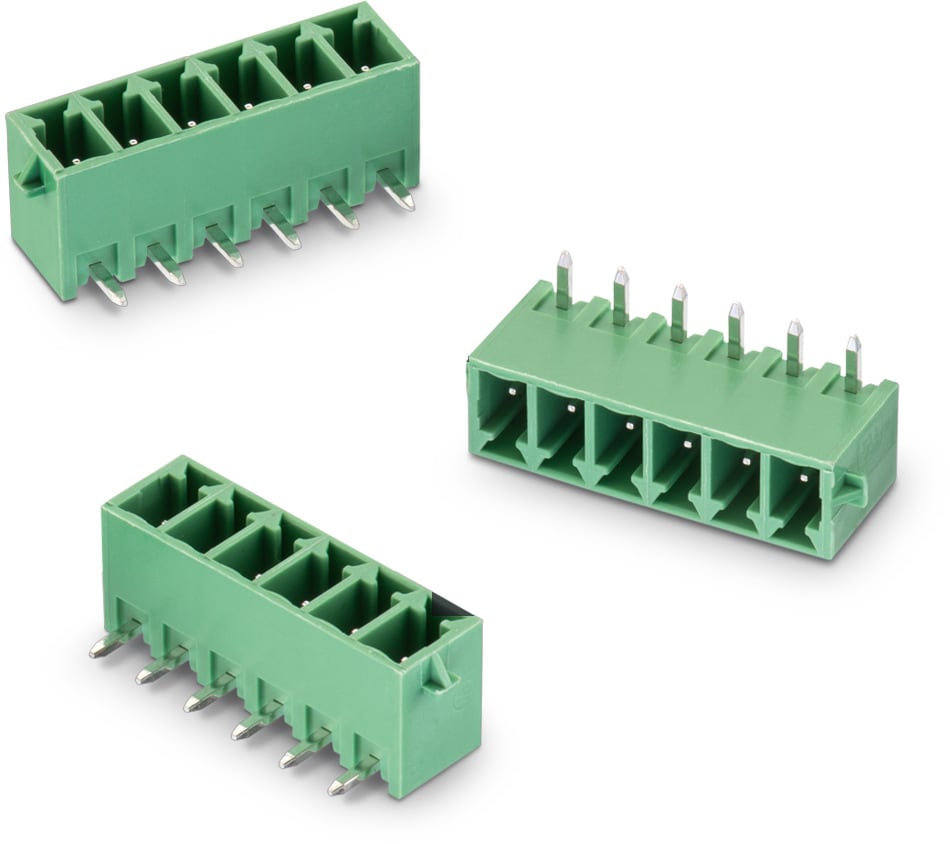

WR-TBL Series 3053 - 3.81 mm Horizontal PCB Header w. Plastic Latch | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin

Electrical Properties
I_R	12 A
I_R	12 A
I_R[cULus]	12 A
Working Voltage	300 V (AC)
Working Voltage [UL]	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [UL]	2500 V (AC)
Contact Resistance	20 mΩ

Certification
UL Approval	E315414

Application Notes

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691305340002	SPEC2, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340002_1 (rev1).pdf \| 72.3 KB IGS 691305340002 (rev1).iges \| 768.6 KB STP 691305340002 (rev1).stp \| 309.3 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins2	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit 691002	–Check availability
	691305340003	SPEC3, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340003_1 (rev1).pdf \| 95.7 KB IGS 691305340003 (rev1).iges \| 1 MB STP 691305340003 (rev1).stp \| 410.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins3	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
	691305340004	SPEC4, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340004_1 (rev1).pdf \| 118.3 KB IGS 691305340004 (rev1).iges \| 1.3 MB STP 691305340004 (rev1).stp \| 512.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins4	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
	691305340005	SPEC5, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340005_1 (rev1).pdf \| 138.5 KB IGS 691305340005 (rev1).iges \| 1.5 MB STP 691305340005 (rev1).stp \| 615 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins5	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
	691305340006	SPEC6, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340006_1 (rev1).pdf \| 159.2 KB IGS 691305340006 (rev1).iges \| 1.8 MB STP 691305340006 (rev1).stp \| 719.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins6	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
	691305340007	SPEC7, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340007_1 (rev1).pdf \| 177 KB IGS 691305340007 (rev1).iges \| 2 MB STP 691305340007 (rev1).stp \| 824.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins7	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
	691305340008	SPEC8, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340008_1 (rev1).pdf \| 199 KB IGS 691305340008 (rev1).iges \| 2.3 MB STP 691305340008 (rev1).stp \| 929.8 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins8	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability
	691305340012	SPEC12, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26b).zip \| 377.1 MB 3D 691305340012_1 (rev1).pdf \| 301.7 KB IGS 691305340012 (rev1).iges \| 3.3 MB STP 691305340012 (rev1).stp \| 1.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins12	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
