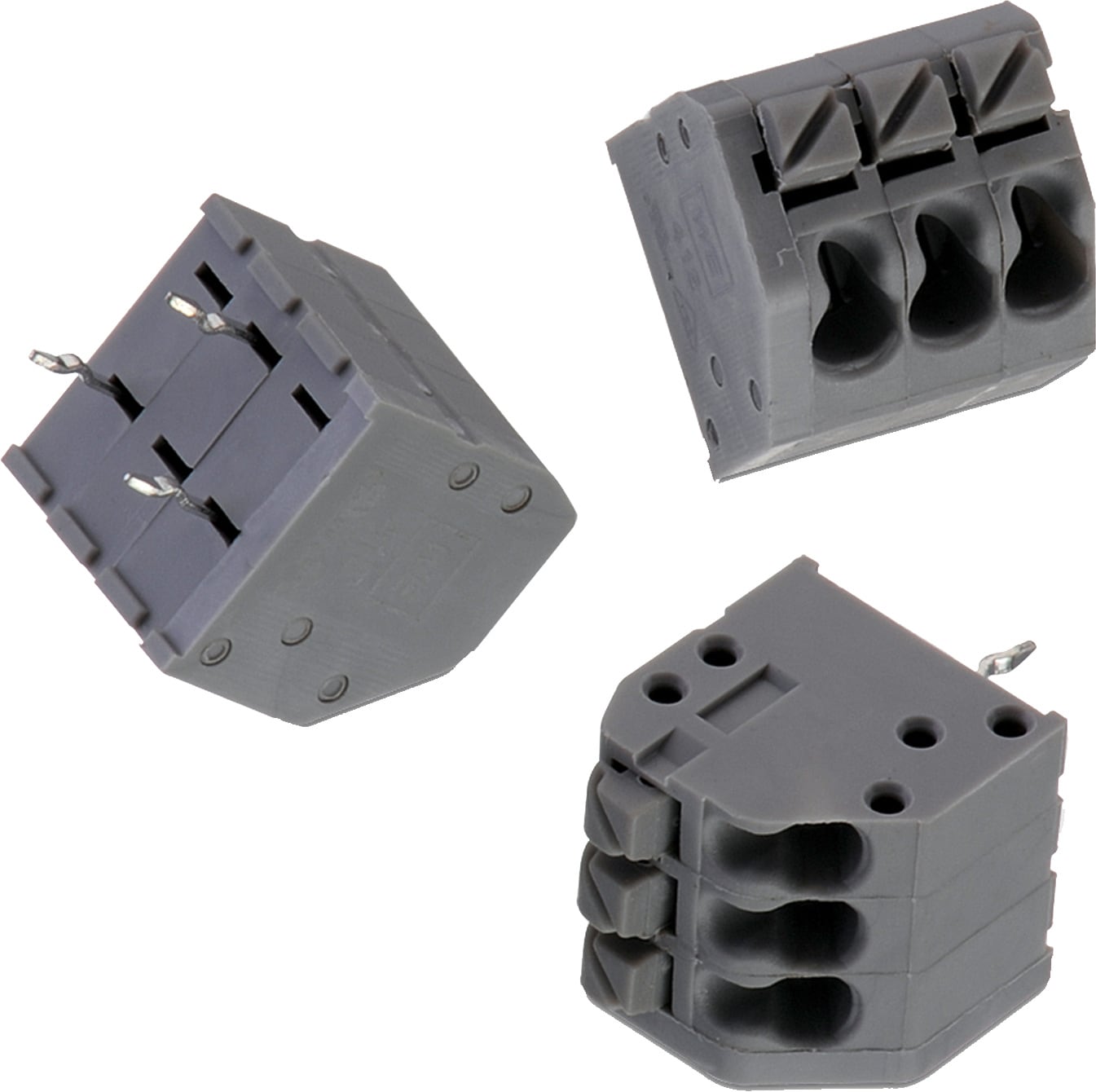

WR-TBL Series 412B - 3.50 mm Screwless 45° Entry - 2.1 mm 2 Wires | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Contact Plating	Tin

Electrical Properties
I_R[cULus]	6 A
I_R[VDE]	2 A
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	7.5 up to 8.5 (mm)

Wire Properties
Solid Wire Section (AWG)	14 to 20 (AWG)
Solid Wire Section (Metric)	2.08 to 0.518 (mm²)
Stranded Wire Section (AWG)	14 to 20 (AWG)
Stranded Wire Section (Metric)	2.08 to 0.518 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40036145

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691412120002B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120002B (rev1).pdf \| 155.5 KB IGS Download_IGES_691412120002B (rev1).iges \| 1.4 MB STP Download_STP_691412120002B (rev1).stp \| 536 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	691001
691412120003B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120003B (rev1).pdf \| 156.3 KB IGS Download_IGES_691412120003B (rev1).iges \| 1.4 MB STP Download_STP_691412120003B (rev1).stp \| 536.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	612690 691001
691412120004B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120004B (rev1).pdf \| 157.1 KB IGS Download_IGES_691412120004B (rev1).iges \| 1.4 MB STP 691412120004B (rev1).stp \| 537.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120005B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120005B (rev1).pdf \| 157.9 KB IGS Download_IGES_691412120005B (rev1).iges \| 1.4 MB STP 691412120005B (rev1).stp \| 538.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120006B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120006B (rev1).pdf \| 158.7 KB IGS Download_IGES_691412120006B (rev1).iges \| 1.4 MB STP 691412120006B (rev1).stp \| 539.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120007B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120007B (rev1).pdf \| 159.5 KB IGS Download_IGES_691412120007B (rev1).iges \| 1.4 MB STP 691412120007B (rev1).stp \| 540 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120008B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120008B (rev1).pdf \| 160.3 KB IGS Download_IGES_691412120008B (rev1).iges \| 1.4 MB STP 691412120008B (rev1).stp \| 540.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120009B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120009B (rev1).pdf \| 161.1 KB IGS Download_IGES_691412120009B (rev1).iges \| 1.4 MB STP 691412120009B (rev1).stp \| 541.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120010B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120010B (rev1).pdf \| 161.9 KB IGS Download_IGES_691412120010B (rev1).iges \| 1.4 MB STP 691412120010B (rev1).stp \| 542.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120011B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120011B (rev1).pdf \| 162.7 KB IGS Download_IGES_691412120011B (rev1).iges \| 1.4 MB STP 691412120011B (rev1).stp \| 543.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120012B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120012B (rev1).pdf \| 163.5 KB IGS Download_IGES_691412120012B (rev1).iges \| 1.4 MB STP 691412120012B (rev1).stp \| 544 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
691412120013B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Spring Clamp (rev25a).IntLib \| 37.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_691412120013B (rev1).pdf \| 164.4 KB IGS Download_IGES_691412120013B (rev1).iges \| 1.4 MB STP 691412120013B (rev1).stp \| 544.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	13	Screwless	PCB	No	45°	14 to 20 (AWG) 2.08 to 0.518 (mm²)	–
