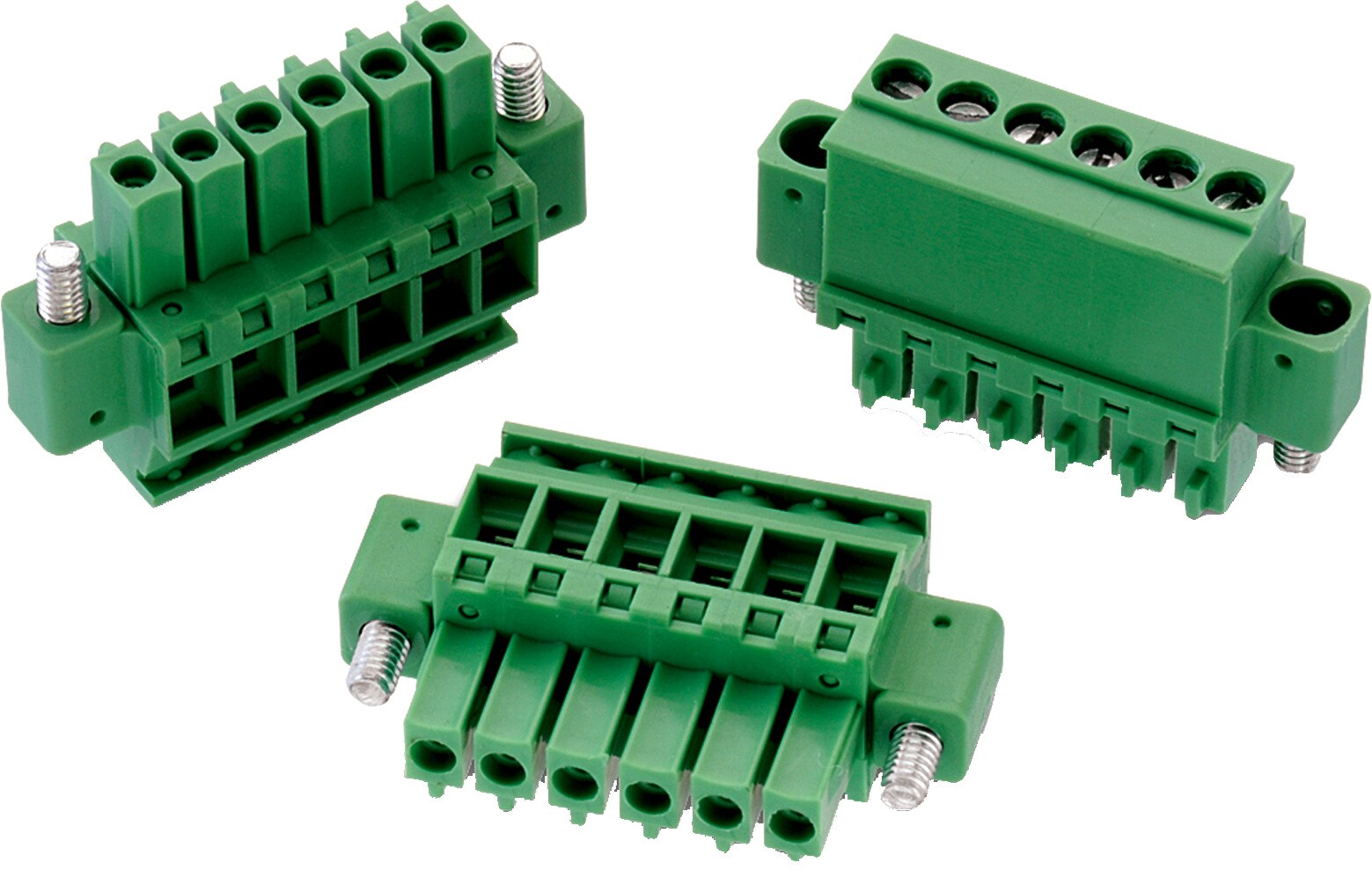

WR-TBL Series 3671 - 3.50 mm Horizontal with Flanges and hook on back Side

Kind Properties
Pitch 3.5 mm
Material Properties
Insulator Material PA66
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Terminal Screw Material Steel
Terminal Screw Plating Zinc
Wire Guard Material Phosphor Bronze
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 8 A
IR VDE 10 A
Working Voltage 300 V (AC)
Working Voltage [cULus] 300 V (AC)
Working Voltage [VDE] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Withstanding Voltage [VDE] 2500 V (AC)
Contact Resistance [cULus] 20 mΩ
Contact Resistance [VDE] 20 mΩ
Mechanical Properties
Wire Strip Length 6 up to 7 (mm)
Screw M2.5
Wire Properties
Solid Wire Section (AWG) 16 to 26 (AWG)
Solid Wire Section (Metric) 1.31 to 0.129 (mm²)
Stranded Wire Section (AWG) 16 to 26 (AWG)
Stranded Wire Section (Metric) 1.31 to 0.129 (mm²)
Certification
cULus Approval E315414
VDE Approval 40023402

Products

Order Code Data­sheet Downloads Application PCB/Cable/Panel Modularity Type Pins Wire Section Samples
691367110002
STE 3D IGS Pluggable Cable No Horizontal 2 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110003
STE 3D IGS Pluggable Cable No Horizontal 3 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110004
STE 3D IGS Pluggable Cable No Horizontal 4 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110005
STE 3D IGS Pluggable Cable No Horizontal 5 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110006
STE 3D IGS Pluggable Cable No Horizontal 6 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110008
STE 3D IGS Pluggable Cable No Horizontal 8 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110007
IGE STE 3D Pluggable Cable No Horizontal 7 16 to 26 (AWG) 1.31 to 0.129 (mm²)
691367110012
IGE STE 3D Pluggable Cable No Horizontal 12 16 to 26 (AWG) 1.31 to 0.129 (mm²)
Order Code Data­sheet
691367110002
691367110003
691367110004
691367110005
691367110006
691367110008
691367110007
691367110012
