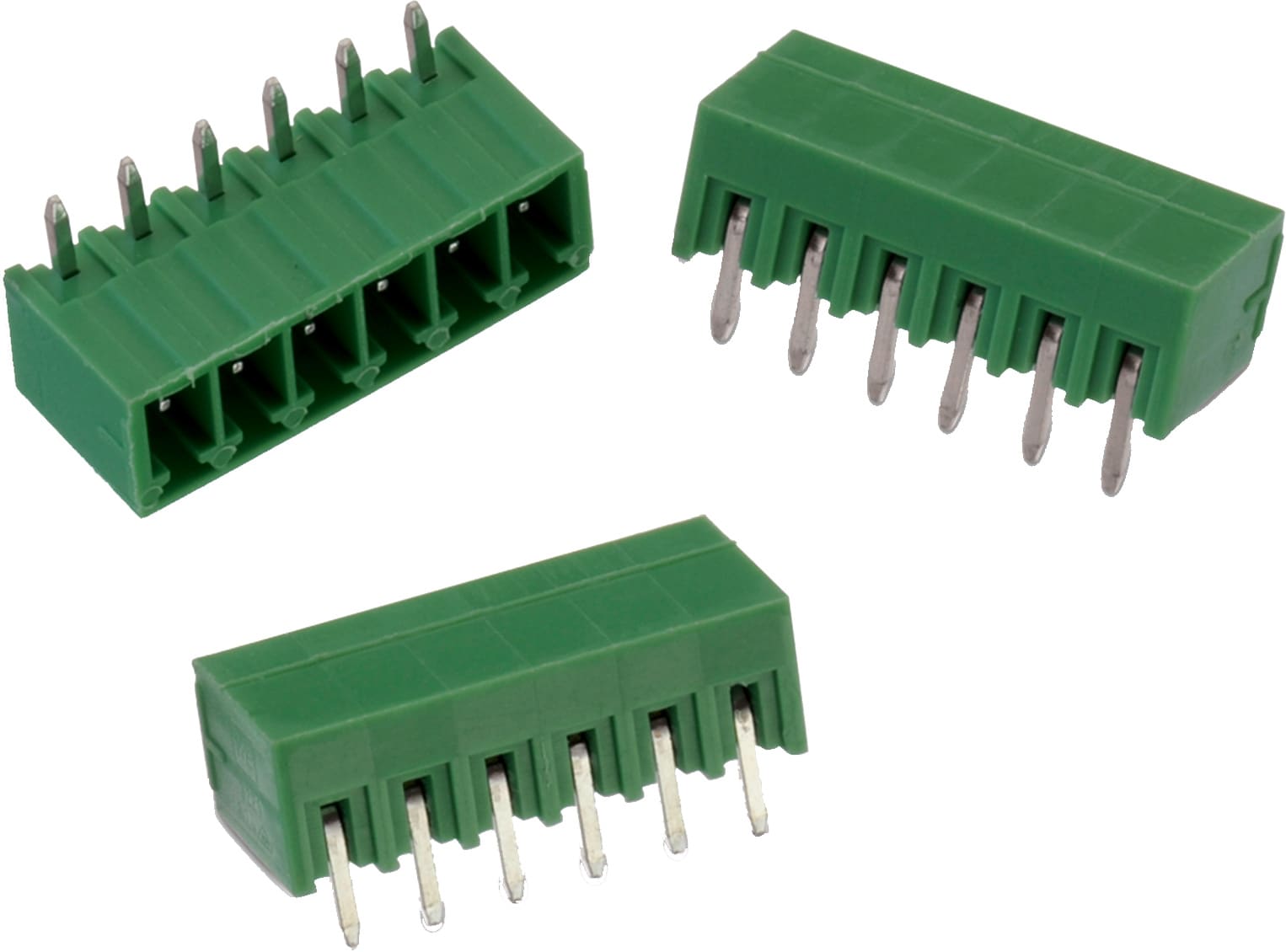

WR-TBL Series 3221 - 3.50 mm Horizontal PCB Header | Electromechanical Components

Characteristics

Reference Designs
RD041 Design of a Single Pair Ethernet System with Power over Data Lines (SPoE)

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	10 A; 10.5 A
I_R[cULus]	10 A
I_R[VDE]	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
UL Approval	E315414
VDE Approval	40023195
Glow Wire Approval	Conform [IEC 60335-1]

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit
691322110002	2, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691322110002_1 (rev1).pdf \| 70.6 KB IGS 691322110002 (rev1).iges \| 698.9 KB STP 691322110002 (rev1).stp \| 282.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –
691322110003	3, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691322110003_1 (rev1).pdf \| 94.5 KB IGS 691322110003 (rev1).iges \| 942.4 KB STP 691322110003 (rev1).stp \| 377.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit 691002
691322110004	4, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691322110004_1 (rev1).pdf \| 116.4 KB IGS 691322110004 (rev1).iges \| 1.2 MB STP 691322110004 (rev1).stp \| 472.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –
691322110005	5, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691322110005_1 (rev1).pdf \| 138.1 KB IGS 691322110005 (rev1).iges \| 1.4 MB STP 691322110005 (rev1).stp \| 567.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –
691322110006	6, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691322110006_1 (rev1).pdf \| 157 KB IGS 691322110006 (rev1).iges \| 1.6 MB STP 691322110006 (rev1).stp \| 666.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –
691322110007	7, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691322110007 (rev1).pdf \| 176.2 KB IGS Download_IGES_691322110007 (rev1).iges \| 1.9 MB STP Download_STP_691322110007 (rev1).stp \| 764.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –
691322110008	8, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691322110008_1 (rev1).pdf \| 191 KB IGS 691322110008 (rev1).iges \| 2.1 MB STP 691322110008 (rev1).stp \| 863.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –
691322110012	12, PCB Header, Cable	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691322110012 (rev1).pdf \| 279.4 KB IGS Download_IGES_691322110012 (rev1).iges \| 3.1 MB STP Download_STP_691322110012 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelCable	ModularityNo	TypePCB Header	Design Kit –

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
