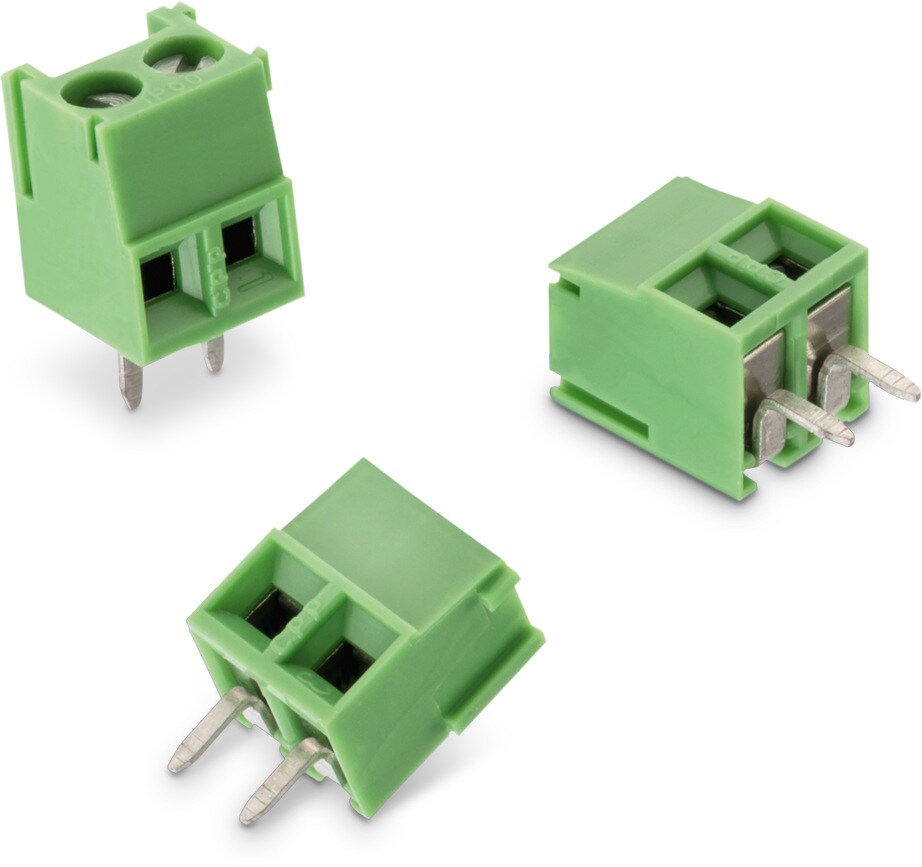

WR-TBL Series 2141 - 3.50 mm Horiz. Entry Modular

Kind Properties
Pitch3.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorGreen
Contact MaterialBrass
Contact PlatingCopper over Zinc
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialBrass
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length5 up to 6 (mm)
ScrewM2
Certification
cULus ApprovalE315414
Packaging Properties
PackagingBox

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Design Kit Samples
691214110002SPEC
6 files 2 Rising Cage Clamp PCB Yes Horizontal 24 to 16 (AWG) 0.205 to 1.31 (mm²) 10
691214110003SPEC
6 files 3 Rising Cage Clamp PCB Yes Horizontal 24 to 16 (AWG) 0.205 to 1.31 (mm²) 10691001
Order Code Data­sheet
691214110002SPEC
691214110003SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
