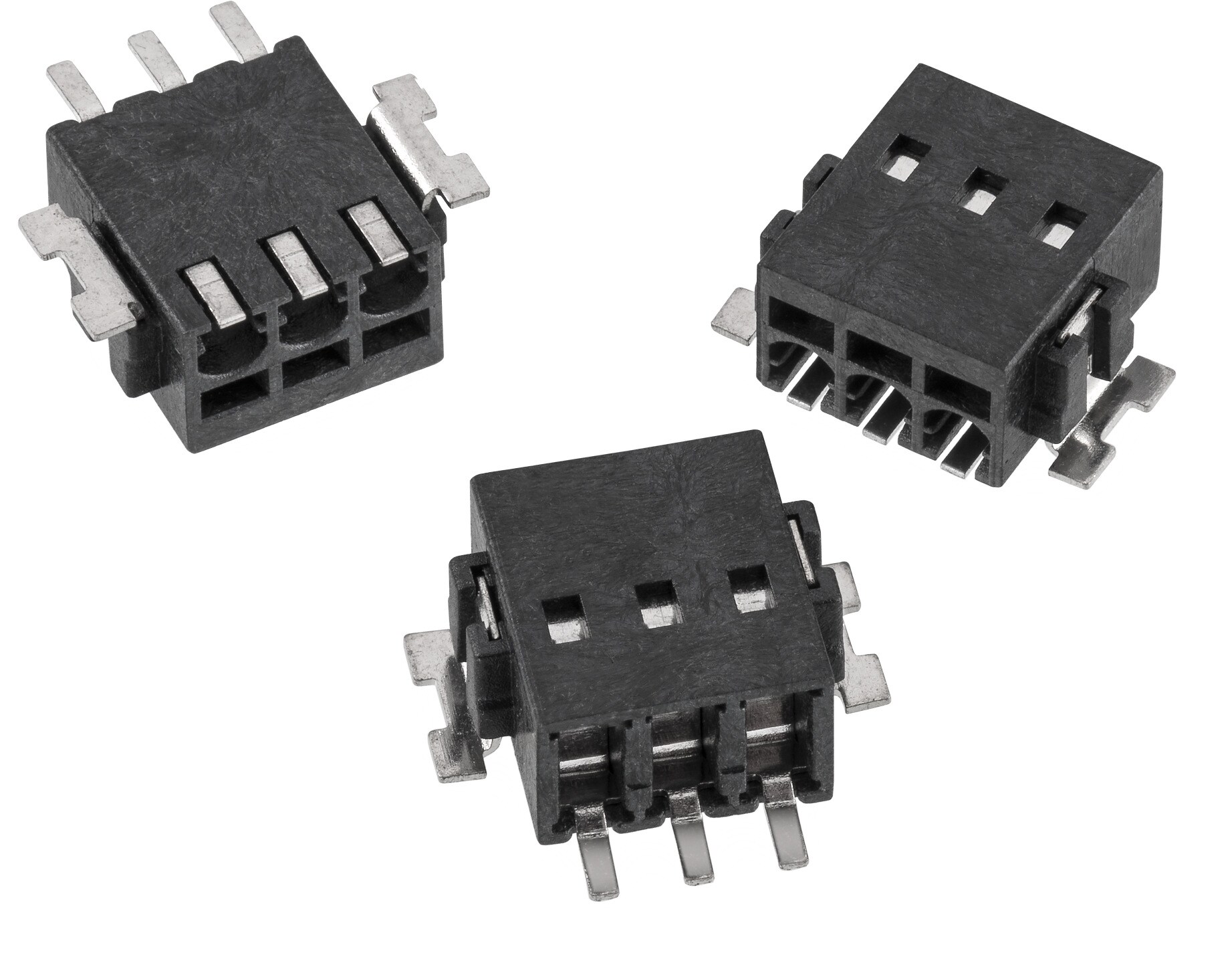

WR-TBL Series 8050 - 2.50 mm Screwless SMT

General Information
Operating Temperature-45 °C up to +130 °C
ComplianceLead free / RoHS
Pitch2.5 mm
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialBrass
Contact PlatingTin over Nickel
Spring MaterialBrass
Pin MaterialBrass
Pin PlatingTin over Nickel
Electrical Properties
IR UL6 A
IR cULus3 A
Working Voltage [UL]300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [UL]1600 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance20 mΩ
Contact Resistance [UL]20 mΩ
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
Wire Properties
Solid Wire Section (AWG)24 to 20 (AWG)
Solid Wire Section (Metric)0.2 to 0.5 (mm²)
Stranded Wire Gauge Tin Dipped (AWG)24 to 20 (AWG)
Stranded Wire Section Tin Dipped (Metric)0.2 to 0.5 (mm²)
Certification
cULus ApprovalE323964
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691805010302SPEC
6 files 2 Screwless Push In PCB No Horizontal 24 to 20 (AWG) 0.2 to 0.5 (mm²)691001
691805010303SPEC
6 files 3 Screwless Push In PCB No Horizontal 24 to 20 (AWG) 0.2 to 0.5 (mm²)
Order Code Data­sheet
691805010302SPEC
691805010303SPEC
