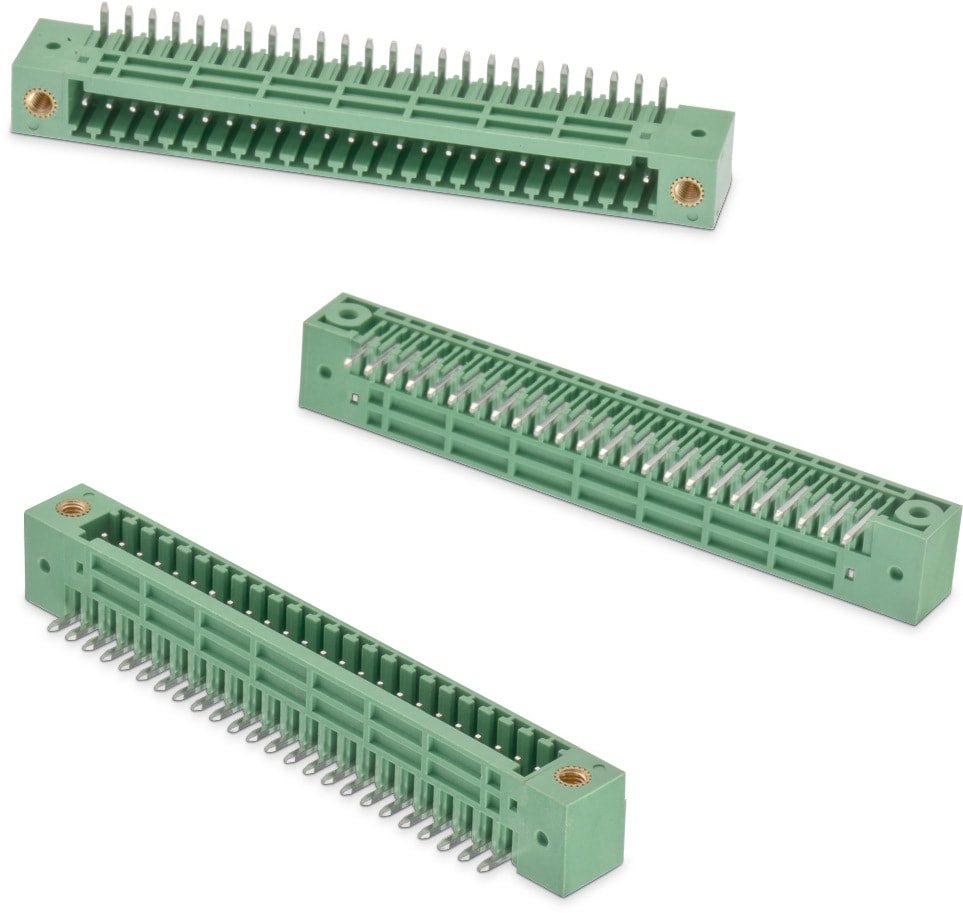

WR-TBL Series 382 - 2.50 mm Horizontal PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	2.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Type	Stamped
Pin Material	Copper Alloy
Pin Plating	Tin over Nickel

Electrical Properties
I_R	4 A
I_R[cULus]	4 A
Working Voltage	160 V (AC)
Working Voltage [cULus]	150 V (AC)
Withstanding Voltage	1320 V (AC)
Withstanding Voltage [cULus]	1000 V (AC)
Contact Resistance	20 mΩ
R_C [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Reset all

	Order Code	Datasheet	Downloads	Status	Pins	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	691382040002	SPEC2, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040002 (rev1).pdf \| 127.3 KB IGS Download_IGES_691382040002 (rev1).iges \| 1.1 MB STP 691382040002 (rev1).stp \| 403.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins2	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability
	691382040003	SPEC3, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040003 (rev1).pdf \| 159.8 KB IGS Download_IGES_691382040003 (rev1).iges \| 1.5 MB STP 691382040003 (rev1).stp \| 561 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins3	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit 691002	–Check availability
	691382040004	SPEC4, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040004 (rev1).pdf \| 189.8 KB IGS Download_IGES_691382040004 (rev1).iges \| 1.7 MB STP 691382040004 (rev1).stp \| 681.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins4	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability
	691382040005	SPEC5, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040005 (rev1).pdf \| 210.3 KB IGS Download_IGES_691382040005 (rev1).iges \| 2 MB STP 691382040005 (rev1).stp \| 803.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins5	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability
	691382040006	SPEC6, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040006 (rev1).pdf \| 229.7 KB IGS Download_IGES_691382040006 (rev1).iges \| 2.4 MB STP 691382040006 (rev1).stp \| 533.8 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins6	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability
	691382040007	SPEC7, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040007 (rev1).pdf \| 249.5 KB IGS Download_IGES_691382040007 (rev1).iges \| 2.7 MB STP Download_STP_691382040007 (rev1).stp \| 1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins7	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability
	691382040008	SPEC8, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040008 (rev1).pdf \| 272.2 KB IGS Download_IGES_691382040008 (rev1).iges \| 3 MB STP 691382040008 (rev1).stp \| 668.3 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins8	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability
	691382040012	SPEC12, PCB Header, PCB	Availability –	Downloads7 files ALT Altium_WR-TBL_Pluggable Connector (rev26b).IntLib \| 118.9 MB CDS Cadence_WR-TBL (rev26c).zip \| 436.4 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev26a).lbr \| 4.8 MB KIC KiCad_WR-TBL (rev26c).zip \| 369.6 MB 3D 3D_691382040012 (rev1).pdf \| 371.4 KB IGS Download_IGES_691382040012 (rev1).iges \| 4.2 MB STP Download_STP_691382040012 (rev1).stp \| 1.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Pins12	ApplicationPCB Header	PCB/Cable/PanelPCB	ModularityNo	TypeHorizontal plug entry	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
