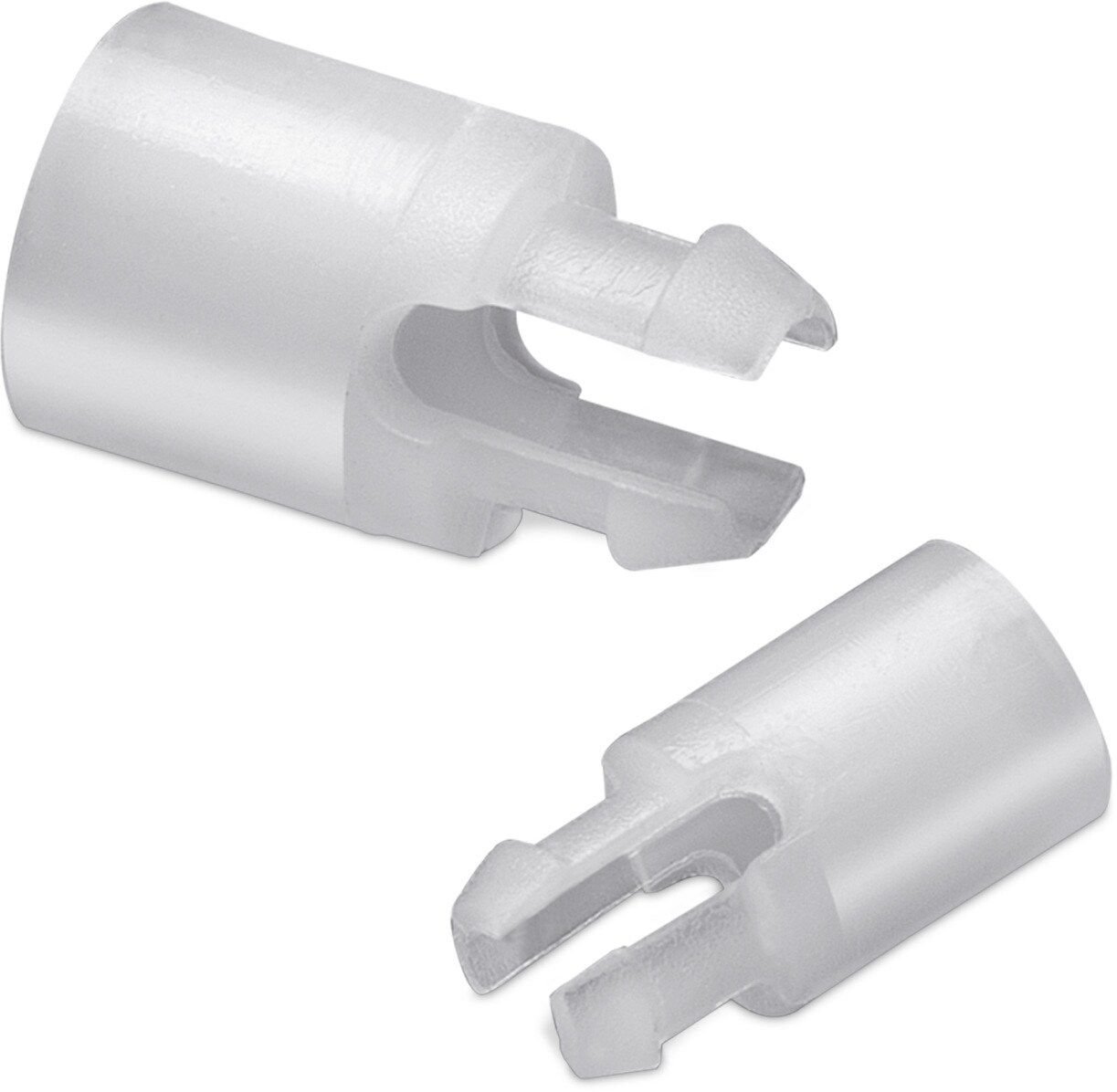

WA-SNSR Self-Retaining Spacer

Applications

The clip is used to keep the part in position while fastening
An ideal solution for panels where little space is available

General Information
Material	PA66
Color	Natural
Flammability Rating	UL94 V-2
Operating Temperature	-30 °C up to +85 °C

Products

Order Code	Datasheet	Downloads	L (mm)	f (mm)	Board	Design Kit
702911000	SPEC	3 files CAD files ZIP 3D 3D_702911000 (rev1).pdf \| 55.7 KB IGS Download_IGS_702911000 (rev1).igs \| 210.6 KB STP Download_STP_702911000 (rev1).stp \| 37.3 KB Download all 3 files as zip archive ZIP	2	3	–	–
702912000	SPEC	3 files CAD files ZIP 3D 3D_702912000 (rev1).pdf \| 54.5 KB IGS Download_IGS_702912000 (rev1).igs \| 210.3 KB STP Download_STP_702912000 (rev1).stp \| 37.3 KB Download all 3 files as zip archive ZIP	2.5	3	–	–
702921000	SPEC	3 files CAD files ZIP 3D 3D_ 702921000 (rev1).pdf \| 56.3 KB IGS Downloads_IGS_702921000 (rev1).igs \| 215.6 KB STP Downloads_STEP_ 702921000 (rev1).stp \| 39.9 KB Download all 3 files as zip archive ZIP	2.5	4	–	–
702913000	SPEC	3 files CAD files ZIP 3D 3D_702913000 (rev1).pdf \| 47.7 KB IGS Downloads_IGS_702913000 (rev1).igs \| 210.8 KB STP Downloads_STEP_702913000 (rev1).stp \| 68.3 KB Download all 3 files as zip archive ZIP	3	3	–	–
702922000	SPEC	3 files CAD files ZIP 3D 3D_702922000 (rev1).pdf \| 57 KB IGS Download_IGS_702922000 (rev1).igs \| 215.6 KB STP Download_STP_702922000 (rev1).stp \| 75.5 KB Download all 3 files as zip archive ZIP	3	4	–	–
702914000	SPEC	3 files CAD files ZIP 3D 3D_702914000 (rev1).pdf \| 51.8 KB IGS Download_IGS_702914000 (rev1).igs \| 210.6 KB STP Download_STP_702914000 (rev1).stp \| 37.3 KB Download all 3 files as zip archive ZIP	3.5	3	–	–
702915000	SPEC	3 files CAD files ZIP 3D 3D_702915000 (rev1).pdf \| 49.4 KB IGS Downloads_IGS_702915000 (rev1).igs \| 210.3 KB STP Downloads_STEP_702915000 (rev1).stp \| 37.3 KB Download all 3 files as zip archive ZIP	4	3	–	–
702923000	SPEC	3 files CAD files ZIP 3D 3D_702923000 (rev1).pdf \| 54.3 KB IGS Download_IGS_702923000 (rev1).igs \| 215.6 KB STP Download_STP_702923000 (rev1).stp \| 39.6 KB Download all 3 files as zip archive ZIP	4	4	–	–
702930000	SPEC	3 files CAD files ZIP 3D 3D_702930000 (rev1).pdf \| 58.3 KB IGS Downloads_IGS_702930000 (rev1).igs \| 217.1 KB STP Downloads_STEP_702930000 (rev1).stp \| 75.4 KB Download all 3 files as zip archive ZIP	4	4.8	–	–
702916000	SPEC	3 files CAD files ZIP 3D 3D_702916000 (rev1).pdf \| 49.5 KB IGS Download_IGS_702916000 (rev1).igs \| 210.6 KB STP Download_STP_702916000 (rev1).stp \| 37 KB Download all 3 files as zip archive ZIP	4.5	3	700990	–
702917000	SPEC	3 files CAD files ZIP 3D 3D_702917000 (rev1).pdf \| 49.6 KB IGS Downloads_IGS_702917000 (rev1).igs \| 200.4 KB STP Downloads_STEP_702917000 (rev1).stp \| 68.4 KB Download all 3 files as zip archive ZIP	5	3	–	–
702924000	SPEC	3 files CAD files ZIP 3D 3D_702924000 (rev1).pdf \| 40.9 KB IGS Download_IGS_702924000 (rev1).igs \| 215.6 KB STP Download_STP_702924000 (rev1).stp \| 39.7 KB Download all 3 files as zip archive ZIP	5	4	–	–
702925000	SPEC	3 files CAD files ZIP 3D 3D_702925000 (rev1).pdf \| 51.8 KB IGS Download_IGS_702925000 (rev1).igs \| 215.6 KB STP Download_STP_702925000 (rev1).stp \| 39.6 KB Download all 3 files as zip archive ZIP	5.4	4	–	–
702918000	SPEC	3 files CAD files ZIP 3D 3D_702918000 (rev1).pdf \| 48 KB IGS Download_IGS_702918000 (rev1).igs \| 210.6 KB STP Download_STP_702918000 (rev1).stp \| 37.3 KB Download all 3 files as zip archive ZIP	5.5	3	–	–
702919000	SPEC	3 files CAD files ZIP 3D 3D_702919000 (rev1).pdf \| 47.4 KB IGS Download_IGS_702919000 (rev1).igs \| 210.8 KB STP Download_STP_702919000 (rev1).stp \| 37.2 KB Download all 3 files as zip archive ZIP	6	3	–	–
702926000	SPEC	3 files CAD files ZIP 3D 3D_702926000 (rev1).pdf \| 51.4 KB IGS Download_IGS_702926000 (rev1).igs \| 215.6 KB STP Download_STP_702926000 (rev1).stp \| 39.6 KB Download all 3 files as zip archive ZIP	6	4	700990	–
702931000	SPEC	3 files CAD files ZIP 3D 3D_702931000 (rev1).pdf \| 55.7 KB IGS Download_IGS_702931000 (rev1).igs \| 217.1 KB STP Download_STP_702931000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	6.4	4.8	–	–
702940500	SPEC	3 files CAD files ZIP 3D 3D_702940500 (rev1).pdf \| 61.8 KB IGS Downloads_IGS_702940500 (rev1).igs \| 226 KB STP Downloads_STEP_702940500 (rev1).stp \| 86 KB Download all 3 files as zip archive ZIP	6.4	5.9	–	–
702932000	SPEC	3 files CAD files ZIP 3D 3D_702930000 (rev1).pdf \| 54.9 KB IGS Downloads_IGS_702930000 (rev1).igs \| 216.9 KB STP Download_STEP_702930000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	7.9	4.8	–	–
702941000	SPEC	3 files CAD files ZIP 3D 3D_702941000 (rev1).pdf \| 58.6 KB IGS Download_IGS_702941000 (rev1).igs \| 225.8 KB STP Download_STP_702941000 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	7.9	5.9	–	–
702910000	SPEC	3 files CAD files ZIP IGS Download_IGS_702910000 (rev1).igs \| 210.8 KB STP 3D_702910000 (rev1).stp \| 37 KB Download all 3 files as zip archive ZIP	8	3	–	–
702933000	SPEC	3 files CAD files ZIP 3D 3D_702933000 (rev1).pdf \| 52.6 KB IGS Download_IGS_702933000 (rev1).igs \| 217.1 KB STP Download_STP_702933000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	9.5	4.8	–	–
702941500	SPEC	3 files CAD files ZIP 3D 3D_702941500 (rev1).pdf \| 56.6 KB IGS Download_IGS_702941500 (rev1).igs \| 225.8 KB STP Download_STP_702941500 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	9.5	5.9	–	–
702934000	SPEC	3 files CAD files ZIP 3D 3D_702934000 (rev1).pdf \| 49.1 KB IGS Download_IGS_702934000 (rev1).igs \| 216.5 KB STP Download_STP_702934000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	11.1	4.8	–	–
702942000	SPEC	3 files CAD files ZIP 3D 3D_702942000 (rev1).pdf \| 54.8 KB IGS Downloads_IGS_702942000 (rev1).igs \| 225.4 KB STP Downloads_STEP_702942000 (rev1).stp \| 43.6 KB Download all 3 files as zip archive ZIP	11.1	5.9	–	–
702935000	SPEC	3 files CAD files ZIP 3D 3D_702935000 (rev1).pdf \| 48.1 KB IGS Download_IGS_702935000 (rev1).igs \| 216.7 KB STP Download_STP_702935000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	12.7	4.8	–	–
702942500	SPEC	3 files CAD files ZIP 3D 3D_702942500 (rev1).pdf \| 54.7 KB IGS Download_IGS_702942500 (rev1).igs \| 225.6 KB STP Download_STP_702942500 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	12.7	5.9	–	–
702935500	SPEC	3 files CAD files ZIP 3D 3D_702935500 (rev1).pdf \| 46.4 KB IGS Download_IGS_702935500 (rev1).igs \| 216.7 KB STP Download_STP_702935500 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	14.2	4.8	–	–
702936000	SPEC	3 files CAD files ZIP 3D 3D_702936000 (rev1).pdf \| 46 KB IGS Download_IGS_702936000 (rev1).igs \| 216.7 KB STP Download_STP_702936000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	15.9	4.8	700990	744998
702943000	SPEC	3 files CAD files ZIP 3D 3D_702943000 (rev1).pdf \| 52.3 KB IGS Download_IGS_702943000 (rev1).igs \| 225.6 KB STP Download_STP_702943000 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	15.9	5.9	–	–
702943500	SPEC	3 files CAD files ZIP 3D 3D_702943500 (rev1).pdf \| 48.4 KB IGS Download_IGS_702943500 (rev1).igs \| 225.7 KB STP Download_STP_702943500 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	17	5.9	–	–
702937000	SPEC	3 files CAD files ZIP 3D 3D_702937000 (rev1).pdf \| 45.3 KB IGS Download_IGS_702937000 (rev1).igs \| 216.5 KB STP Download_STP_702937000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	19.1	4.8	–	–
702944000	SPEC	3 files CAD files ZIP 3D 3D_702944000 (rev1).pdf \| 47.5 KB IGS Download_IGS_702944000 (rev1).igs \| 225.4 KB STP Download_STP_702944000 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	19.1	5.9	–	–
702938000	SPEC	3 files CAD files ZIP 3D 3D_702938000 (rev1).pdf \| 43.1 KB IGS Download_IGS_702938000 (rev1).igs \| 216.7 KB STP Download_STP_702938000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	22.2	4.8	–	–
702944500	SPEC	3 files CAD files ZIP 3D 3D_702944500 (rev1).pdf \| 45.4 KB IGS Download_IGS_702944500 (rev1).igs \| 225.7 KB STP Download_STP_702944500 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	22.2	5.9	700990	–
702939000	SPEC	3 files CAD files ZIP 3D 3D_702939000 (rev1).pdf \| 42 KB IGS Download_IGS_702939000 (rev1).igs \| 216.5 KB STP Download_STP_702939000 (rev1).stp \| 38.4 KB Download all 3 files as zip archive ZIP	25.4	4.8	–	–
702945000	SPEC	3 files CAD files ZIP 3D 3D_702945000 (rev1).pdf \| 44.7 KB IGS Downloads_IGS_702945000 (rev1).igs \| 224.3 KB STP Downloads_STEP_702945000 (rev1).stp \| 43.5 KB Download all 3 files as zip archive ZIP	25.4	5.9	–	–
