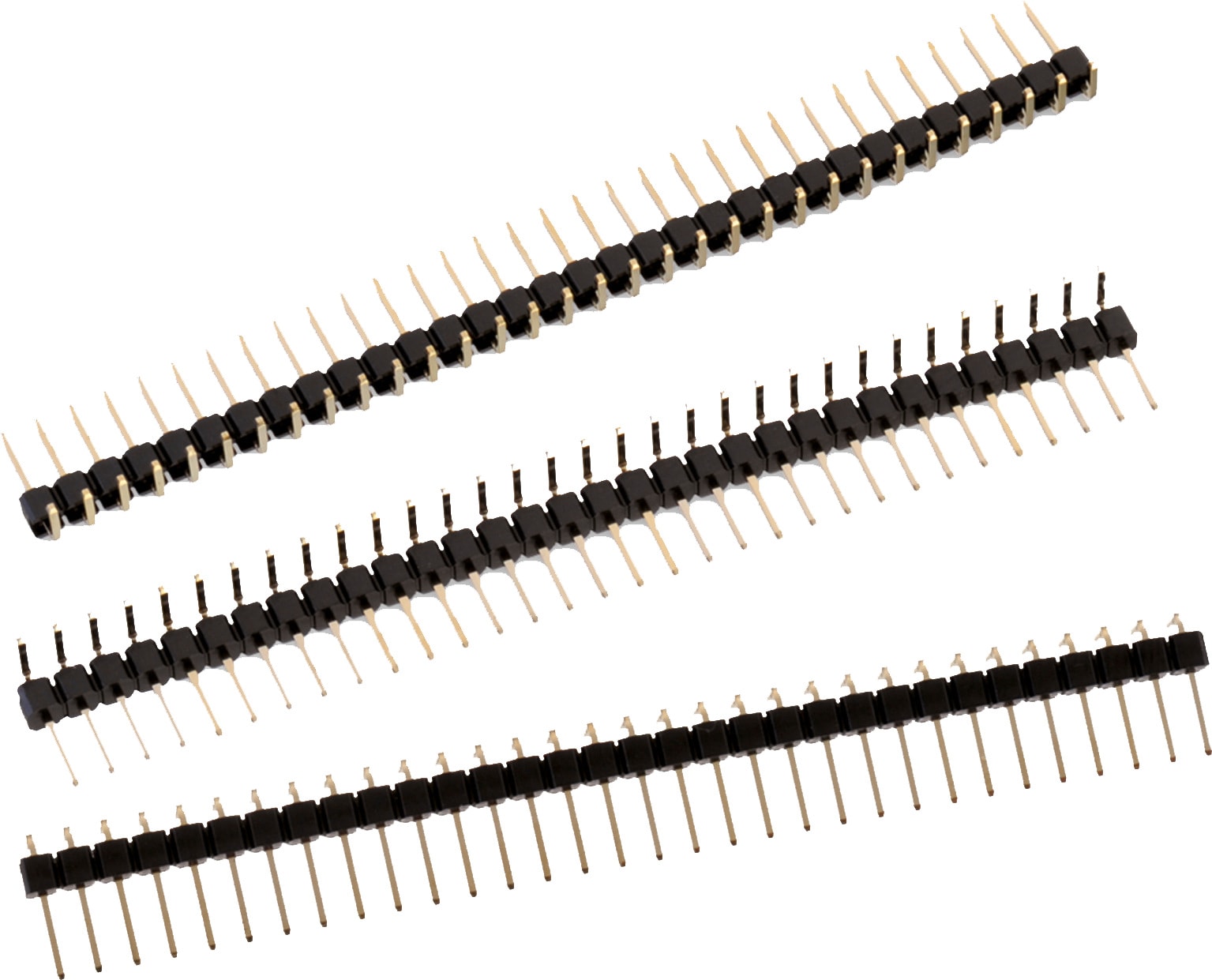

WR-PHD 2.54 mm THT Angled Pin Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	2 pcs; 3 pcs; 4 pcs; 5 pcs; 6 pcs; 7 pcs; 8 pcs; 9 pcs; 10 pcs; 12 pcs; 14 pcs; 15 pcs; 16 pcs; 18 pcs; 22 pcs; 32 pcs; 34 pcs; 36 pcs; 40 pcs

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Single
Gender	Pin Header
Type	Angled

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	61300211021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300211021_1 (rev1).pdf \| 22.8 KB IGS 61300211021 (rev1).igs \| 285.3 KB STP 61300211021 (rev1).stp \| 112.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Single	Pin Header	Angled	3	Bag	–
	61300311021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300311021_1 (rev1).pdf \| 26.8 KB IGS 61300311021 (rev1).igs \| 373.5 KB STP 61300311021 (rev1).stp \| 146.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Single	Pin Header	Angled	3	Bag	–
	61300411021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300411021_1 (rev1).pdf \| 30.9 KB IGS 61300411021 (rev1).igs \| 466.9 KB STP 61300411021 (rev1).stp \| 180.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Single	Pin Header	Angled	3	Bag	–
	61300511021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300511021_1 (rev1).pdf \| 36.3 KB IGS 61300511021 (rev1).igs \| 558.1 KB STP 61300511021 (rev1).stp \| 214.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Single	Pin Header	Angled	3	Bag	–
	61300611021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300611021_1 (rev1).pdf \| 41.4 KB IGS 61300611021 (rev1).iges \| 649.2 KB STP 61300611021 (rev1).stp \| 252.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Single	Pin Header	Angled	3	Bag	–
	61300711021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300711021_1 (rev1).pdf \| 45.8 KB IGS 61300711021 (rev1).igs \| 733.9 KB STP 61300711021 (rev1).stp \| 282.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Single	Pin Header	Angled	3	Bag	–
	61300811021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300811021_1 (rev1).pdf \| 50.3 KB IGS 61300811021 (rev1).iges \| 829 KB STP 61300811021 (rev1).stp \| 321 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Single	Pin Header	Angled	3	Bag	613001
	61300911021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61300911021_1 (rev1).pdf \| 54.7 KB IGS 61300911021 (rev1).iges \| 922.2 KB STP 61300911021 (rev1).stp \| 355.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Single	Pin Header	Angled	3	Bag	–
	61301011021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301011021_1 (rev1).pdf \| 59.1 KB IGS 61301011021 (rev1).igs \| 1011.3 KB STP 61301011021 (rev1).stp \| 384.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Single	Pin Header	Angled	3	Bag	613001
	61301211021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301211021_1 (rev1).pdf \| 68.1 KB IGS 61301211021 (rev1).igs \| 1.2 MB STP 61301211021 (rev1).stp \| 451.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Single	Pin Header	Angled	3	Bag	–
	61301411021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301411021_1 (rev1).pdf \| 77.1 KB IGS 61301411021 (rev1).igs \| 1.3 MB STP 61301411021 (rev1).stp \| 519.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Single	Pin Header	Angled	3	Bag	–
	61301511021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 3D_61301511021 (rev1).pdf \| 84.9 KB IGS IGS_61301511021 (rev1).igs \| 1.4 MB STP STP_61301511021 (rev1).stp \| 326.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	15	–	–	–	3	Bag	–
	61301611021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301611021_1 (rev1).pdf \| 86.2 KB IGS 61301611021 (rev1).iges \| 1.5 MB STP 61301611021 (rev1).stp \| 595.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Single	Pin Header	Angled	3	Bag	–
	61301811021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61301811021_1 (rev1).pdf \| 95.2 KB IGS 61301811021 (rev1).iges \| 1.7 MB STP 61301811021 (rev1).stp \| 666.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	Single	Pin Header	Angled	3	Bag	613001
	61302211021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61302211021_1 (rev1).pdf \| 113.3 KB IGS 61302211021 (rev1).iges \| 2.1 MB STP 61302211021 (rev1).stp \| 808.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	Single	Pin Header	Angled	3	Bag	–
	61303211021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61303211021_1 (rev1).pdf \| 159.2 KB IGS 61303211021 (rev1).igs \| 3 MB STP 61303211021 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	Pin Header	Angled	3	Bag	–
	61303411021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61303411021_1 (rev1).pdf \| 168.4 KB IGS 61303411021 (rev1).igs \| 3.2 MB STP 61303411021 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	34	Single	Pin Header	Angled	3	Bag	–
	61303611021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61303611021_1 (rev1).pdf \| 177.6 KB IGS 61303611021 (rev1).igs \| 3.4 MB STP 61303611021 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	36	Single	Pin Header	Angled	3	Bag	–
	61304011021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61304011021_1 (rev1).pdf \| 195.9 KB IGS 61304011021 (rev1).iges \| 3.8 MB STP 61304011021 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	Single	Pin Header	Angled	3	Bag	–

	Order Code	Datasheet
	61300211021	SPEC
	61300311021	SPEC
	61300411021	SPEC
	61300511021	SPEC
	61300611021	SPEC
	61300711021	SPEC
	61300811021	SPEC
	61300911021	SPEC
	61301011021	SPEC
	61301211021	SPEC
	61301411021	SPEC
	61301511021	SPEC
	61301611021	SPEC
	61301811021	SPEC
	61302211021	SPEC
	61303211021	SPEC
	61303411021	SPEC
	61303611021	SPEC
	61304011021	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm Socket Header

WR-PHD 2.54 mm Angled Socket Header

WR-PHD 2.54 mm Socket Header Bottom Entry

WR-PHD 2.54 mm SMT Socket Header

WR-PHD 2.54 mm Multi-Jumper Jumper with Test Point

WR-PHD 2.54 mm Jumper with Test Point & Pullback

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
