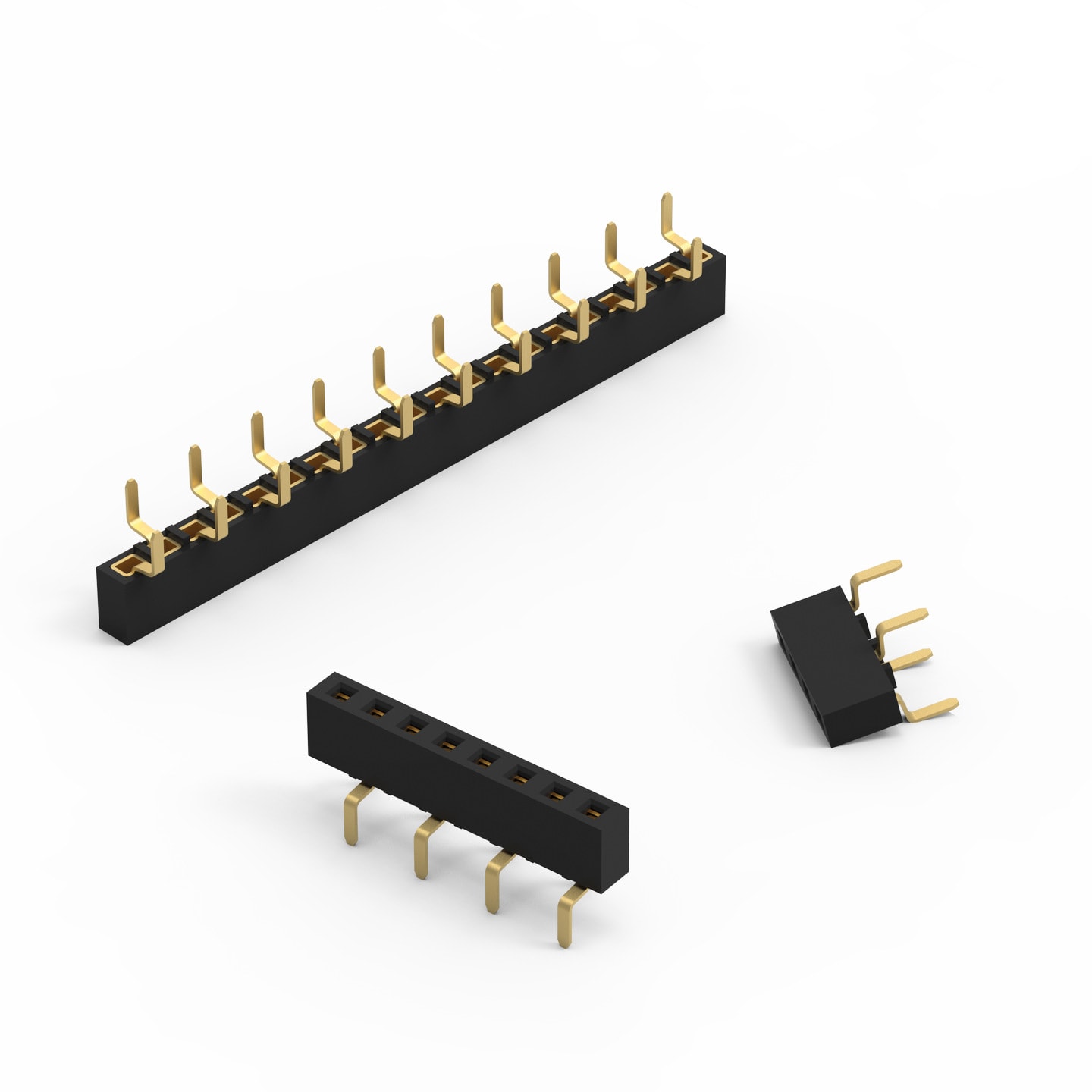

WR-PHD 2.54 mm Socket Header Bottom Entry

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4; 5; 6; 8; 10; 20

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Single
Gender	Socket Header
Type	Bottom Entry

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
61300415721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300415721_1 (rev1).pdf \| 103.2 KB IGS 61300415721 (rev1).igs \| 1.1 MB STP 61300415721 (rev1).stp \| 419 KB	4	Single	Socket Header	Bottom Entry	3	Tube	–
61300515721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300515721_1 (rev1).pdf \| 107.6 KB IGS 61300515721 (rev1).igs \| 1.2 MB STP 61300515721 (rev1).stp \| 453.3 KB	5	Single	Socket Header	Bottom Entry	3	Tube	–
61300615721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300615721_1 (rev1).pdf \| 112.8 KB IGS 61300615721 (rev1).igs \| 1.2 MB STP 61300615721 (rev1).stp \| 487.5 KB	6	Single	Socket Header	Bottom Entry	3	Tube	–
61300815721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61300815721_1 (rev1).pdf \| 121.1 KB IGS 61300815721 (rev1).igs \| 1.4 MB STP 61300815721 (rev1).stp \| 556 KB	8	Single	Socket Header	Bottom Entry	3	Tube	613001
61301015721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61301015721_1 (rev1).pdf \| 129.3 KB IGS 61301015721 (rev1).igs \| 1.6 MB STP 61301015721 (rev1).stp \| 625.4 KB	10	Single	Socket Header	Bottom Entry	3	Tube	613001
61302015721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 61302015721_1 (rev1).pdf \| 171.1 KB IGS 61302015721 (rev1).igs \| 2.4 MB STP 61302015721 (rev1).stp \| 980.8 KB	20	Single	Socket Header	Bottom Entry	3	Tube	613001

Order Code	Datasheet
61300415721	SPEC
61300515721	SPEC
61300615721	SPEC
61300815721	SPEC
61301015721	SPEC
61302015721	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm THT Angled Pin Header

WR-PHD 2.54 mm THT Board Stacker

WR-PHD 2.54 mm SMT Pin Header

WR-PHD 2.54 mm THT Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
