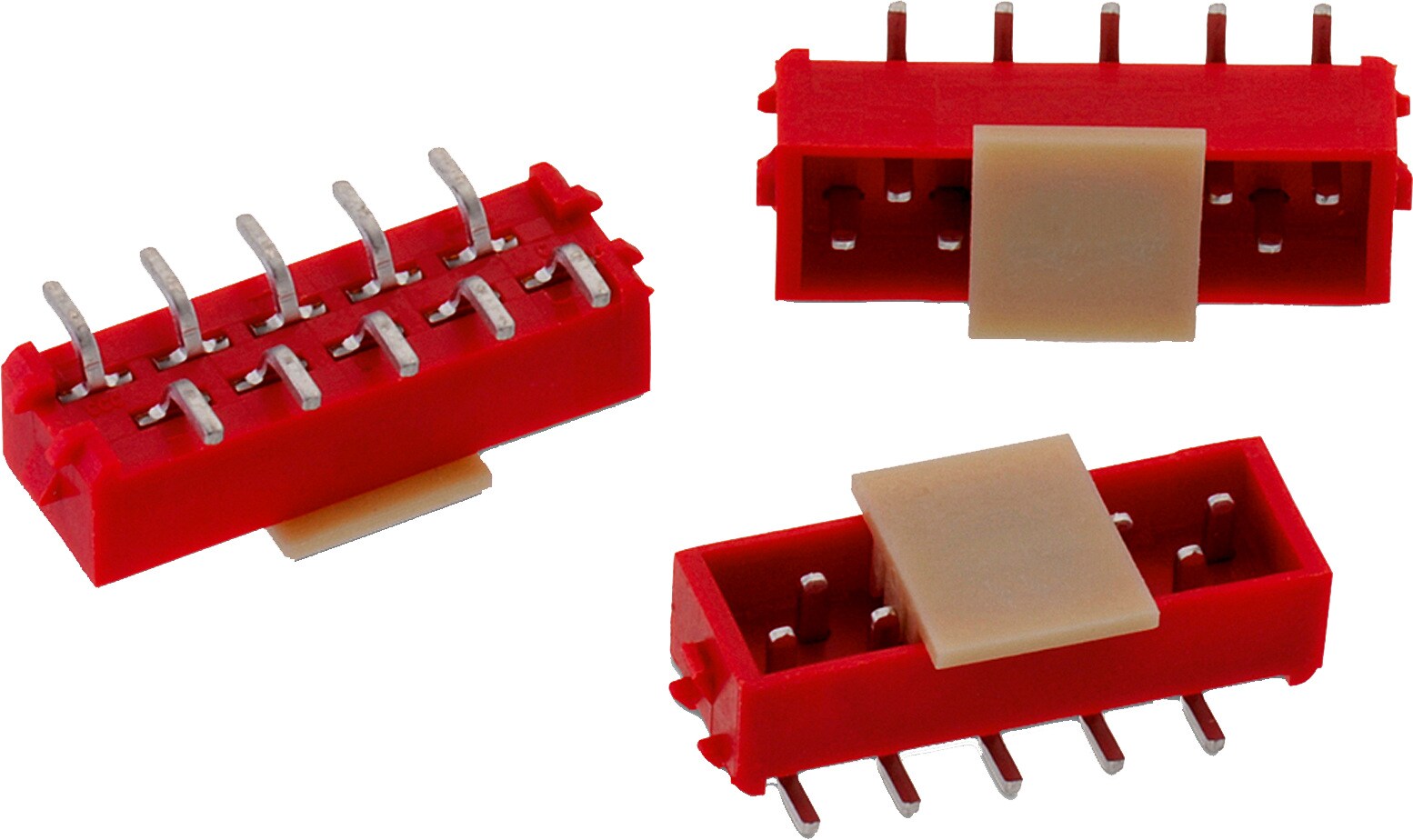

WR-MM Male SMT Connector w/o Latch & w/o Polarization

Material Properties
Insulator MaterialPA6T
Insulator Flammability RatingUL94 V-0
Insulator ColorRed
Contact MaterialPhosphor Bronze
Contact PlatingMatte Tin over Nickel
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
Pitch2.54 mm
GenderMale
Electrical Properties
Working Voltage250 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Packaging Properties
cULus ApprovalE323964
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsPinsTest Condition PGenderTypeIR
(A)
PackagingDesign Kit Samples
690357280476SPEC
6 files 4 per Row Male Straight 1.5 Tape and Reel690001
690357280676SPEC
6 files 6 per Row Male Straight 1.5 Tape and Reel690001
690357280876SPEC
6 files 8 per Row Male Straight 1.5 Tape and Reel690001
690357281076SPEC
6 files 10 per Row Male Straight 1.5 Tape and Reel612690
690001
690357281276SPEC
6 files 12 per Row Male Straight 1.5 Tape and Reel690001
690357281476SPEC
6 files 14 per Row Male Straight 1.5 Tape and Reel690001
690357281676SPEC
6 files 16 per Row Male Straight 1.5 Tape and Reel690001
690357281876SPEC
6 files 18 per Row Male Straight 1.5 Tape and Reel690001
690357282076SPEC
6 files 20 per Row Male Straight 1.5 Tape and Reel690001
690357282276SPEC
6 files 22 per Row Male Straight 1.5 Tape and Reel690001
690357282476SPEC
6 files 24 per Row Male Straight 1.5 Tape and Reel690001
690357282676SPEC
6 files 26 per Row Male Straight 1.5 Tape and Reel690001
Order Code Data­sheet
690357280476SPEC
690357280676SPEC
690357280876SPEC
690357281076SPEC
690357281276SPEC
690357281476SPEC
690357281676SPEC
690357281876SPEC
690357282076SPEC
690357282276SPEC
690357282476SPEC
690357282676SPEC
Samples
Order Code Data­sheet DownloadsPinsTest Condition PGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
