| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +85 °C |
| Compliance | Lead free / RoHS |
| Material Properties | |
|---|---|
| Insulator Material | LCP |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Stamped |
| Shielding Material | Brass |
| Shielding Plating | Nickel (Ni) |
| Electrical Properties | |
|---|---|
| Working Voltage | 125 V (AC) |
| Contact Resistance | 20 mΩ |
| RISO | 1000 MΩ |
| Packaging Properties | |
|---|---|
| Packaging | Tape and Reel |
Products
| Order Code | Datasheet | Downloads | xPxC | Type | Mount | Application System | Samples |
|---|---|---|---|---|---|---|---|

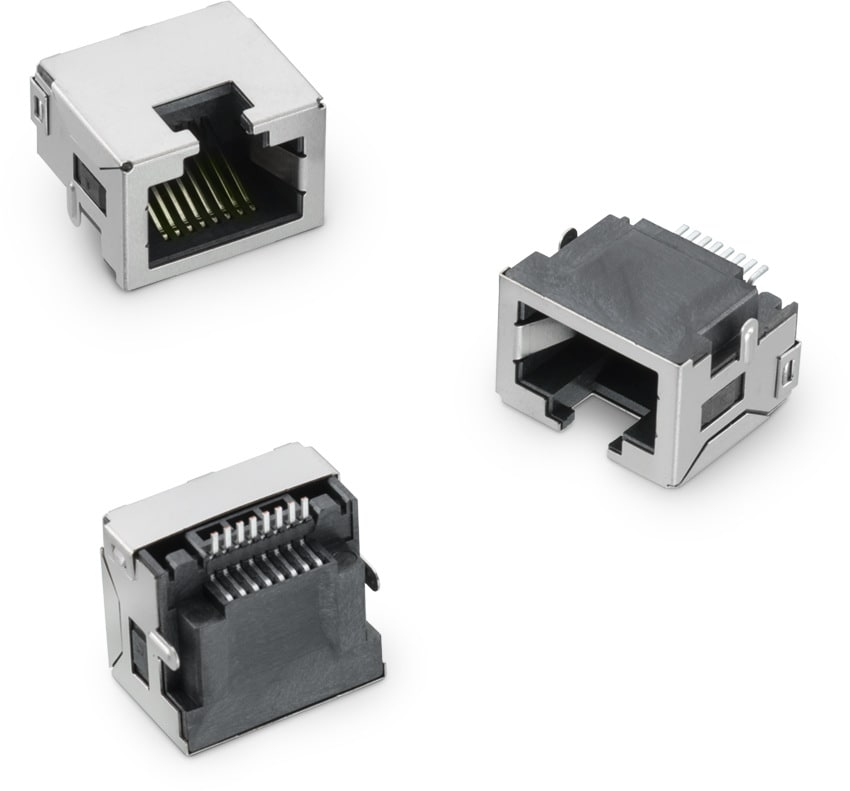

| 634108150321 | SPEC PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | 6 files | 8P8C | Right Angle | SMT | CAT 3 |
