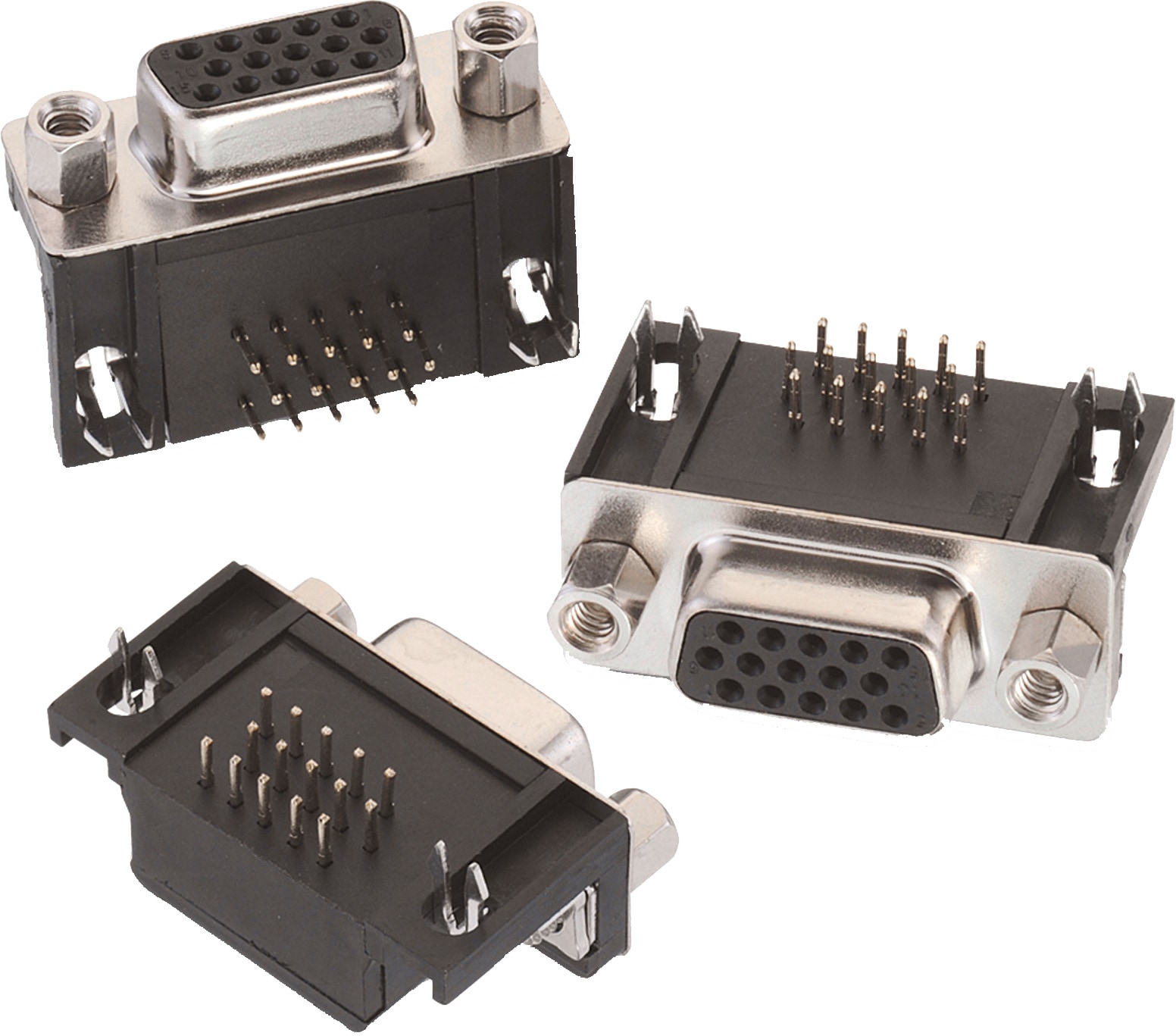

WR-DSUB Female High Density Angled PCB Connector w. Hex Screw

Kind Properties
GenderFemale
TypeAngled
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingNickel (Ni)
General Information
Operating Temperature-55 up to +105 °C
Electrical Properties
Working Voltage60 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance30 mΩ

Products

Order Code Data­sheet DownloadsPinsGenderTypeOperating TemperatureWorking Voltage
(V (AC))
Samples
618015330923SPEC
6 files 15 Female Angled -55 up to +105 °C 60
618026330923SPEC
6 files 26 Female Angled -55 up to +105 °C 60
618044330923SPEC
6 files 44 Female Angled -55 up to +105 °C 60
618062330923SPEC
6 files 62 Female Angled -55 up to +105 °C 60
Order Code Data­sheet
618015330923SPEC
618026330923SPEC
618044330923SPEC
618062330923SPEC
