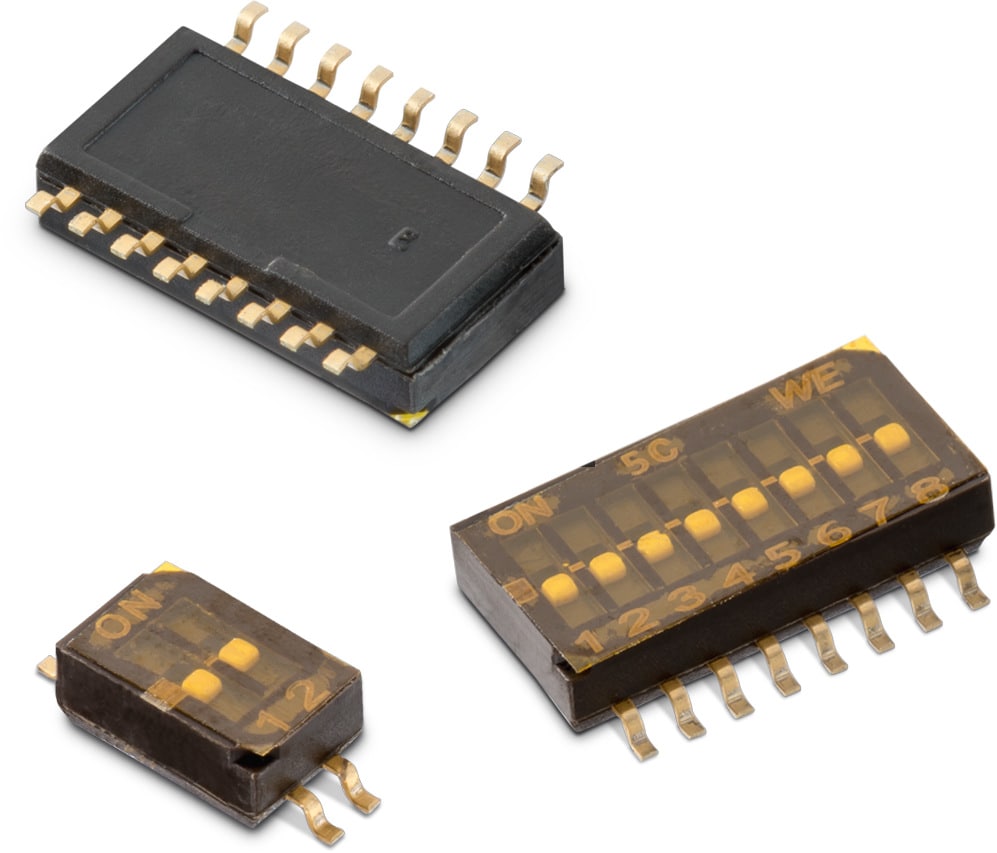

WS-DISV Small Compact SMT Flat Actuator with Top Tape 1.27 mm

Material Properties
Cover Material	PPA
Cover Flammability Rating	UL94 V-0
Base Material	PPA
Base Flammability Rating	UL94 V-0
Actuator Material	PA46
Actuator Flammability Rating	UL94 V-0
Contact Plating	Gold
Terminal Plating	Gold

Electrical Properties
I_R	100 mA
V_R	50 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	300 V (AC)

Mechanical Properties
Operation Force	500 g
Electrical Life	1000 Cycles
Actuator Type	Flat Type
Switch Position	Off

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Status	Poles	L (mm)	Vaporphase process	Design Kit	Samples
416131160801	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	5 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP IGS 416131160801 (rev1).iges \| 1.2 MB STP 416131160801 (rev1).stp \| 437.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	2.44	Yes	–
416131160802	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_416131160802 (rev1).pdf \| 99.5 KB IGS Downloads_IGES_416131160802 (rev1).iges \| 600.1 KB STP 416131160802 (rev1).stp \| 363.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	3.71	Yes	499001
416131160803	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	5 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP IGS 416131160803 (rev1).igs \| 1.6 MB STP 416131160803 (rev1).stp \| 654 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	4.98	Yes	499001
416131160804	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_416131160804 (rev1).pdf \| 146.9 KB IGS Download_IGES_416131160804 (rev1).iges \| 909.5 KB STP 416131160804 (rev1).stp \| 898.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	6.25	Yes	499001
416131160805	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	5 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP IGS 416131160805 (rev1).igs \| 2.9 MB STP 416131160805 (rev1).stp \| 1.2 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	7.52	Yes	499001
416131160806	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_416131160806 (rev1).pdf \| 186.4 KB IGS Download_IGES_416131160806 (rev1).iges \| 1.1 MB STP 416131160806 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	8.79	Yes	499001
416131160808	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_416131160808 (rev1).pdf \| 223.4 KB IGS Download_IGES_416131160808 (rev1).iges \| 1.3 MB STP 416131160808 (rev1).stp \| 1.4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	11.33	Yes	499001
416131160810	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_416131160810 (rev1).pdf \| 269.4 KB IGS Download_IGES_416131160810 (rev1).iges \| 1.6 MB STP 416131160810 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	13.87	Yes	499001
416131160812	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WS-DISV (rev24a).IntLib \| 4.8 MB CDS Cadence_WS-DISV (rev24a).zip \| 17.9 MB EAG Eagle_WS-DISV (rev24a).lbr \| 238.1 KB CAD files ZIP 3D 3D_416131160812 (rev1).pdf \| 303.2 KB IGS Download_IGES_416131160812 (rev1).iges \| 1.8 MB STP 416131160812 (rev1).stp \| 1.9 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	16.41	Yes	–

Order Code	Datasheet
416131160801	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160802	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160803	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160804	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160805	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160806	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160808	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160810	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
416131160812	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Downloads	Status	Poles	L (mm)	Vaporphase process	Design Kit	Samples
