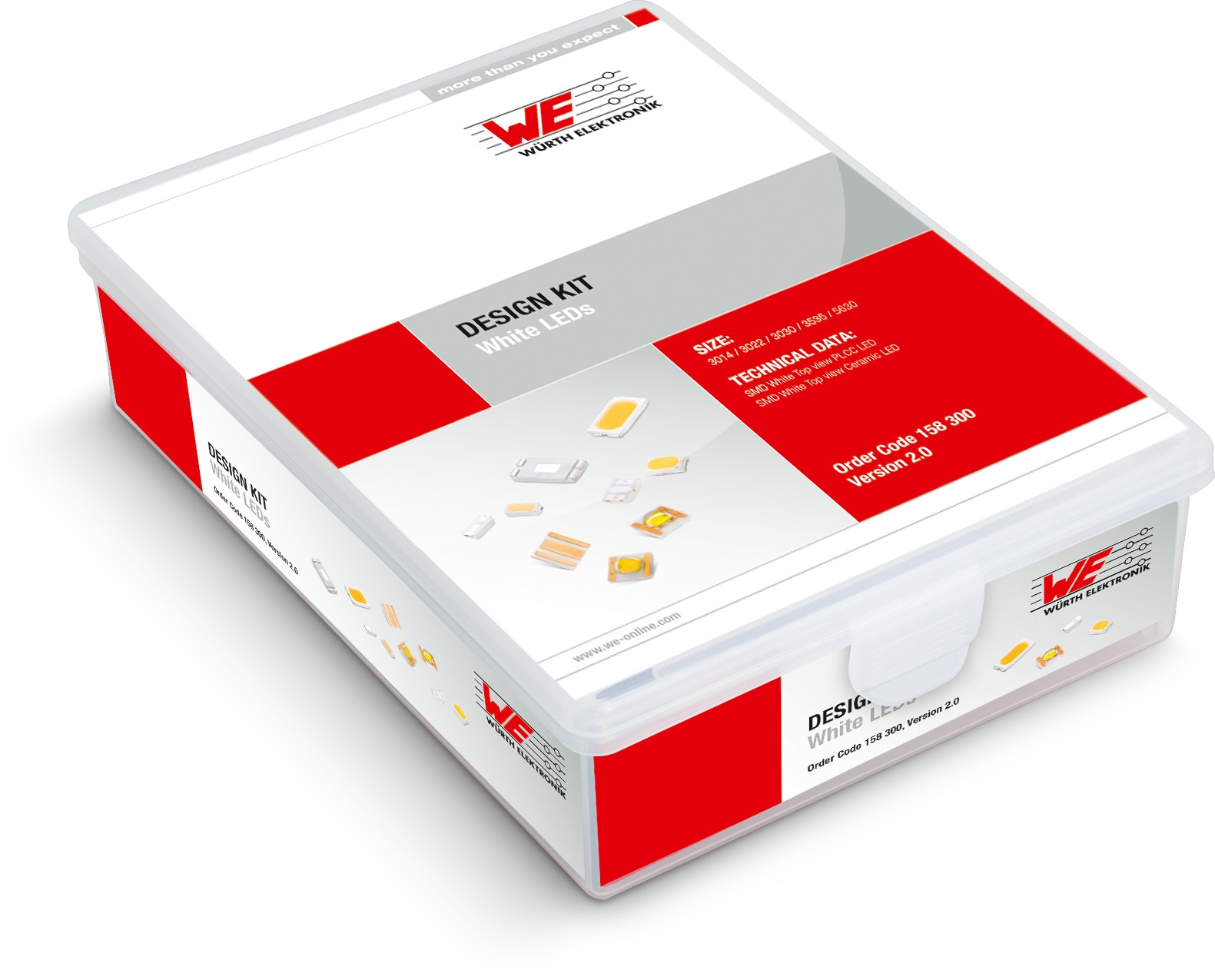

Design Kit White LEDs

Order Code 158300

Characteristics

  • Contains two matchcodes and 32 articles

Products

Order Code Data­sheet Simu­lation Downloads Product seriesCCT max.ΦV typ.
(lm)
VF typ.
(V)
50% typ.
(°)
Samples
158301227SPEC
6 files WL-SWTP SMT White Top view PLCC 2700.0 8 3 120
158301230SPEC
6 files WL-SWTP SMT White Top view PLCC 3000.0 8 3 120
158301240SPEC
6 files WL-SWTP SMT White Top view PLCC 4000.0 8.5 3 120
158301250SPEC
6 files WL-SWTP SMT White Top view PLCC 5000.0 9 3 120
158563450SPEC
6 files WL-SWTP SMT White Top view PLCC 5000.0 39 3 120
158301260SPEC
28 files WL-SWTP SMT White Top view PLCC 6000.0 9 3 120
158302227SPEC
28 files WL-SWTP SMT White Top view PLCC 20 3.2 120
158302230SPEC
28 files WL-SWTP SMT White Top view PLCC 20 3.2 120
158302240SPEC
6 files WL-SWTP SMT White Top view PLCC 22 3.2 120
158302250SPEC
6 files WL-SWTP SMT White Top view PLCC 22 3.2 120
158302260SPEC
6 files WL-SWTP SMT White Top view PLCC 22 3.2 120
158563427SPEC
28 files WL-SWTP SMT White Top view PLCC 34 3 120
158563430SPEC
6 files WL-SWTP SMT White Top view PLCC 34 3 120
158563440SPEC
28 files WL-SWTP SMT White Top view PLCC 36 3 120
158563460SPEC
28 files WL-SWTP SMT White Top view PLCC 39 3 120
158353040SPEC
6 files WL-SWTC SMT White Top view Ceramic LED 121 3.2 120
158353050SPEC
25 files WL-SWTC SMT White Top view Ceramic LED 135 3.2 120
158353060SPEC
6 files WL-SWTC SMT White Top view Ceramic LED 135 3.2 120
