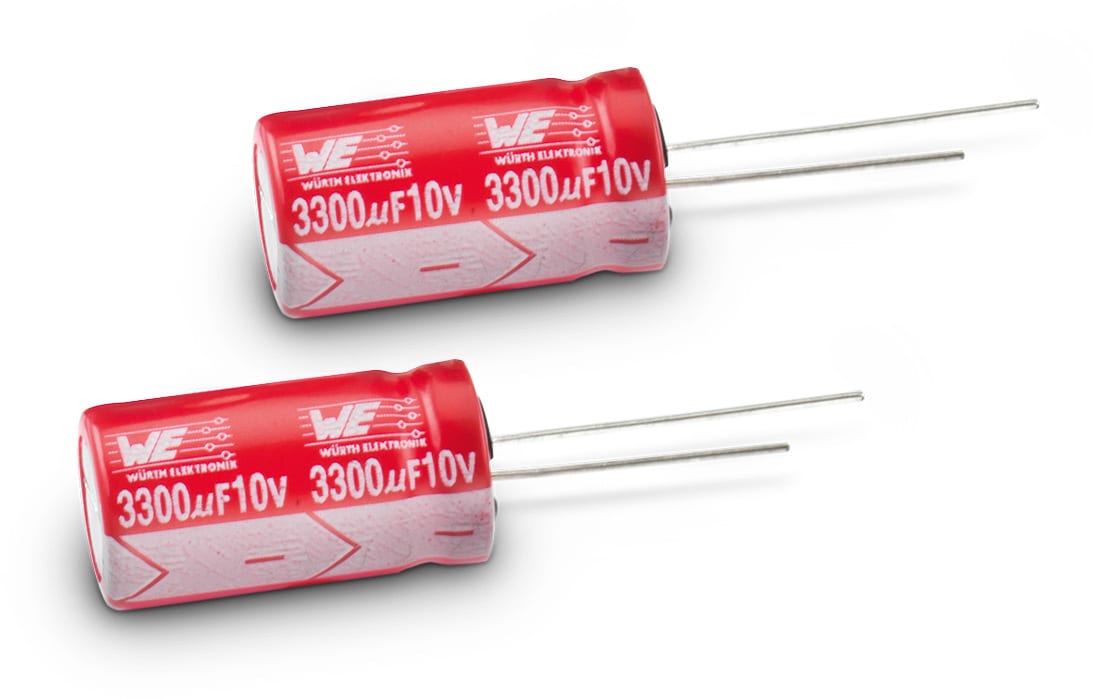

Merkmale
- Produktserie mit hoher Betriebstemperatur
- Montagetyp: THT Radial
- Kapazitätsbereich: 0.47 µF ‒ 1000 µF
- Kapazitätstoleranz: ±20 %
- Spannungsbereich (UR): 10 ‒ 350 V(DC)
-
Betriebstemperatur:
-40 °C bis +125 °C für UR ≤100 V(DC)
-25 °C bis +125 °C für UR >100 V(DC) - Lebensdauer: 1000 ‒ 2000 h @ +125 °C
- Abmessungen (DxL) in mm: 5.0 x 11.0 bis 16.0 x 31.5
- Empfohlenes Lötverfahren: Wellenlöten
Anwendung
- Applikationen mit hoher Betriebstemperatur
- Befilterung
- Glättung
- Energiespeicherung
- Kopplung
- z.B. Schaltnetzteil, AC/DC Konverter, Adapter, Ladegerät, Digitalkamera
Artikeldaten
| Artikel Nr. | Datenblatt | Simulation | Downloads | C | VR
(V (DC)) |
Endurance
(h) |
Betriebstemperatur | IRIPPLE
(mA) |
ILeak
(µA) |
DF
(%) |
P
(mm) |
Ø D
(mm) |
L
(mm) |
Technische Artikelnummer | Design Kit | Muster |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860130873001 |
|
ALT EAG CAD LTS PSP CAD | 0.47 µF | 100 | 1000 | -40 °C up to +125 °C | 14 | 3 | 7 | 2.5 | 6.3 | 11 | ATGD110R47M100DSPA4A000 | – | ||
| 860130873002 |
|
ALT EAG CAD LTS PSP CAD | 1 µF | 100 | 1000 | -40 °C up to +125 °C | 24 | 3 | 7 | 2.5 | 6.3 | 11 | ATGD110010M100DSPA4A000 | – | ||
| 860131173001 |
|
ALT EAG CAD LTS PSP CAD | 1 µF | 250 | 1000 | -25 °C up to +125 °C | 41 | 5 | 10 | 2.5 | 6.3 | 11 | ATCD110010M250DSPA4A000 | – | ||
| 860131274001 |
|
ALT EAG CAD LTS PSP CAD | 1 µF | 350 | 1000 | -25 °C up to +125 °C | 45 | 7 | 12 | 3.5 | 8 | 11.5 | ATCE115010M350DSPA7A000 | – | ||
| 860130873003 |
|
ALT EAG CAD LTS PSP CAD | 2.2 µF | 100 | 1000 | -40 °C up to +125 °C | 31 | 3 | 7 | 2.5 | 6.3 | 11 | ATGD1102R2M100DSPA4A000 | – | ||
| 860131173002 |
|
ALT EAG CAD LTS PSP CAD | 2.2 µF | 250 | 1000 | -25 °C up to +125 °C | 42 | 11 | 10 | 2.5 | 6.3 | 11 | ATCD1102R2M250DSPA4A000 | – | ||
| 860131274002 |
|
ALT EAG CAD LTS PSP CAD | 2.2 µF | 350 | 1000 | -25 °C up to +125 °C | 47 | 15.4 | 12 | 3.5 | 8 | 11.5 | ATCE1152R2M350DSPA7A000 | – | ||
| 860130873004 |
|
ALT EAG CAD LTS PSP CAD | 3.3 µF | 100 | 1000 | -40 °C up to +125 °C | 36 | 3.3 | 7 | 2.5 | 6.3 | 11 | ATGD1103R3M100DSPA4A000 | – | ||
| 860131174003 |
|
ALT EAG CAD LTS PSP CAD | 3.3 µF | 250 | 1000 | -25 °C up to +125 °C | 50 | 16.5 | 10 | 3.5 | 8 | 11.5 | ATCE1153R3M250DSPA7A000 | – | ||
| 860131275003 |
|
ALT EAG CAD LTS PSP CAD | 3.3 µF | 350 | 2000 | -25 °C up to +125 °C | 55 | 23.1 | 12 | 5 | 10 | 12.5 | ATCF1253R3M350DSPA9B000 | – | ||
| 860130873005 |
|
ALT EAG CAD LTS PSP CAD | 4.7 µF | 100 | 1000 | -40 °C up to +125 °C | 38 | 4.7 | 7 | 2.5 | 6.3 | 11 | ATGD1104R7M100DSPA4A000 | – | ||
| 860131175004 |
|
ALT EAG CAD LTS PSP CAD | 4.7 µF | 250 | 2000 | -25 °C up to +125 °C | 60 | 23.5 | 10 | 5 | 10 | 12.5 | ATCF1254R7M250DSPA9B000 | – | ||
| 860131275004 |
|
ALT EAG CAD LTS PSP CAD | 4.7 µF | 350 | 2000 | -25 °C up to +125 °C | 68 | 32.9 | 12 | 5 | 10 | 16 | ATCF1604R7M350DSPAAB000 | – | ||
| 860130673001 |
|
ALT EAG CAD LTS PSP CAD | 10 µF | 50 | 1000 | -40 °C up to +125 °C | 48 | 5 | 10 | 2.5 | 6.3 | 11 | ATGD110100M050DSPA4A000 | – | ||
| 860130874006 |
|
ALT EAG CAD LTS PSP CAD | 10 µF | 100 | 1000 | -40 °C up to +125 °C | 60 | 10 | 7 | 3.5 | 8 | 11.5 | ATGE115100M100DSPA7A000 | – | ||
| 860131175005 |
|
ALT EAG CAD LTS PSP CAD | 10 µF | 250 | 2000 | -25 °C up to +125 °C | 83 | 50 | 10 | 5 | 10 | 16 | ATCF160100M250DSPAAB000 | – | ||
| 860131275005 |
|
ALT EAG CAD LTS PSP CAD | 10 µF | 350 | 2000 | -25 °C up to +125 °C | 105 | 70 | 12 | 5 | 10 | 25 | ATCF250100M350DSPAAB000 | – | ||
| 860131278006 |
|
ALT EAG CAD LTS PSP CAD | 10 µF | 350 | 2000 | -25 °C up to +125 °C | 110 | 70 | 12 | 5 | 13 | 20 | ATCI200100M350DSPACB000 | – | ||
| 860130473001 |
|
ALT EAG CAD LTS PSP CAD | 22 µF | 25 | 1000 | -40 °C up to +125 °C | 70 | 5.5 | 13 | 2.5 | 6.3 | 11 | ATGD110220M025DSPA4A000 |
860130
|
||
| 860130673002 |
|
ALT EAG CAD LTS PSP CAD | 22 µF | 50 | 1000 | -40 °C up to +125 °C | 75 | 11 | 10 | 2.5 | 6.3 | 11 | ATGD110220M050DSPA4A000 | – | ||
| 860130573001 |
|
ALT EAG CAD LTS PSP CAD | 22 µF | 35 | 1000 | -40 °C up to +125 °C | 82 | 7.7 | 12 | 2.5 | 6.3 | 11 | ATGD110220M035DSPA4A000 |
860130
|
||
| 860130875007 |
|
ALT EAG CAD LTS PSP CAD | 22 µF | 100 | 2000 | -40 °C up to +125 °C | 90 | 22 | 7 | 5 | 10 | 12.5 | ATGF125220M100DSPA9B000 | – | ||
| 860131178006 |
|
ALT EAG CAD LTS PSP CAD | 22 µF | 250 | 2000 | -25 °C up to +125 °C | 145 | 110 | 10 | 5 | 13 | 20 | ATCI200220M250DSPACB000 | – | ||
| 860131278007 |
|
ALT EAG CAD LTS PSP CAD | 22 µF | 350 | 2000 | -25 °C up to +125 °C | 160 | 154 | 12 | 5 | 13 | 25 | ATCI250220M350DSPACB000 | – | ||
| 860130373001 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 16 | 1000 | -40 °C up to +125 °C | 91 | 5.28 | 15 | 2.5 | 6.3 | 11 | ATGD110330M016DSPA4A000 |
860130
|
||
| 860130473002 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 25 | 1000 | -40 °C up to +125 °C | 100 | 8.25 | 13 | 2.5 | 6.3 | 11 | ATGD110330M025DSPA4A000 |
860130
|
||
| 860130674003 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 50 | 1000 | -40 °C up to +125 °C | 122 | 16.5 | 10 | 3.5 | 8 | 11.5 | ATGE115330M050DSPA7A000 | – | ||
| 860130574002 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 35 | 1000 | -40 °C up to +125 °C | 108 | 11.55 | 12 | 3.5 | 8 | 11.5 | ATGE115330M035DSPA7A000 |
860130
|
||
| 860130875008 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 100 | 2000 | -40 °C up to +125 °C | 140 | 33 | 7 | 5 | 10 | 16 | ATGF160330M100DSPAAB000 | – | ||
| 860131178007 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 250 | 2000 | -25 °C up to +125 °C | 164 | 165 | 10 | 5 | 13 | 25 | ATCI250330M250DSPACB000 | – | ||
| 860131280008 |
|
ALT EAG CAD LTS PSP CAD | 33 µF | 350 | 2000 | -25 °C up to +125 °C | 180 | 231 | 12 | 7.5 | 16 | 25 | ATCK250330M350DSPAEB000 | – | ||
| 860130272001 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 10 | 1000 | -40 °C up to +125 °C | 92 | 4.7 | 18 | 2 | 5 | 11 | ATGC110470M010DSPA3A000 |
860130
|
||
| 860130373002 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 16 | 1000 | -40 °C up to +125 °C | 110 | 7.52 | 15 | 2.5 | 6.3 | 11 | ATGD110470M016DSPA4A000 |
860130
|
||
| 860130473003 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 25 | 1000 | -40 °C up to +125 °C | 110 | 11.75 | 13 | 2.5 | 6.3 | 11 | ATGD110470M025DSPA4A000 |
860130
|
||
| 860130674004 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 50 | 1000 | -40 °C up to +125 °C | 140 | 23.5 | 10 | 3.5 | 8 | 11.5 | ATGE115470M050DSPA7A000 | – | ||
| 860130574003 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 35 | 1000 | -40 °C up to +125 °C | 130 | 16.45 | 12 | 3.5 | 8 | 11.5 | ATGE115470M035DSPA7A000 |
860130
|
||
| 860130675005 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 50 | 2000 | -40 °C up to +125 °C | 164 | 23.5 | 10 | 5 | 10 | 12.5 | ATGF125470M050DSPA9B000 | – | ||
| 860130875009 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 100 | 2000 | -40 °C up to +125 °C | 175 | 47 | 7 | 5 | 10 | 25 | ATGF250470M100DSPAAB000 | – | ||
| 860130878010 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 100 | 2000 | -40 °C up to +125 °C | 185 | 47 | 7 | 5 | 13 | 20 | ATGI200470M100DSPACB000 | – | ||
| 860131180008 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 250 | 2000 | -25 °C up to +125 °C | 205 | 235 | 10 | 7.5 | 16 | 25 | ATCK250470M250DSPAEB000 | – | ||
| 860131280009 |
|
ALT EAG CAD LTS PSP CAD | 47 µF | 350 | 2000 | -25 °C up to +125 °C | 230 | 329 | 12 | 7.5 | 16 | 31.5 | ATCK315470M350DSPADB000 | – | ||
| 860130373003 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 16 | 1000 | -40 °C up to +125 °C | 175 | 16 | 15 | 2.5 | 6.3 | 11 | ATGD110101M016DSPA4A000 |
860130
|
||
| 860130273002 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 10 | 1000 | -40 °C up to +125 °C | 145 | 10 | 18 | 2.5 | 6.3 | 11 | ATGD110101M010DSPA4A000 |
860130
|
||
| 860130474004 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 25 | 1000 | -40 °C up to +125 °C | 210 | 25 | 13 | 3.5 | 8 | 11.5 | ATGE115101M025DSPA7A000 |
860130
|
||
| 860130475005 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 25 | 2000 | -40 °C up to +125 °C | 250 | 25 | 13 | 5 | 10 | 12.5 | ATGF125101M025DSPA9B000 |
860130
|
||
| 860130575004 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 35 | 2000 | -40 °C up to +125 °C | 230 | 35 | 12 | 5 | 10 | 12.5 | ATGF125101M035DSPA9B000 |
860130
|
||
| 860130675006 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 50 | 2000 | -40 °C up to +125 °C | 250 | 50 | 10 | 5 | 10 | 16 | ATGF160101M050DSPAAB000 | – | ||
| 860130878011 |
|
ALT EAG CAD LTS PSP CAD | 100 µF | 100 | 2000 | -40 °C up to +125 °C | 270 | 100 | 7 | 5 | 13 | 25 | ATGI250101M100DSPACB000 | – | ||
| 860130374004 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 16 | 1000 | -40 °C up to +125 °C | 340 | 35.2 | 15 | 3.5 | 8 | 11.5 | ATGE115221M016DSPA7A000 |
860130
|
||
| 860130274003 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 10 | 1000 | -40 °C up to +125 °C | 330 | 22 | 18 | 3.5 | 8 | 11.5 | ATGE115221M010DSPA7A000 |
860130
|
||
| 860130375005 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 16 | 2000 | -40 °C up to +125 °C | 400 | 35.2 | 15 | 5 | 10 | 12.5 | ATGF125221M016DSPA9B000 |
860130
|
||
| 860130475006 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 25 | 2000 | -40 °C up to +125 °C | 420 | 55 | 13 | 5 | 10 | 12.5 | ATGF125221M025DSPA9B000 |
860130
|
||
| 860130575005 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 35 | 2000 | -40 °C up to +125 °C | 480 | 77 | 12 | 5 | 10 | 16 | ATGF160221M035DSPAAB000 |
860130
|
||
| 860130675007 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 50 | 2000 | -40 °C up to +125 °C | 560 | 110 | 10 | 5 | 10 | 25 | ATGF250221M050DSPAAB000 | – | ||
| 860130678008 |
|
ALT EAG CAD LTS PSP CAD | 220 µF | 50 | 2000 | -40 °C up to +125 °C | 587 | 110 | 10 | 5 | 13 | 20 | ATGI200221M050DSPACB000 | – | ||
| 860130274004 |
|
ALT EAG CAD LTS PSP CAD | 330 µF | 10 | 1000 | -40 °C up to +125 °C | 340 | 33 | 18 | 3.5 | 8 | 11.5 | ATGE115331M010DSPA7A000 |
860130
|
||
| 860130375006 |
|
ALT EAG CAD LTS PSP CAD | 330 µF | 16 | 2000 | -40 °C up to +125 °C | 470 | 52.8 | 15 | 5 | 10 | 12.5 | ATGF125331M016DSPA9B000 |
860130
|
||
| 860130475007 |
|
ALT EAG CAD LTS PSP CAD | 330 µF | 25 | 2000 | -40 °C up to +125 °C | 570 | 82.5 | 13 | 5 | 10 | 16 | ATGF160331M025DSPAAB000 |
860130
|
||
| 860130575006 |
|
ALT EAG CAD LTS PSP CAD | 330 µF | 35 | 2000 | -40 °C up to +125 °C | 680 | 115.5 | 12 | 5 | 10 | 25 | ATGF250331M035DSPAAB000 |
860130
|
||
| 860130678009 |
|
ALT EAG CAD LTS PSP CAD | 330 µF | 50 | 2000 | -40 °C up to +125 °C | 810 | 165 | 10 | 5 | 13 | 20 | ATGI200331M050DSPACB000 | – | ||
| 860130578007 |
|
ALT EAG CAD LTS PSP CAD | 330 µF | 35 | 2000 | -40 °C up to +125 °C | 718 | 115.5 | 12 | 5 | 13 | 20 | ATGI200331M035DSPACB000 |
860130
|
||
| 860130275005 |
|
ALT EAG CAD LTS PSP CAD | 470 µF | 10 | 2000 | -40 °C up to +125 °C | 505 | 47 | 18 | 5 | 10 | 12.5 | ATGF125471M010DSPA9B000 |
860130
|
||
| 860130375007 |
|
ALT EAG CAD LTS PSP CAD | 470 µF | 16 | 2000 | -40 °C up to +125 °C | 650 | 75.2 | 15 | 5 | 10 | 16 | ATGF160471M016DSPAAB000 |
860130
|
||
| 860130475008 |
|
ALT EAG CAD LTS PSP CAD | 470 µF | 25 | 2000 | -40 °C up to +125 °C | 770 | 117.5 | 13 | 5 | 10 | 25 | ATGF250471M025DSPAAB000 |
860130
|
||
| 860130478009 |
|
ALT EAG CAD LTS PSP CAD | 470 µF | 25 | 2000 | -40 °C up to +125 °C | 810 | 117.5 | 13 | 5 | 13 | 20 | ATGI200471M025DSPACB000 |
860130
|
||
| 860130578008 |
|
ALT EAG CAD LTS PSP CAD | 470 µF | 35 | 2000 | -40 °C up to +125 °C | 810 | 164.5 | 12 | 5 | 13 | 20 | ATGI200471M035DSPACB000 |
860130
|
||
| 860130678010 |
|
ALT EAG CAD LTS PSP CAD | 470 µF | 50 | 2000 | -40 °C up to +125 °C | 900 | 235 | 10 | 5 | 13 | 25 | ATGI250471M050DSPACB000 | – | ||
| 860130275006 |
|
ALT EAG CAD LTS PSP CAD | 1000 µF | 10 | 2000 | -40 °C up to +125 °C | 870 | 100 | 18 | 5 | 10 | 16 | ATGF160102M010DSPAAB000 |
860130
|
||
| 860130375008 |
|
ALT EAG CAD LTS PSP CAD | 1000 µF | 16 | 2000 | -40 °C up to +125 °C | 950 | 160 | 15 | 5 | 10 | 25 | ATGF250102M016DSPAAB000 |
860130
|
||
| 860130378009 |
|
ALT EAG CAD LTS PSP CAD | 1000 µF | 16 | 2000 | -40 °C up to +125 °C | 1000 | 160 | 15 | 5 | 13 | 20 | ATGI200102M016DSPACB000 |
860130
|
||
| 860130478010 |
|
ALT EAG CAD LTS PSP CAD | 1000 µF | 25 | 2000 | -40 °C up to +125 °C | 970 | 250 | 13 | 5 | 13 | 25 | ATGI250102M025DSPACB000 |
860130
|
||
| 860130580009 |
|
ALT EAG CAD LTS PSP CAD | 1000 µF | 35 | 2000 | -40 °C up to +125 °C | 1080 | 350 | 12 | 7.5 | 16 | 25 | ATGK250102M035DSPAEB000 |
860130
|
