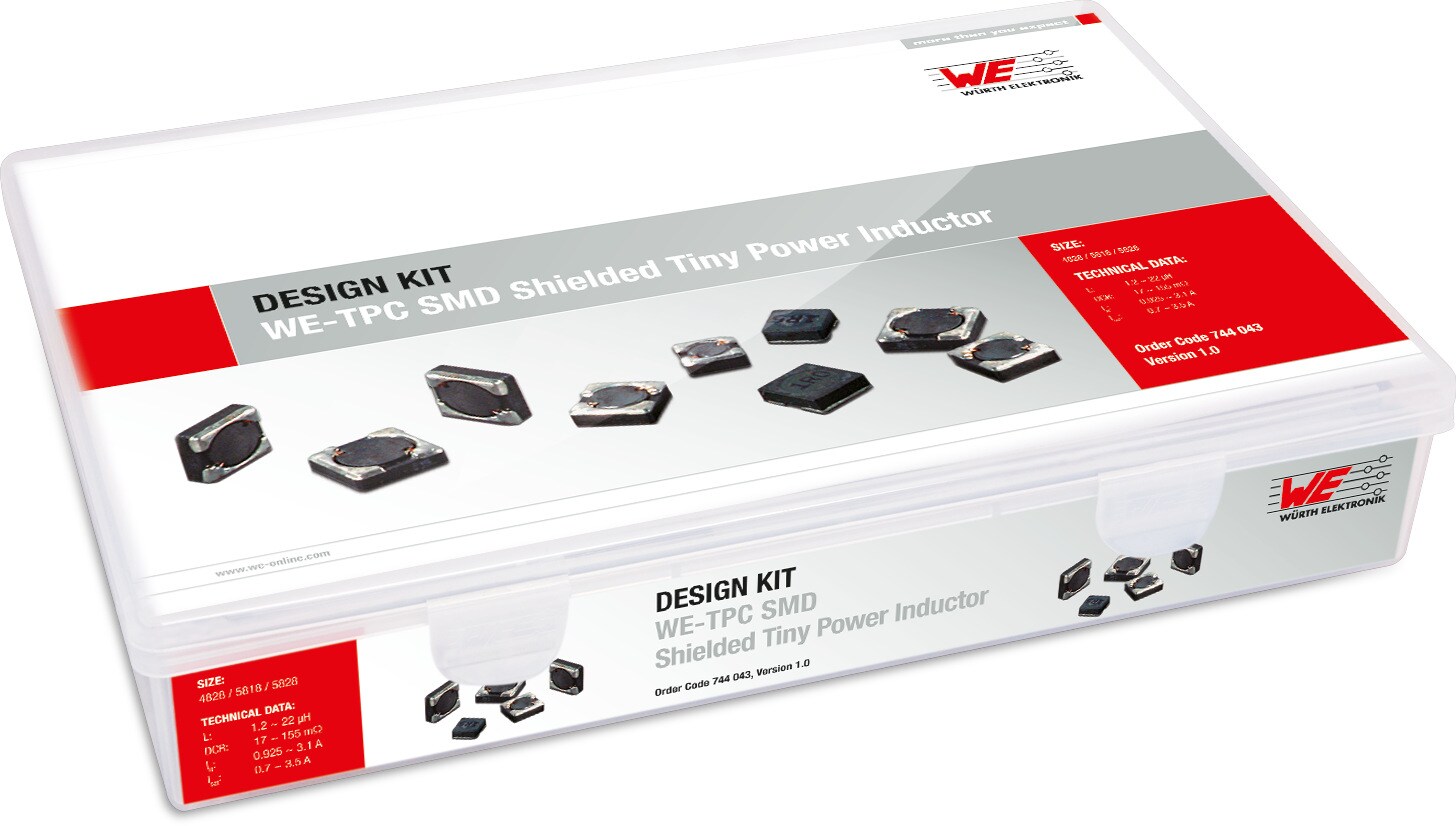

Design Kit WE-TPC SMT-Speicherdrosseln - Mittlere Bauformen

Artikel Nr. 744043

Artikeldaten

Artikel Nr. Daten­blatt Simu­lation Downloads Produktserie L
(µH)
L1
(µH)
IR 1
(A)
IR
(A)
ISAT 1
(A)
ISAT
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
RDC typ.
(mΩ)
RDC max.
(mΩ)
fres 1
(MHz)
fres
(MHz)
Bauform Version Muster
7440430012
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 1.2 1.2 3.1 3.1 2.8 2.8 17 20 17 20 150 150 4828 SMT
7440520012
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 1.2 1.2 3 3 3.5 3.5 20 30 20 30 120 120 5818
7440430018
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 1.8 1.8 2.7 2.7 2.45 2.45 20 25 20 25 120 120 4828 SMT
7440520018
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 1.8 1.8 2.6 2.6 3 3 24 35 24 35 100 100 5818 SMT
7440430022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 2.2 2.2 2.5 2.5 2.35 2.35 27 28 27 28 100 100 4828 SMT
744052002
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 2.5 2.5 2.4 2.4 2.7 2.7 30 40 30 40 85 85 5818 SMT
744053002
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 2.6 2.6 3 3 2.7 2.7 20 30 20 30 55 55 5828 SMT
7440430027
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 2.7 2.7 2.35 2.35 1.95 1.95 25 30 25 30 80 80 4828 SMT
744052003
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 3 3 2.2 2.2 2.4 2.4 35 45 35 45 70 70 5818 SMT
744053003
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 3 3 2.8 2.8 2.5 2.5 20 30 20 30 70 70 5828 SMT
744043003
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 3.3 3.3 2.15 2.15 1.8 1.8 30 35 30 35 80 80 4828 SMT
7440430039
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 3.9 3.9 1.72 1.72 1.65 1.65 50 60 50 60 55 55 4828 SMT
7440520039
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 3.9 3.9 2 2 2.1 2.1 50 55 50 55 60 60 5818 SMT
744053004
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 4.2 4.2 2.5 2.5 2.2 2.2 30 35 30 35 45 45 5828 SMT
744043004
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 4.7 4.7 1.55 1.55 1.7 1.7 50 70 50 70 60 60 4828 SMT
7440530047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 4.7 4.7 2.4 2.4 1.95 1.95 30 38 30 38 40 40 5828 SMT
744052005
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 5 5 1.65 1.65 1.8 1.8 50 60 50 60 55 55 5818 SMT
744053005
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 5.3 5.3 2.3 2.3 1.9 1.9 30 40 30 40 45 45 5828 SMT
744043005
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 5.6 5.6 1.38 1.38 1.3 1.3 70 85 70 85 60 60 4828 SMT
744052006
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 6.2 6.2 1.45 1.45 1.6 1.6 70 80 70 80 45 45 5818 SMT
744053006
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 6.2 6.2 2.2 2.2 1.7 1.7 40 45 40 45 38 38 5828 SMT
744043006
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 6.8 6.8 1.3 1.3 1.25 1.25 80 90 80 90 57 57 4828 SMT
744052007
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 7.5 7.5 1.35 1.35 1.5 1.5 70 90 70 90 45 45 5818 SMT
744043008
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 8.2 8.2 1.3 1.3 1.25 1.25 80 90 80 90 35 35 4828 SMT
744053008
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 8.2 8.2 2.1 2.1 1.6 1.6 50 55 50 55 28 28 5828 SMT
744052009
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 9 9 1.25 1.25 1.35 1.35 90 130 90 130 40 40 5818 SMT
744043100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 10 10 1.19 1.19 1 1 95 110 95 110 40 40 4828 SMT
744052100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 10 10 1.1 1.1 1.25 1.25 105 130 105 130 40 40 5818 SMT
744053100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 10 10 1.5 1.5 1.4 1.4 60 70 60 70 35 35 5828 SMT
744043120
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 12 12 1.12 1.12 0.95 0.95 100 125 100 125 30 30 4828 SMT
744053120
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 12 12 1.46 1.46 1.25 1.25 70 80 70 80 22 22 5828 SMT
744043150
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 15 15 1.03 1.03 0.75 0.75 120 150 120 150 25 25 4828 SMT
744053150
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 15 15 1.38 1.38 1.15 1.15 80 100 80 100 20 20 5828 SMT
744043180
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 18 18 0.98 0.98 0.7 0.7 150 160 150 160 25 25 4828 SMT
744043220
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-TPC SMT-Speicherdrossel 22 22 0.925 0.925 0.7 0.7 160 185 160 185 20 20 4828 SMT
