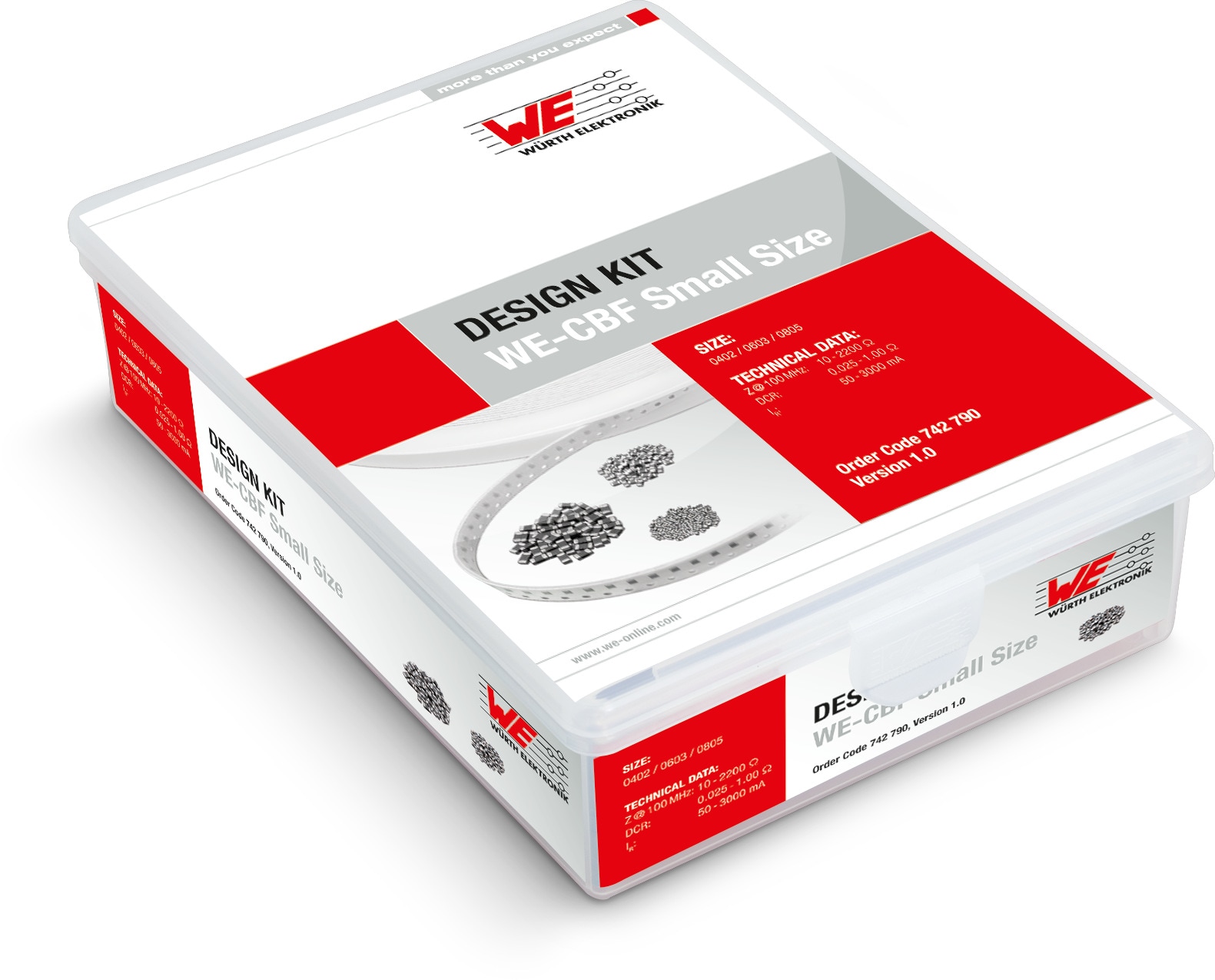

Design Kit WE-CBF SMT Ferrite Kleine Größen

Artikel Nr. 742790

Merkmale

  • Enthält die Bauformen 0402, 0603 und 0805 der SMD Ferrite WE-CBF
  • 34 Werte, 3 Typen, 1020 Bauteile

Artikeldaten

Artikel Nr. SPEC Simu­lation Downloads Produktserie Z @ 100 MHz
(Ω)
Z @ 1 GHz
(Ω)
Zmax
(Ω)
Typ IR 1
(mA)
RDC1 max.
(Ω)
Version Muster
742792701
STE STE ALT EAG CAD LTS PSP SPA CAD WE-CBF SMT-Ferrit 10 17 16 Wide Band SMT
74279274
STE STE ALT EAG CAD LTS PSP SPA CAD WE-CBF SMT-Ferrit 30 46 43 Wide Band SMT
74279271
STE STE ALT EAG CAD LTS PSP SPA CAD WE-CBF SMT-Ferrit 120 175 200 Wide Band SMT
742792780
STE STE ALT EAG CAD LTS PSP SPA CAD WE-CBF SMT-Ferrit 220 200 360 Wide Band SMT
74279272
STE STE ALT EAG CAD LTS PSP SPA CAD WE-CBF SMT-Ferrit 300 316 400 Wide Band SMT
74279279
STE STE ALT EAG CAD LTS PSP SPA CAD WE-CBF SMT-Ferrit 600 297 660 Wide Band SMT
74279268
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 15 56 60 High Speed 500 0.1 SMT
74279267
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 60 92 110 High Speed 500 0.3 SMT
742792606
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 120 212 388 High Speed 0.35 SMT
742792653
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 600 230 4500 High Speed 300 0.65 SMT
74279262
STE STE STE ALT EAG CAD LTS PSP IGS CAD WE-CBF SMT-Ferrit 120 141 200 Wide Band 500 0.3 SMT
74279263
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 220 246 280 Wide Band 500 0.3 SMT
74279265
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 600 224 720 Wide Band 200 0.45 SMT
74279266
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 1000 265 1350 Wide Band 200 0.6 SMT
742792651
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 600 258 800 High Current 1000 0.2 SMT
742792693
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 2200 192 2250 Wide Band 50 0.8 SMT
742792604
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 22 35 40 High Current 1000 0.05 SMT
742792602
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 60 110 110 High Current 3000 0.04 SMT
742792624
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 180 173 250 High Current 1500 0.09 SMT
742792641
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 300 274 450 High Current 2000 0.15 SMT
7427920
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 11 24 24 High Speed 600 0.15 SMT
74279202
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 120 129 200 High Speed 500 0.1 SMT
742792042
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 600 195 3000 High Speed 200 0.5 SMT
742792038
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 240 99 280 Wide Band 200 0.4 SMT
74279204
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 600 204 700 Wide Band 200 0.35 SMT
74279205
STE STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 1000 194 1050 Wide Band 200 0.45 SMT
742792093
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 2200 185 3000 Wide Band 200 0.6 SMT
742792011
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 10 19 20 High Current 3000 0.025 SMT
74279206
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 30 71 55 High Current 3000 0.025 SMT
742792063
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 60 95 90 High Current 3000 0.025 SMT
742792023
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 120 129 180 High Current 3000 0.03 SMT
742792037
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 330 171 375 High Current 2000 0.08 SMT
742792040
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 600 193 700 High Current 2000 0.15 SMT
742792097
STE ALT EAG CAD LTS PSP CAD WE-CBF SMT-Ferrit 1500 151 1800 High Current 1000 0.3 SMT
