WE-VE ESD Suppressor

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Fl
(mm)
Mount

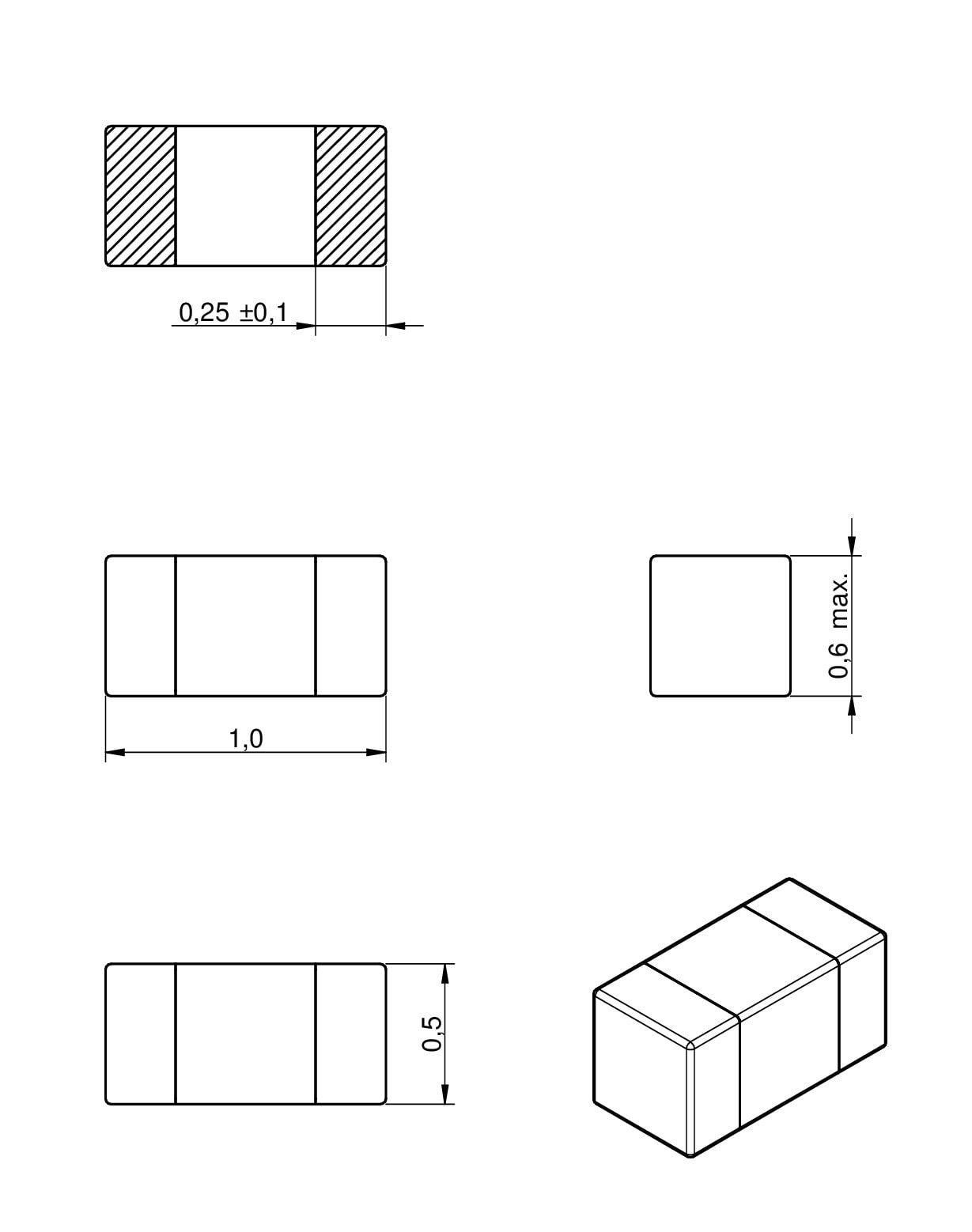

0402 1 0.5 0.6 0.25 SMT

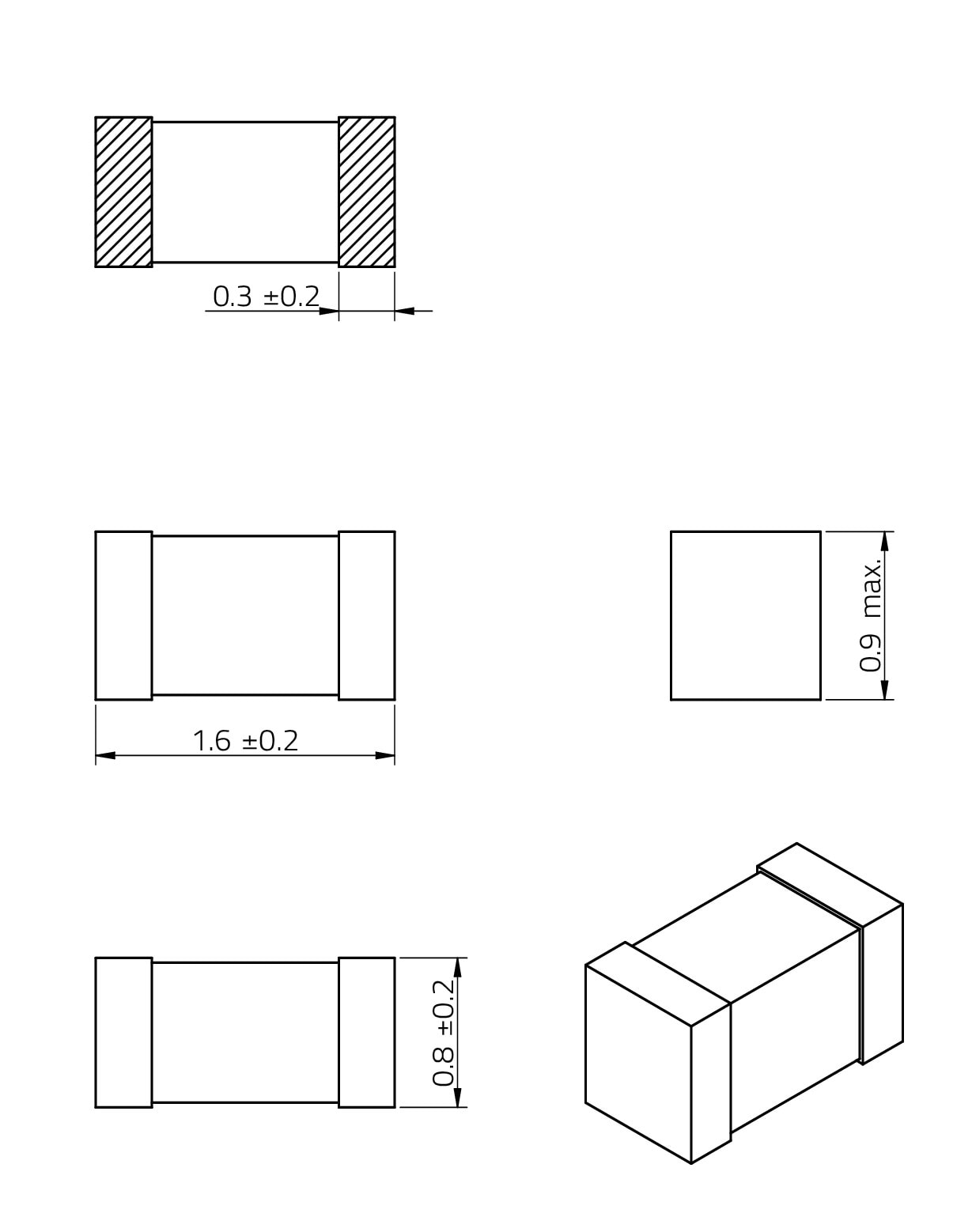

0603 1.6 0.8 0.9 0.3 SMT

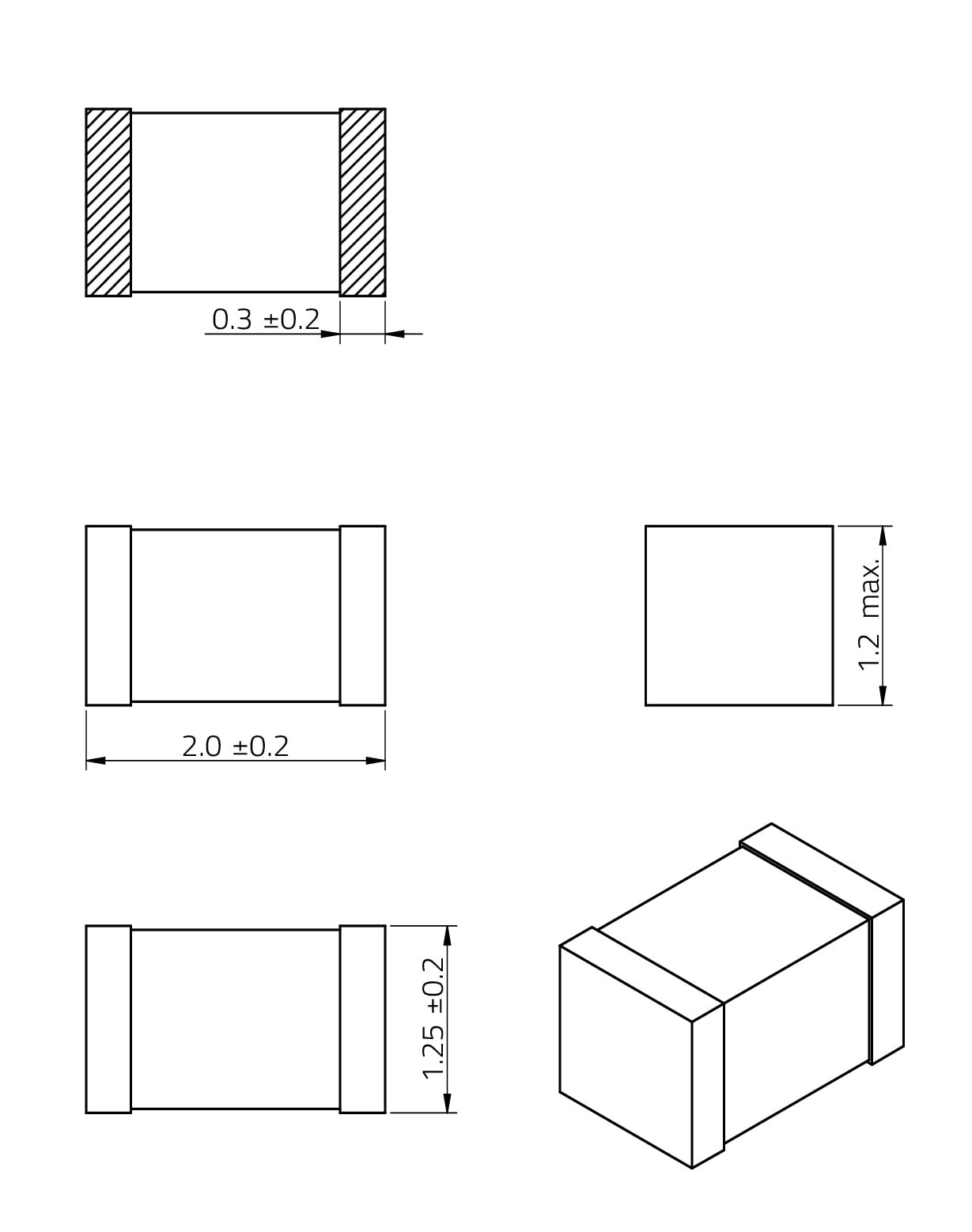

0805 2 1.25 1.2 0.3 SMT

Characteristics

  • Fast response time
  • No leakage current
  • Low clamping voltage
  • Almost no energy consumption in stand-by mode
  • Excellent absorption for ESD-impulses
  • Operating temperature: –40 ºC to +85 ºC
  • Nickel barrier

Applications

  • Protection of data lines
  • Protection of bus systems
  • Protection of semiconductors
  • ESD protection in accordance with EN 61000-4-2:
    – 8 kV contact discharge
    – 15 kV air discharge

Products

All
0402
0603
0805
Order Code Data­sheet Simu­lation DownloadsVDC
(V)
ILeak
(µA)
VClamp typ.
(V)
VESD Air
(kV)
RISOApplicationDesign KitFilter StickFilter Bag Samples
82357050100SPEC
6 files 5 1 60 1510 MΩ USB 1.1 RS-232 LAN 10 Mbit
82357050220SPEC
6 files 5 1 55 1510 MΩ823999
82357050330SPEC
6 files 5 1 55 1510 MΩ RS-422823999
82357050560SPEC
6 files 5 1 55 1510 MΩ RS-485 IrDA 1.08294851
829485
82357120050SPEC
6 files 12 1 80 1510 MΩ USB 1.1 USB 2.0823999
82357120100SPEC
6 files 12 1 60 1510 MΩ USB 1.1 RS-232 LAN 10 Mbit823999
82357120220SPEC
6 files 12 1 55 1510 MΩ
82357240010SPEC
6 files 24 1 200 1510 MΩ
82357240030SPEC
6 files 24 1 180 1510 MΩ USB 2.0 LAN 100 Mbit823999
82356050050SPEC
6 files 5 1 75 1510 MΩ USB 1.1 USB 2.0823999
82356050100SPEC
6 files 5 1 60 1510 MΩ
82356050220SPEC
6 files 5 1 55 1510 MΩ823999
82356050560SPEC
6 files 5 1 55 1510 MΩ
82356050101SPEC
6 files 5 1 55 1510 MΩ RS-485, Sensors823999
82356120050SPEC
6 files 12 1 80 1510 MΩ
82356120100SPEC
6 files 12 1 60 1510 MΩ USB 1.1 RS-232 LAN 10 Mbit823999
82356120220SPEC
6 files 12 1 55 1510 MΩ
82356120330SPEC
6 files 12 1 55 1510 MΩ
82356240030SPEC
6 files 24 1 180 1510 MΩ USB 2.0 LAN 100 Mbit823999
82350120560SPEC
6 files 12 1 50 1510 MΩ RS-232823999
82350120101SPEC
6 files 12 1 50 1510 MΩ RS-232, Sensors
Order Code Data­sheet Simu­lation
82357050100SPEC
82357050220SPEC
82357050330SPEC
82357050560SPEC
82357120050SPEC
82357120100SPEC
82357120220SPEC
82357240010SPEC
82357240030SPEC
82356050050SPEC
82356050100SPEC
82356050220SPEC
82356050560SPEC
82356050101SPEC
82356120050SPEC
82356120100SPEC
82356120220SPEC
82356120330SPEC
82356240030SPEC
82350120560SPEC
82350120101SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsVDC
(V)
ILeak
(µA)
VClamp typ.
(V)
VESD Air
(kV)
RISOApplicationDesign KitFilter StickFilter Bag Samples
