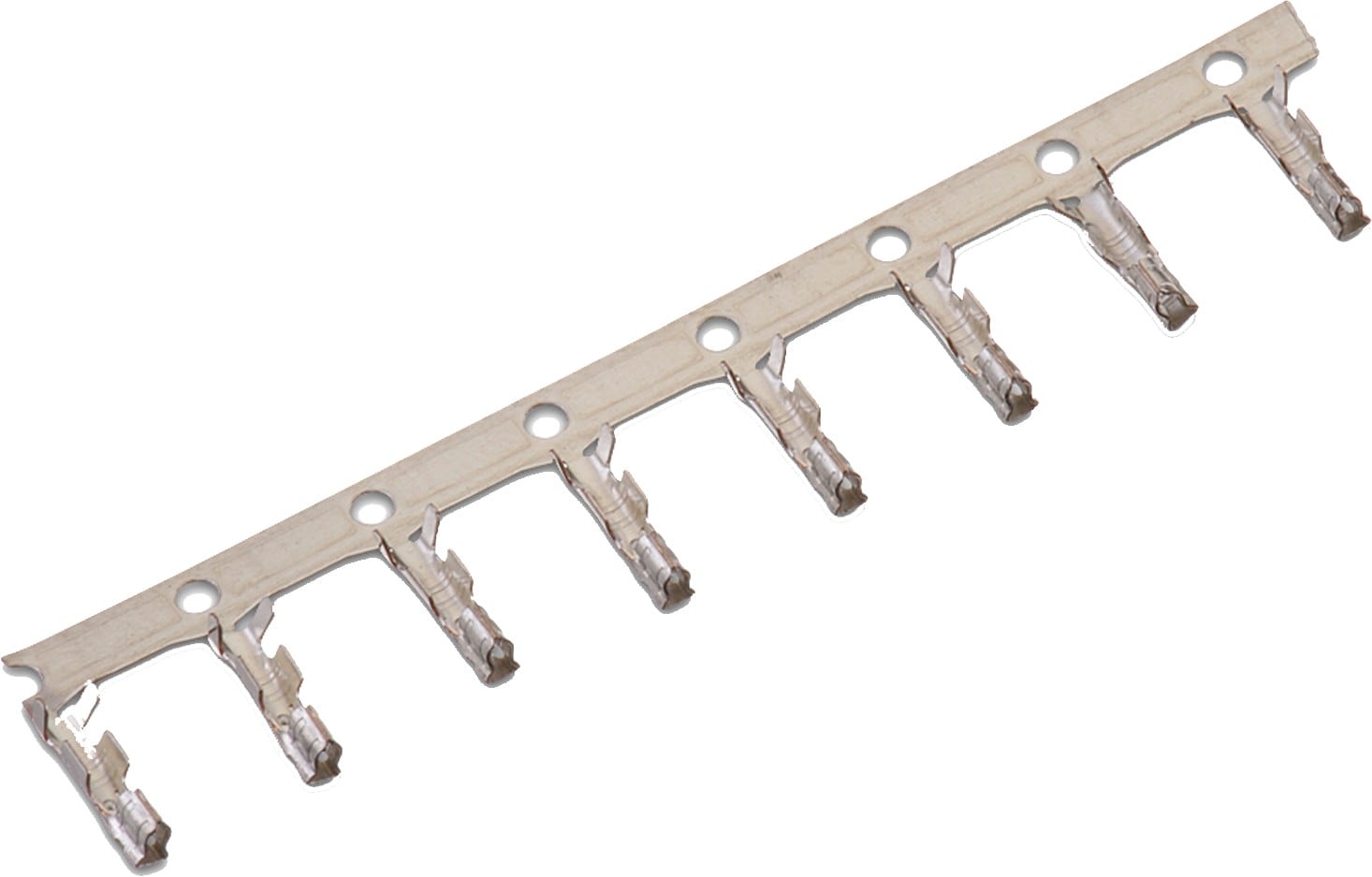

WR-WTB 2.50 mm Female Crimp Contact

Kind Properties
Pitch2.5 mm
GenderFemale
Material Properties
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Working Voltage250 V (AC)
Contact Resistance20 mΩ
Wire Properties
Stranded Wire Section (AWG)28 to 22 (AWG)
Packaging Properties
PackagingBag; Big Reel; Small Reel

Products

Order Code Data­sheet DownloadsPitch
(mm)
GenderTypeIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RStranded Wire Section (AWG)PackagingToolsDesign Kit Samples
64600113722SPEC
3 files 2.5 Female Crimp Terminal 3 250 Cable 20 max. 28 to 22 (AWG) Big Reel600620230220
64600113722DECSPEC
3 files 2.5 Female Crimp Terminal 3 250 Cable 20 max. 28 to 22 (AWG) Bag600620230220
612690
645001
64610113722SPEC
3 files 2.5 Female Crimp Terminal 3 250 Cable 20 max. 28 to 22 (AWG) Small Reel600620230220
Order Code Data­sheet
64600113722SPEC
64600113722DECSPEC
64610113722SPEC
Samples
Order Code Data­sheet DownloadsPitch
(mm)
GenderTypeIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RStranded Wire Section (AWG)PackagingToolsDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
