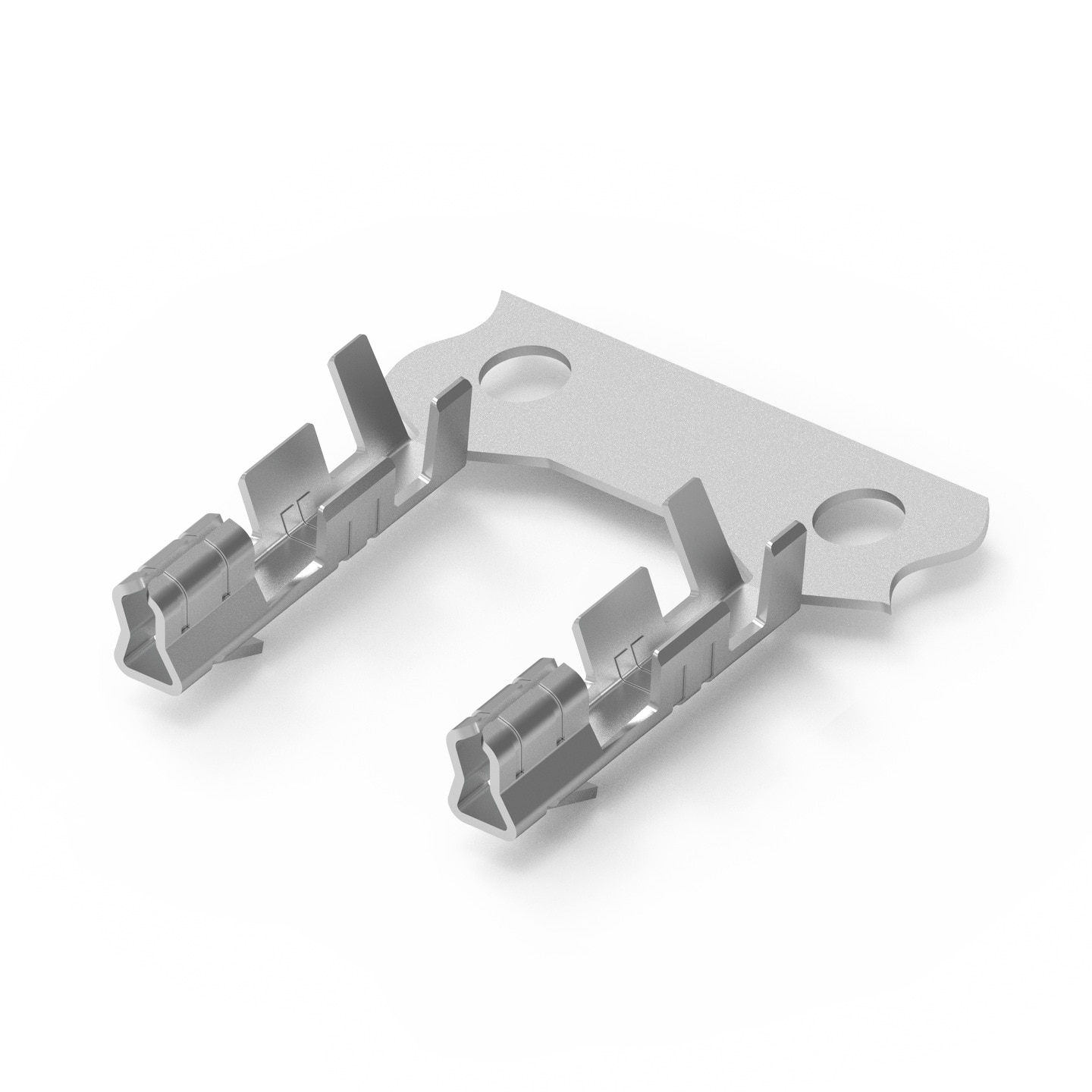

WR-WTB 2.50 mm Female Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	3 A
Working Voltage	250 V (AC)
Contact Resistance	20 mΩ
Pitch	2.5 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-40 °C up to +105 °C

Wire Properties
Stranded Wire Section (AWG)	28 to 22 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.326 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Manual Crimping Tool	Automatic Crimping Tool	Design Kit	Samples
	64600113722	Female, 28 to 22 (AWG), 0.081 to 0.326 (mm²)	Downloads3 files CAD files ZIP 3D 64600113722_1 (rev1).pdf \| 169.3 KB IGS 64600113722 (rev1).igs \| 938.3 KB STP 64600113722 (rev1).stp \| 358.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 22 (AWG)	Stranded Wire Section (Metric)0.081 to 0.326 (mm²)	PackagingBig Reel	Packaging Unit10000 pcs	Manual Crimping Tool 600620230220	Automatic Crimping Tool 600646401	Design Kit –
	64600113722DEC	Female, 28 to 22 (AWG), 0.081 to 0.326 (mm²)	Downloads3 files CAD files ZIP 3D 64600113722DEC_1 (rev1).pdf \| 89.2 KB IGS 64600113722DEC (rev1).igs \| 878.7 KB STP 64600113722DEC (rev1).stp \| 358.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 22 (AWG)	Stranded Wire Section (Metric)0.081 to 0.326 (mm²)	PackagingBag	Packaging Unit100 pcs	Manual Crimping Tool 600620230220	Automatic Crimping Tool –	Design Kit 612690 645001
	64610113722	Female, 28 to 22 (AWG), 0.081 to 0.326 (mm²)	Downloads3 files CAD files ZIP 3D 64610113722_1 (rev1).pdf \| 110 KB IGS 64610113722 (rev1).igs \| 1.1 MB STP 64610113722 (rev1).stp \| 432.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 22 (AWG)	Stranded Wire Section (Metric)0.081 to 0.326 (mm²)	PackagingSmall Reel	Packaging Unit1000 pcs	Manual Crimping Tool 600620230220	Automatic Crimping Tool 600646401	Design Kit –

Use with

WR-WTB Pre-crimped wire

WR-WTB 2.50 mm Female Terminal Housing

Tools

WR-WTB Manual Crimping Tool

WR-WTB Manual Insulation Stripper

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
