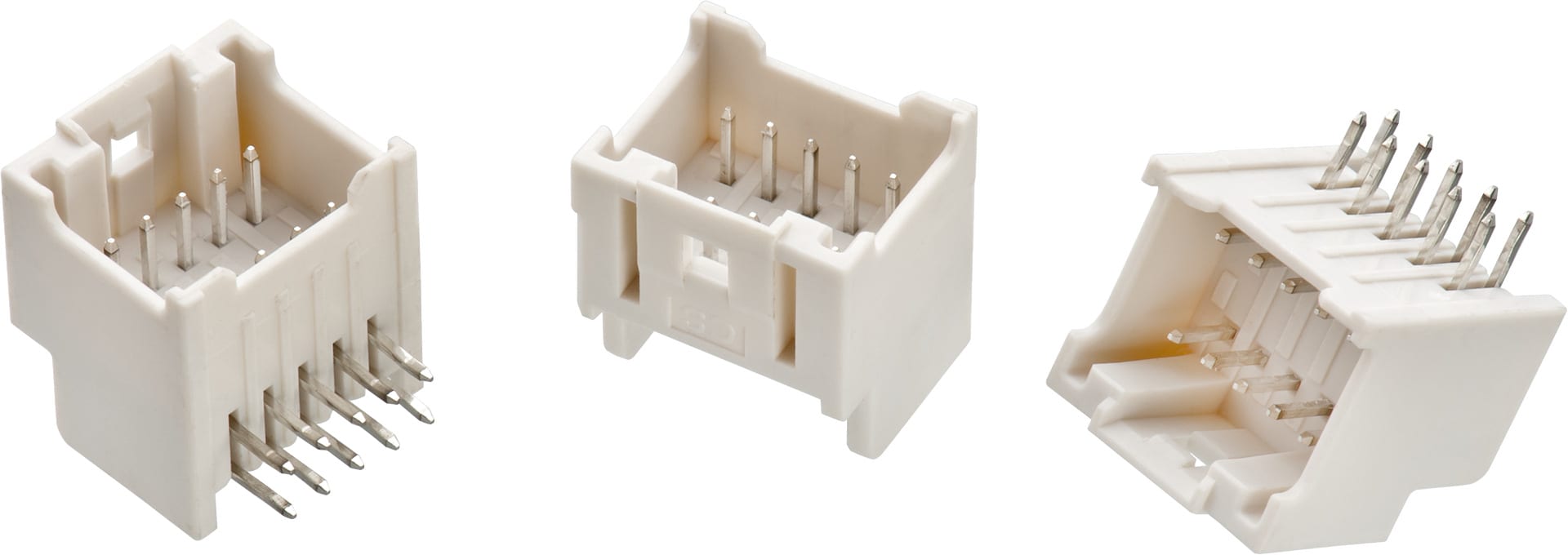

WR-WTB 2.00 mm Male Dual Row Horizontal Shrouded Header w. positive locking

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Color	White
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
I_R	3 A
Working Voltage	250 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Male
Type	Horizontal

Certification
cULus Approval	E323964

Packaging Properties
Packaging	Tube

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit
62400821722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62400821722_1 (rev1).pdf \| 89.9 KB IGS 62400821722 (rev1).iges \| 1.5 MB STP 62400821722 (rev1).stp \| 629 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	2	Male	Horizontal	THT	3	250	PCB	20	max.	11.4	Tube	645001
62401021722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62401021722_1 (rev1).pdf \| 109.7 KB IGS 62401021722 (rev1).iges \| 1.7 MB STP 62401021722 (rev1).stp \| 706.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	2	Male	Horizontal	THT	3	250	PCB	20	max.	13.4	Tube	612690 645001
62401221722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62401221722_1 (rev1).pdf \| 119.3 KB IGS 62401221722 (rev1).iges \| 1.9 MB STP 62401221722 (rev1).stp \| 783.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	2	Male	Horizontal	THT	3	250	PCB	20	max.	15.4	Tube	645001
62401421722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62401421722_1 (rev1).pdf \| 128.6 KB IGS 62401421722 (rev1).iges \| 2.1 MB STP 62401421722 (rev1).stp \| 860 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	2	Male	Horizontal	THT	3	250	PCB	20	max.	17.4	Tube	645001
62401621722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP IGS 62401621722 (rev1).iges \| 2.2 MB STP 62401621722 (rev1).stp \| 937.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	2	Male	Horizontal	THT	3	250	PCB	20	max.	19.4	Tube	645001
62401821722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62401821722_1 (rev1).pdf \| 146.9 KB IGS 62401821722 (rev1).iges \| 2.4 MB STP 62401821722 (rev1).stp \| 1015.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	2	Male	Horizontal	THT	3	250	PCB	20	max.	21.4	Tube	645001
62402021722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62402021722_1 (rev1).pdf \| 156.4 KB IGS 62402021722 (rev1).iges \| 2.6 MB STP 62402021722 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	2	Male	Horizontal	THT	3	250	PCB	20	max.	23.4	Tube	645001
62402221722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62402221722_1 (rev1).pdf \| 165.8 KB IGS 62402221722 (rev1).iges \| 2.8 MB STP 62402221722 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	2	Male	Horizontal	THT	3	250	PCB	20	max.	25.4	Tube	–
62402421722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62402421722_1 (rev1).pdf \| 175.6 KB IGS 62402421722 (rev1).iges \| 3 MB STP 62402421722 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	2	Male	Horizontal	THT	3	250	PCB	20	max.	27.4	Tube	–
62402621722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62402621722_1 (rev1).pdf \| 185.1 KB IGS 62402621722 (rev1).iges \| 3.2 MB STP 62402621722 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	2	Male	Horizontal	THT	3	250	PCB	20	max.	29.4	Tube	–
62402821722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62402821722_1 (rev1).pdf \| 194.9 KB IGS 62402821722 (rev1).iges \| 3.4 MB STP 62402821722 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	28	2	Male	Horizontal	THT	3	250	PCB	20	max.	31.4	Tube	–
62403021722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62403021722_1 (rev1).pdf \| 204.4 KB IGS 62403021722 (rev1).iges \| 3.5 MB STP 62403021722 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	30	2	Male	Horizontal	THT	3	250	PCB	20	max.	33.4	Tube	–
62403221722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62403221722_1 (rev1).pdf \| 214.3 KB IGS 62403221722 (rev1).iges \| 3.7 MB STP 62403221722 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	2	Male	Horizontal	THT	3	250	PCB	20	max.	35.4	Tube	–
62403421722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62403421722_1 (rev1).pdf \| 223.5 KB IGS 62403421722 (rev1).iges \| 3.9 MB STP 62403421722 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	34	2	Male	Horizontal	THT	3	250	PCB	20	max.	37.4	Tube	–
62403621722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62403621722_1 (rev1).pdf \| 233.4 KB IGS 62403621722 (rev1).iges \| 4.1 MB STP 62403621722 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	36	2	Male	Horizontal	THT	3	250	PCB	20	max.	39.4	Tube	–
62403821722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62403821722_1 (rev1).pdf \| 242.5 KB IGS 62403821722 (rev1).iges \| 4.3 MB STP 62403821722 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	38	2	Male	Horizontal	THT	3	250	PCB	20	max.	41.4	Tube	–
62404021722	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 62404021722_1 (rev1).pdf \| 252 KB IGS 62404021722 (rev1).iges \| 4.5 MB STP 62404021722 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	2	Male	Horizontal	THT	3	250	PCB	20	max.	43.4	Tube	–
