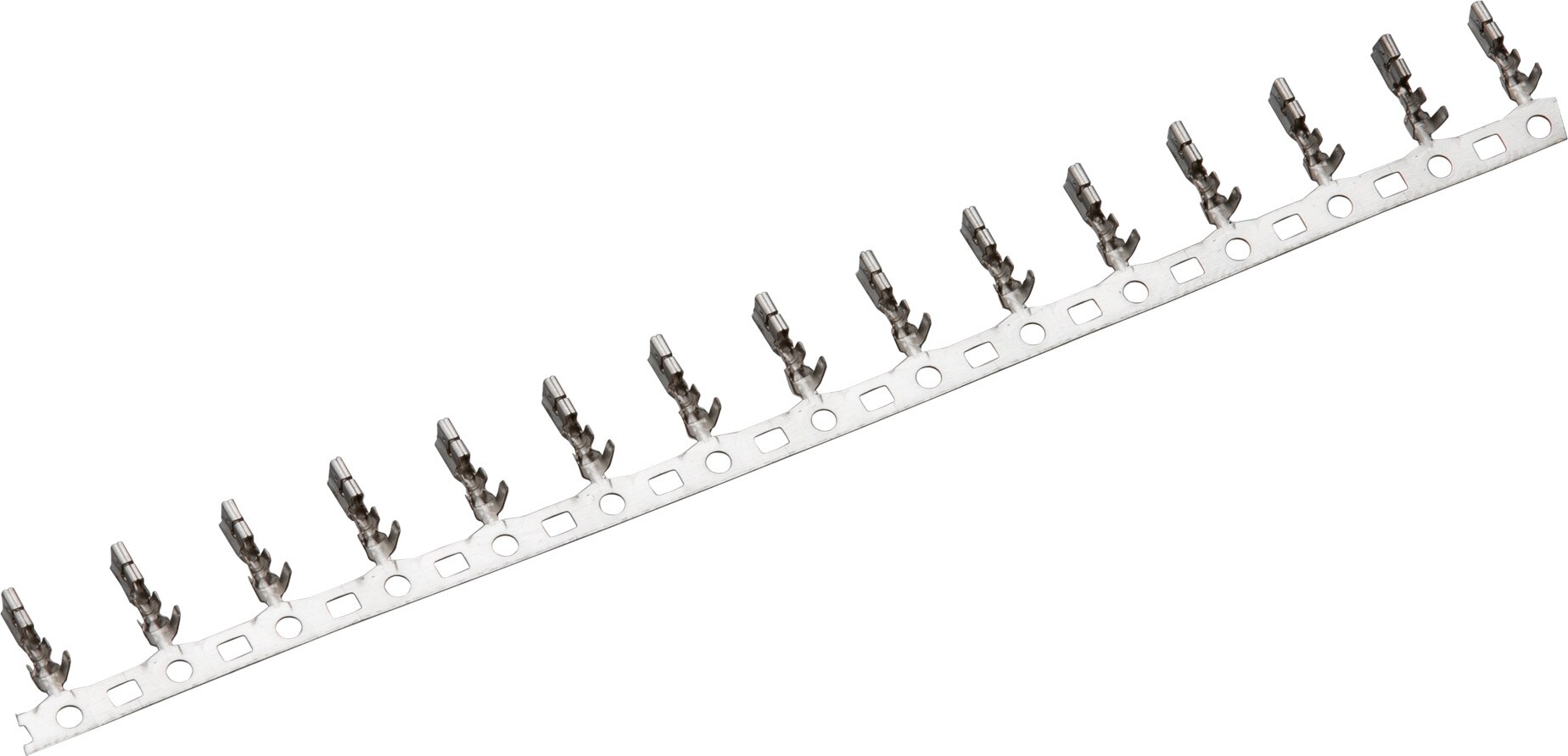

WR-WTB 2.00 mm Female Dual Row Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	3 A
Working Voltage	250 V (AC)
Contact Resistance	20 mΩ
Pitch	2 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-25 °C up to +85 °C

Wire Properties
Stranded Wire Section (AWG)	28 to 22 (AWG)
Stranded Wire Section (Metric)	0.081 to 0.326 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Automatic Crimping Tool	Manual Crimping Tool	Design Kit	Samples
62400113722	Female, 28 to 22 (AWG), 0.081 to 0.326 (mm²)	Downloads3 files CAD files ZIP 3D 62400113722 (rev1).pdf \| 1.5 MB IGS 62400113722 (rev1).igs \| 2.7 MB STP 62400113722 (rev1).stp \| 554.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 22 (AWG)	Stranded Wire Section (Metric)0.081 to 0.326 (mm²)	PackagingBig Reel	Packaging Unit10000 pcs	Automatic Crimping Tool 600624228220	Manual Crimping Tool 600624401	Design Kit –
62400113722DEC	Female, 28 to 22 (AWG), 0.081 to 0.326 (mm²)	Downloads3 files CAD files ZIP 3D 3D_62400113722DEC (rev1).pdf \| 109.2 KB IGS 62400113722DEC (rev1).igs \| 2.7 MB STP 62400113722DEC (rev1).stp \| 554.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 22 (AWG)	Stranded Wire Section (Metric)0.081 to 0.326 (mm²)	PackagingBag	Packaging Unit100 pcs	Automatic Crimping Tool –	Manual Crimping Tool 600624228220	Design Kit 612690 645001
62410113722	Female, 28 to 22 (AWG), 0.081 to 0.326 (mm²)	Downloads3 files CAD files ZIP 3D 3D_62410113722 (rev1).pdf \| 242.3 KB IGS 62410113722 (rev1).igs \| 2.7 MB STP 62410113722 (rev1).stp \| 554.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)28 to 22 (AWG)	Stranded Wire Section (Metric)0.081 to 0.326 (mm²)	PackagingSmall Reel	Packaging Unit1000 pcs	Automatic Crimping Tool 600624228220	Manual Crimping Tool 600624401	Design Kit –

Use with

WR-WTB 2.00 mm Female Dual Row Terminal Housing w. positive locking

Tools

WR-WTB Manual Crimping Tool: 600624228220

WR-WTB Automatic Crimping Tool: 600624401

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
