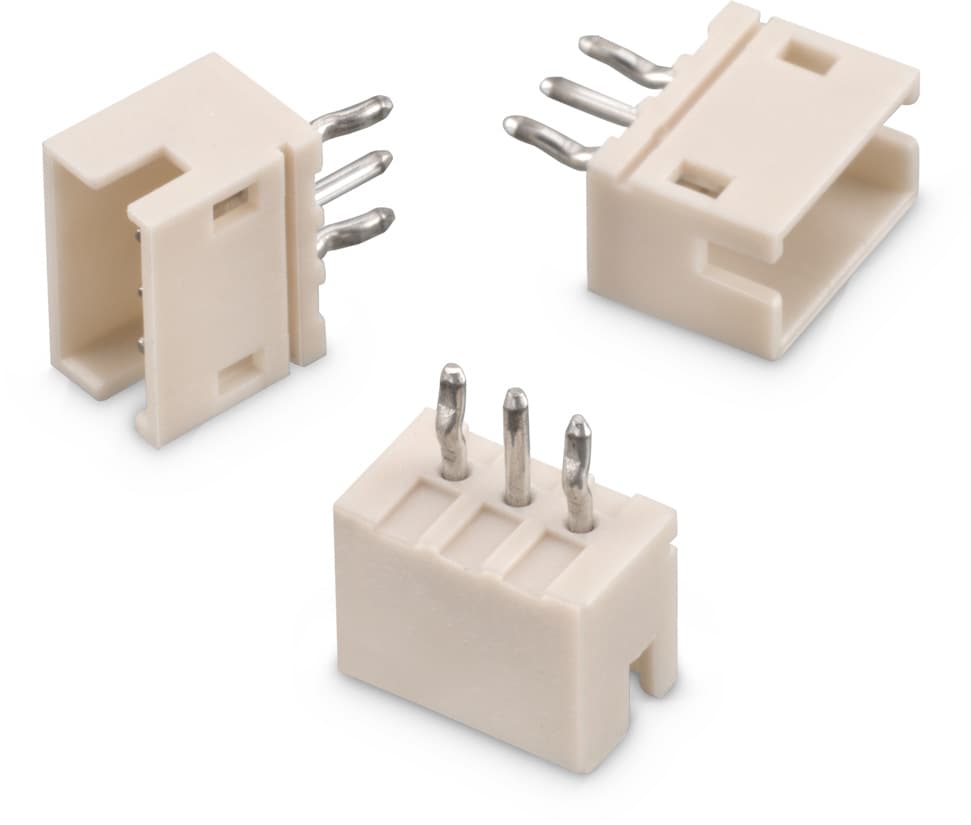

WR-WTB 1.50 mm Male Vertical Shrouded Header

Kind Properties
Pitch1.5 mm
GenderMale
Material Properties
Insulator MaterialNylon 9T
Insulator Flammability RatingUL94 V-0
ColorBeige
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-25 up to +85 °C
ComplianceRoHS
Working Voltage50 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO100 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
64800211622SPEC
6 files 2 1.5 Male Vertical THT 1 50 PCB 20 max. 4.5 Bag645001
64800311622SPEC
6 files 3 1.5 Male Vertical THT 1 50 PCB 20 max. 6 Bag645001
64800411622SPEC
6 files 4 1.5 Male Vertical THT 1 50 PCB 20 max. 7.5 Bag645001
64800511622SPEC
6 files 5 1.5 Male Vertical THT 1 50 PCB 20 max. 9 Bag645001
64800611622SPEC
6 files 6 1.5 Male Vertical THT 1 50 PCB 20 max. 10.5 Bag645001
64800711622SPEC
6 files 7 1.5 Male Vertical THT 1 50 PCB 20 max. 12 Bag645001
64800811622SPEC
6 files 8 1.5 Male Vertical THT 1 50 PCB 20 max. 13.5 Bag645001
64800911622SPEC
6 files 9 1.5 Male Vertical THT 1 50 PCB 20 max. 15 Bag645001
64801011622SPEC
6 files 10 1.5 Male Vertical THT 1 50 PCB 20 max. 16.5 Bag612690
645001
Order Code Data­sheet
64800211622SPEC
64800311622SPEC
64800411622SPEC
64800511622SPEC
64800611622SPEC
64800711622SPEC
64800811622SPEC
64800911622SPEC
64801011622SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeMountIR
(A)
Working Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
