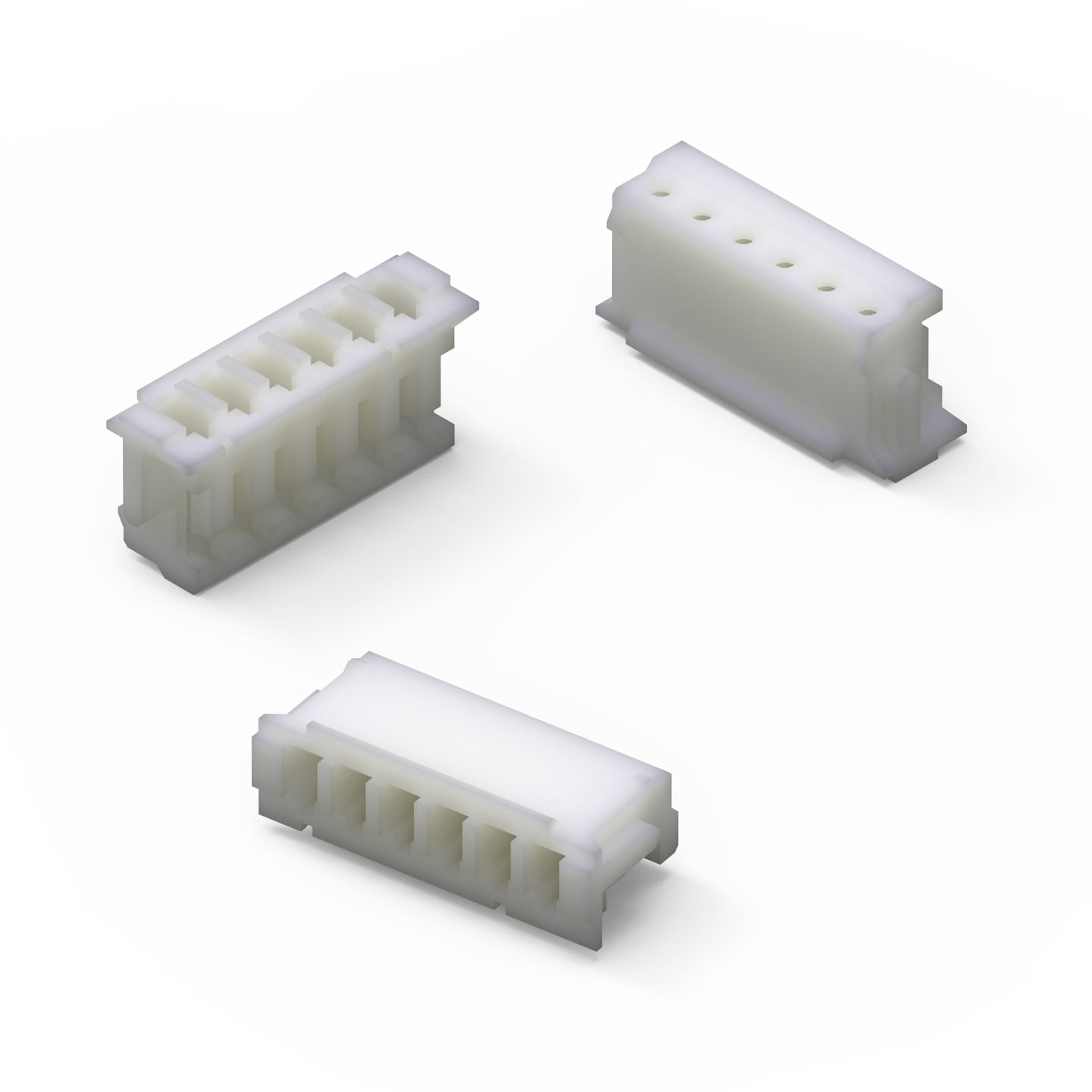

WR-WTB 1.50 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	Ivory

General Information
Compliance	RoHS
Withstanding Voltage	500 V (AC)
R_ISO	100 MΩ
Pitch	1.5 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-25 °C up to +85 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Mates with	Design Kit	Samples
	648002113322	Female, 2, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648002113322_1 (rev1).pdf \| 42.2 KB IGS 648002113322 (rev1).iges \| 586.3 KB STP 648002113322 (rev1).stp \| 132.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 2	Type Terminal Housing	Packaging Bag	Mates with 64800211622 648102131822 679302124022	Design Kit 645001
	648003113322	Female, 3, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648003113322_1 (rev1).pdf \| 51.4 KB IGS 648003113322 (rev1).iges \| 732.6 KB STP 648003113322 (rev1).stp \| 164 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 3	Type Terminal Housing	Packaging Bag	Mates with 64800311622 648103131822 679303124022	Design Kit 645001
	648004113322	Female, 4, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648004113322_1 (rev1).pdf \| 60.3 KB IGS 648004113322 (rev1).iges \| 884.8 KB STP 648004113322 (rev1).stp \| 196 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 4	Type Terminal Housing	Packaging Bag	Mates with 64800411622 648104131822 679304124022	Design Kit 645001
	648005113322	Female, 5, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648005113322_1 (rev1).pdf \| 68.3 KB IGS 648005113322 (rev1).iges \| 1 MB STP 648005113322 (rev1).stp \| 228.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 5	Type Terminal Housing	Packaging Bag	Mates with 64800511622 648105131822 679305124022	Design Kit 645001
	648006113322	Female, 6, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648006113322_1 (rev1).pdf \| 80 KB IGS 648006113322 (rev1).iges \| 1.2 MB STP 648006113322 (rev1).stp \| 265.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 6	Type Terminal Housing	Packaging Bag	Mates with 64800611622 648106131822 679306124022	Design Kit 645001
	648007113322	Female, 7, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648007113322_1 (rev1).pdf \| 89.4 KB IGS 648007113322 (rev1).iges \| 1.3 MB STP 648007113322 (rev1).stp \| 296.7 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 7	Type Terminal Housing	Packaging Bag	Mates with 64800711622 648107131822 679307124022	Design Kit 645001
	648008113322	Female, 8, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648008113322_1 (rev1).pdf \| 98.7 KB IGS 648008113322 (rev1).iges \| 1.5 MB STP 648008113322 (rev1).stp \| 331.6 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 8	Type Terminal Housing	Packaging Bag	Mates with 64800811622 648108131822 679308124022	Design Kit 645001
	648009113322	Female, 9, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648009113322_1 (rev1).pdf \| 108.2 KB IGS 648009113322 (rev1).iges \| 1.6 MB STP 648009113322 (rev1).stp \| 358.7 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 9	Type Terminal Housing	Packaging Bag	Mates with 64800911622 648109131822 679309124022	Design Kit 645001
	648010113322	Female, 10, Terminal Housing	Downloads 3 files CAD files ZIP 3D 648010113322_1 (rev1).pdf \| 117.8 KB IGS 648010113322 (rev1).iges \| 1.8 MB STP 648010113322 (rev1).stp \| 390.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 10	Type Terminal Housing	Packaging Bag	Mates with 64801011622 648110131822 679310124022	Design Kit 612690 645001

Use with

WR-WTB 1.50 mm Female Crimp Contact

WR-WTB 1.50 mm Pre-Crimped Wire

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
