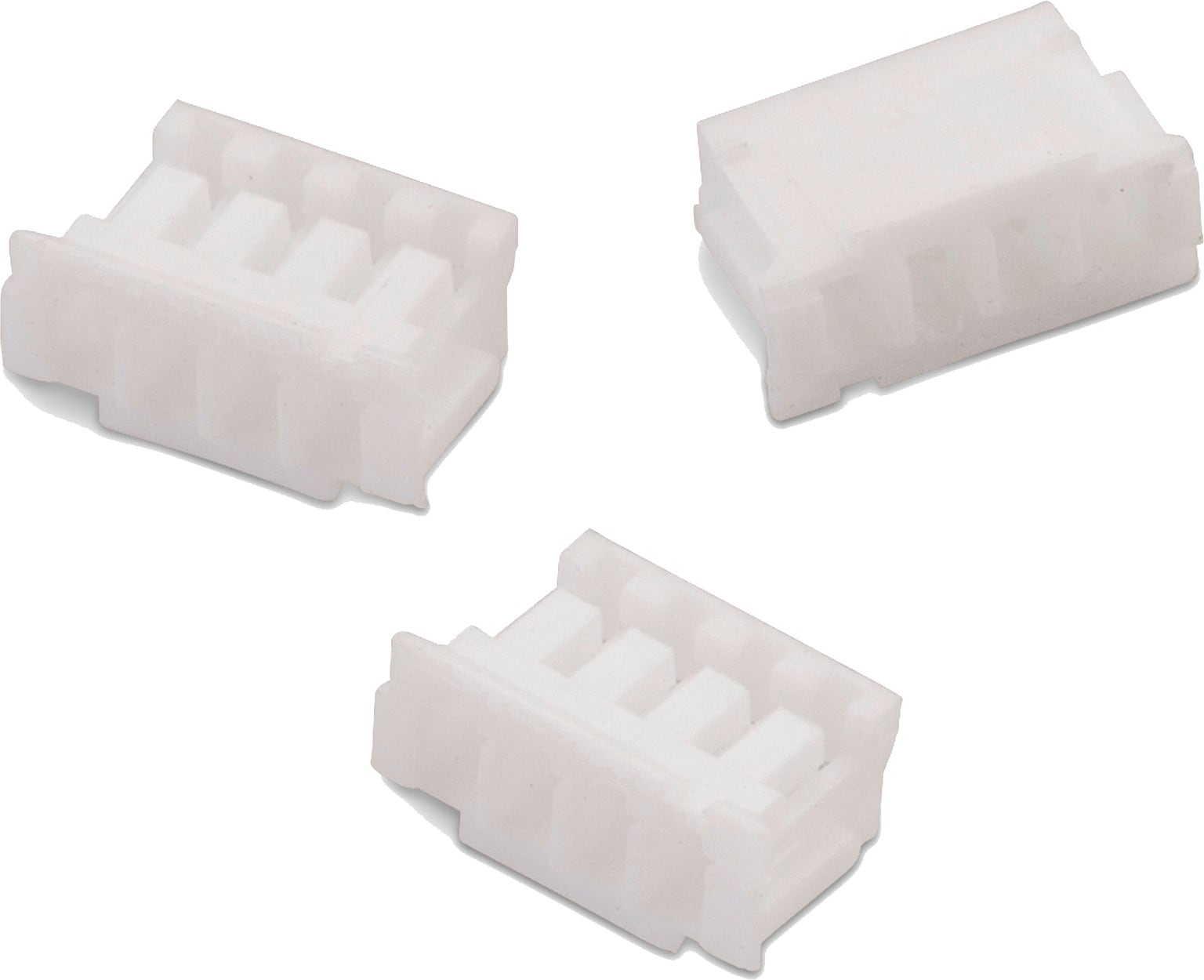

WR-WTB 1.50 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	Ivory

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
Withstanding Voltage	500 V (AC)
R_ISO	100 MΩ
Pitch	1.5 mm
Gender	Female
Type	Terminal Housing

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
648002113322	SPEC	3 files CAD files ZIP 3D 648002113322_1 (rev1).pdf \| 42.2 KB IGS 648002113322 (rev1).iges \| 586.3 KB STP 648002113322 (rev1).stp \| 132.2 KB Download all 3 files as zip archive ZIP	2	1.5	Female	Terminal Housing	Cable	4.5	Bag	645001
648003113322	SPEC	3 files CAD files ZIP 3D 648003113322_1 (rev1).pdf \| 51.4 KB IGS 648003113322 (rev1).iges \| 732.6 KB STP 648003113322 (rev1).stp \| 164 KB Download all 3 files as zip archive ZIP	3	1.5	Female	Terminal Housing	Cable	6	Bag	645001
648004113322	SPEC	3 files CAD files ZIP 3D 648004113322_1 (rev1).pdf \| 60.3 KB IGS 648004113322 (rev1).iges \| 884.8 KB STP 648004113322 (rev1).stp \| 196 KB Download all 3 files as zip archive ZIP	4	1.5	Female	Terminal Housing	Cable	7.5	Bag	645001
648005113322	SPEC	3 files CAD files ZIP 3D 648005113322_1 (rev1).pdf \| 68.3 KB IGS 648005113322 (rev1).iges \| 1 MB STP 648005113322 (rev1).stp \| 228.3 KB Download all 3 files as zip archive ZIP	5	1.5	Female	Terminal Housing	Cable	9	Bag	645001
648006113322	SPEC	3 files CAD files ZIP 3D 648006113322_1 (rev1).pdf \| 80 KB IGS 648006113322 (rev1).iges \| 1.2 MB STP 648006113322 (rev1).stp \| 265.3 KB Download all 3 files as zip archive ZIP	6	1.5	Female	Terminal Housing	Cable	10.5	Bag	645001
648007113322	SPEC	3 files CAD files ZIP 3D 648007113322_1 (rev1).pdf \| 89.4 KB IGS 648007113322 (rev1).iges \| 1.3 MB STP 648007113322 (rev1).stp \| 296.7 KB Download all 3 files as zip archive ZIP	7	1.5	Female	Terminal Housing	Cable	12	Bag	645001
648008113322	SPEC	3 files CAD files ZIP 3D 648008113322_1 (rev1).pdf \| 98.7 KB IGS 648008113322 (rev1).iges \| 1.5 MB STP 648008113322 (rev1).stp \| 331.6 KB Download all 3 files as zip archive ZIP	8	1.5	Female	Terminal Housing	Cable	13.5	Bag	645001
648009113322	SPEC	3 files CAD files ZIP 3D 648009113322_1 (rev1).pdf \| 108.2 KB IGS 648009113322 (rev1).iges \| 1.6 MB STP 648009113322 (rev1).stp \| 358.7 KB Download all 3 files as zip archive ZIP	9	1.5	Female	Terminal Housing	Cable	15	Bag	645001
648010113322	SPEC	3 files CAD files ZIP 3D 648010113322_1 (rev1).pdf \| 117.8 KB IGS 648010113322 (rev1).iges \| 1.8 MB STP 648010113322 (rev1).stp \| 390.2 KB Download all 3 files as zip archive ZIP	10	1.5	Female	Terminal Housing	Cable	16.5	Bag	612690 645001

Order Code	Datasheet
648002113322	SPEC
648003113322	SPEC
648004113322	SPEC
648005113322	SPEC
648006113322	SPEC
648007113322	SPEC
648008113322	SPEC
648009113322	SPEC
648010113322	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 1.50 mm Male Vertical Shrouded Header

WR-WTB 1.50 mm SMT Male Vertical Shrouded Header

WR-WTB 1.50 mm SMT Male Horizontal Shrouded Header

Use with

WR-WTB 1.50 mm Female Crimp Contact

WR-WTB 1.50 mm Pre-Crimped Wire

Tools

WR-WTB Manual Crimping Tool

WR-WTB Manual Insulation Stripper

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
