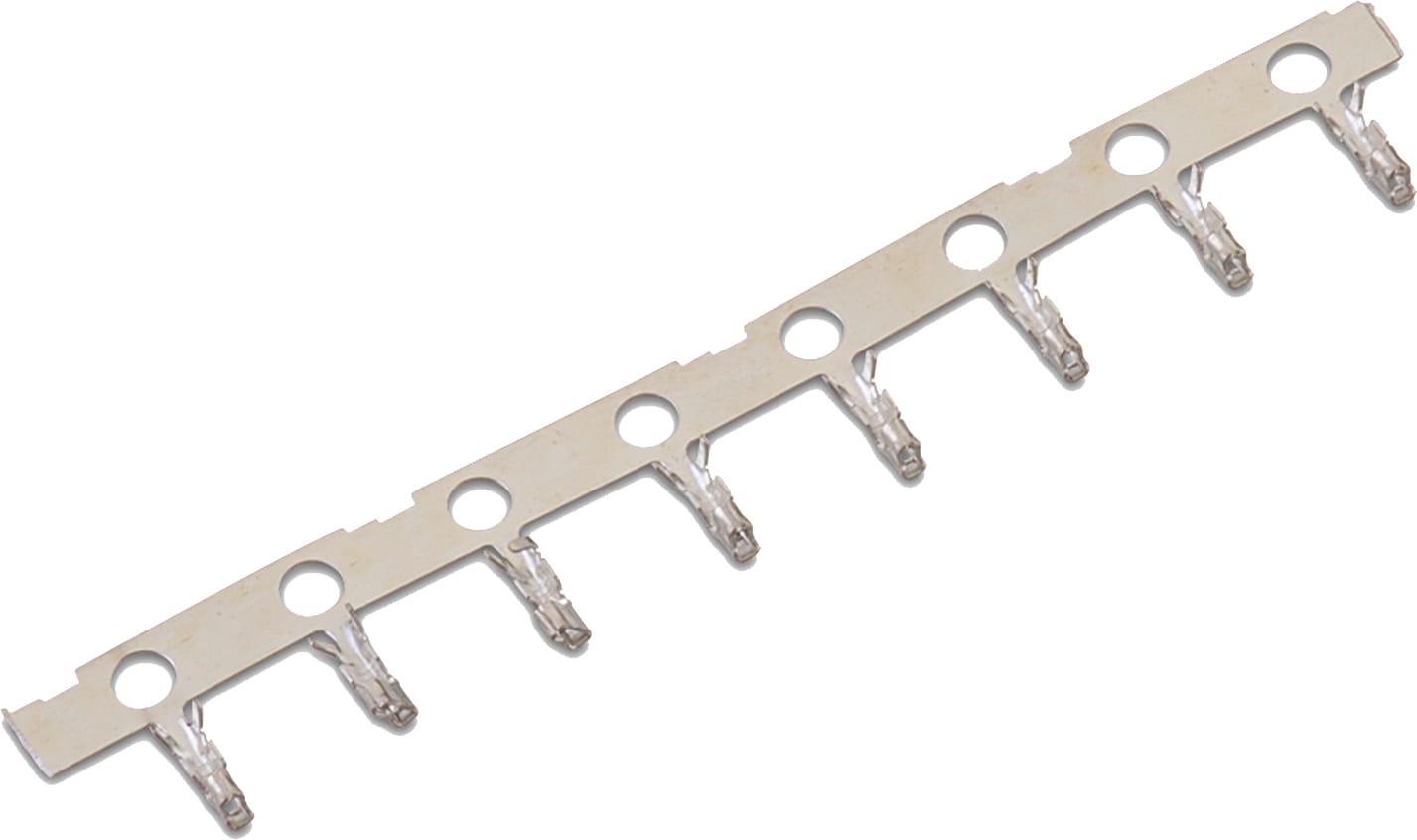

WR-WTB 1.50 mm Female Crimp Contact

Material Properties
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	Lead free / RoHS
I_R	1 A
Working Voltage	50 V (AC)
Contact Resistance	20 mΩ
Pitch	1.5 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-25 °C up to +85 °C

Wire Properties
Stranded Wire Section (AWG)	30 to 28 (AWG)
Stranded Wire Section (Metric)	0.0509 to 0.0810 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Manual Crimping Tool	Automatic Crimping Tool	Design Kit	Samples
	64800113722	Female, 30 to 28 (AWG), 0.0509 to 0.0810 (mm²)	Downloads3 files CAD files ZIP 3D 64800113722_1 (rev1).pdf \| 210.4 KB IGS 64800113722 (rev1).igs \| 2 MB STP 64800113722 (rev1).stp \| 898.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)30 to 28 (AWG)	Stranded Wire Section (Metric)0.0509 to 0.0810 (mm²)	PackagingBig Reel	Packaging Unit15000 pcs	Manual Crimping Tool 600648230220	Automatic Crimping Tool 600648401	Design Kit –
	64810113722	Female, 30 to 28 (AWG), 0.0509 to 0.0810 (mm²)	Downloads3 files CAD files ZIP 3D 64810113722_1 (rev1).pdf \| 198.4 KB IGS 64810113722 (rev1).igs \| 2 MB STP 64810113722 (rev1).stp \| 898.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)30 to 28 (AWG)	Stranded Wire Section (Metric)0.0509 to 0.0810 (mm²)	PackagingSmall Reel	Packaging Unit1000 pcs	Manual Crimping Tool 600648230220	Automatic Crimping Tool 600648401	Design Kit –
	64800113722DEC	Female, 30 to 28 (AWG), 0.0509 to 0.0810 (mm²)	Downloads3 files CAD files ZIP 3D 64800113722DEC_1 (rev1).pdf \| 115.7 KB IGS 64800113722DEC (rev1).igs \| 946.9 KB STP 64800113722DEC (rev1).stp \| 405.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)30 to 28 (AWG)	Stranded Wire Section (Metric)0.0509 to 0.0810 (mm²)	PackagingBag	Packaging Unit100 pcs	Manual Crimping Tool 600648230220	Automatic Crimping Tool –	Design Kit 612690 645001

Use with

WR-WTB 1.50 mm Female Terminal Housing

Tools

WR-WTB Manual Crimping Tool: 600648230220

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
