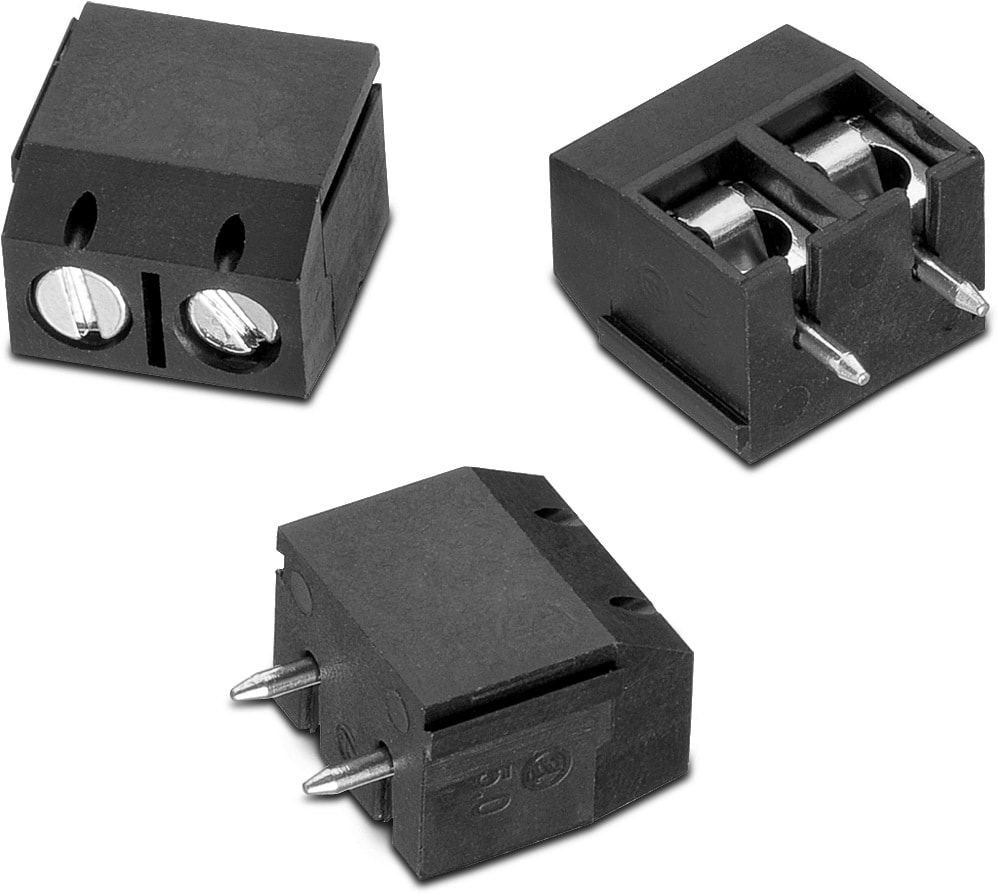

WR-TBL Series 5027 - 5.00 mm Horizontal Entry Modular | Electromechanical Components

Characteristics

Reference Designs

RD041 Design of a Single Pair Ethernet System with Power over Data Lines (SPoE)

General Information
Operating Temperature	-45 °C up to +130 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA 9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Brass
Contact Plating	Copper over Zinc
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Stainless Steel

Electrical Properties
I_R	15 A
Working Voltage	300 V (AC)
Working Voltage [UL]	300 V (AC)
Withstanding Voltage	1600 V (AC)
Withstanding Voltage [UL]	1600 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	5 up to 6 (mm)
Screw	M2.6

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
691502710002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691502710002 (rev1).pdf \| 164.6 KB IGS Download_IGES_691502710002 (rev1).iges \| 910.1 KB STP 691502710002 (rev1).stp \| 195.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pressure Clamp	PCB	Yes	Horizontal	22 to 14 (AWG) 0.34 to 1.5 (mm²)
691502710003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691502710003 (rev1).pdf \| 183.8 KB IGS Download_IGES_691502710003 (rev1).iges \| 1.1 MB STP 691502710003 (rev1).stp \| 225.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pressure Clamp	PCB	Yes	Horizontal	22 to 14 (AWG) 0.34 to 1.5 (mm²)

Order Code	Datasheet
691502710002	SPEC
691502710003	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
