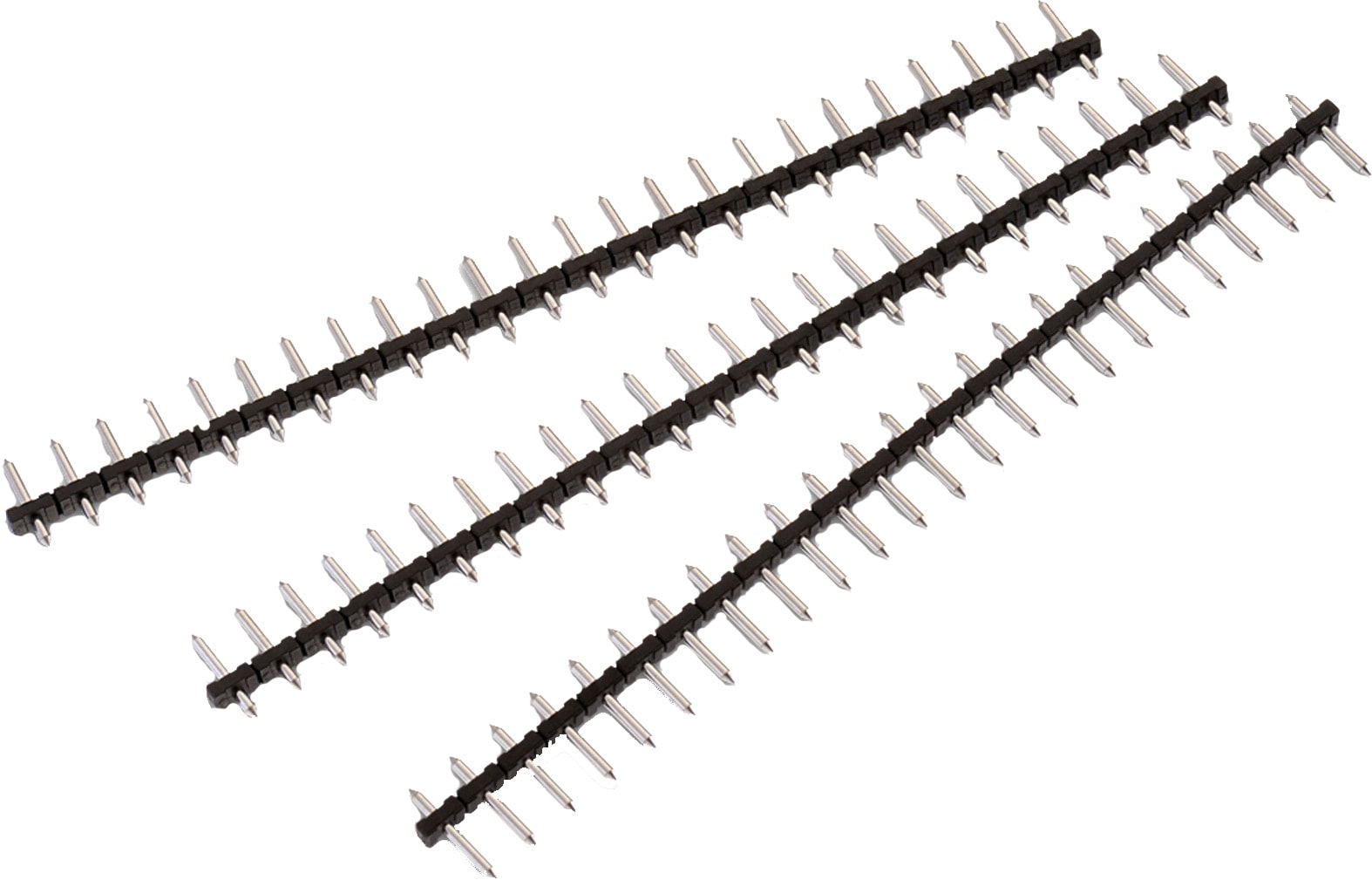

WR-TBL Series 300 - 5.00 mm Pin Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	12 A; 15 A
I_R[cULus]	15 A
I_R[VDE]	12 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
691300700024	SPEC	8 files EDA models: Components ZIP ALT 691300700024 (rev16b).IntLib \| 6.2 MB ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691300700024_1 (rev1).pdf \| 196.2 KB IGS 691300700024 (rev1).igs \| 2.8 MB STP 691300700024 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	Pluggable	PCB	Yes	Vertical	612690 691002

Order Code	Datasheet
691300700024	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
