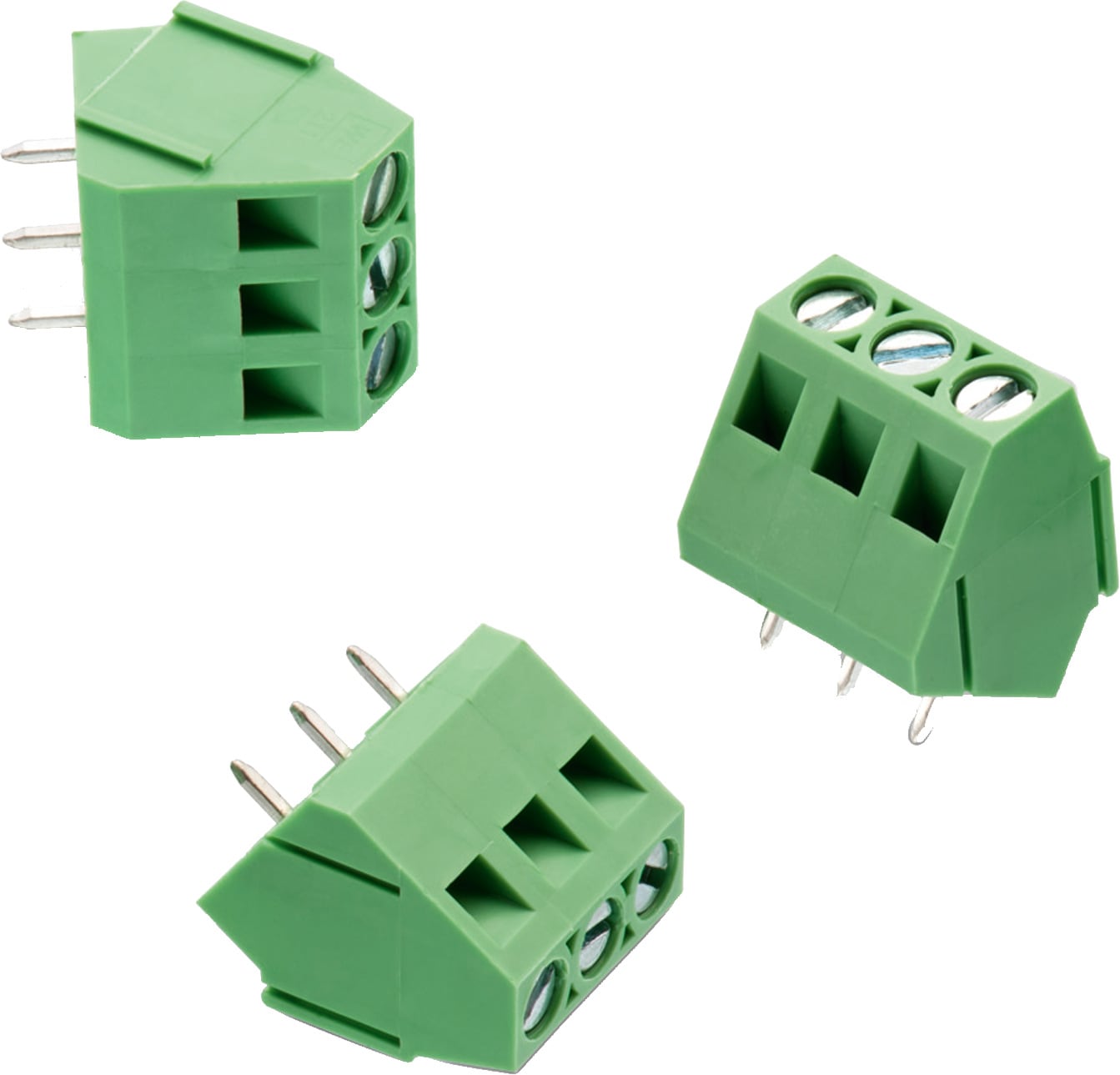

WR-TBL Series 211 - 5.00 mm 45° Entry Modular H=15.5mm | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Brass

Electrical Properties
I_R	10 A
Working Voltage	300 V (AC)
Working Voltage [UL]	300 V (AC)
Withstanding Voltage [UL]	1600 V (AC)
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	6 up to 7 (mm)
Screw	M2.5

Certification
UL Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
691211720002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691211720002 (rev1).pdf \| 84.3 KB IGS 691211720002 (rev1).iges \| 1013.8 KB STP 691211720002 (rev1).stp \| 345.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Rising Cage Clamp	PCB	Yes	45°	24 to 12 (AWG) 0.2 to 2.5 (mm²)
691211720003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Rising Cage Clamp (rev25a).IntLib \| 29.2 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Rising Cage Clamp (rev23a).lbr \| 2.4 MB CAD files ZIP 3D 3D_691211720003 (rev1).pdf \| 104.7 KB IGS 691211720003 (rev1).iges \| 1.3 MB STP 691211720003 (rev1).stp \| 444.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Rising Cage Clamp	PCB	Yes	45°	24 to 12 (AWG) 0.2 to 2.5 (mm²)

Order Code	Datasheet
691211720002	SPEC
691211720003	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Samples
