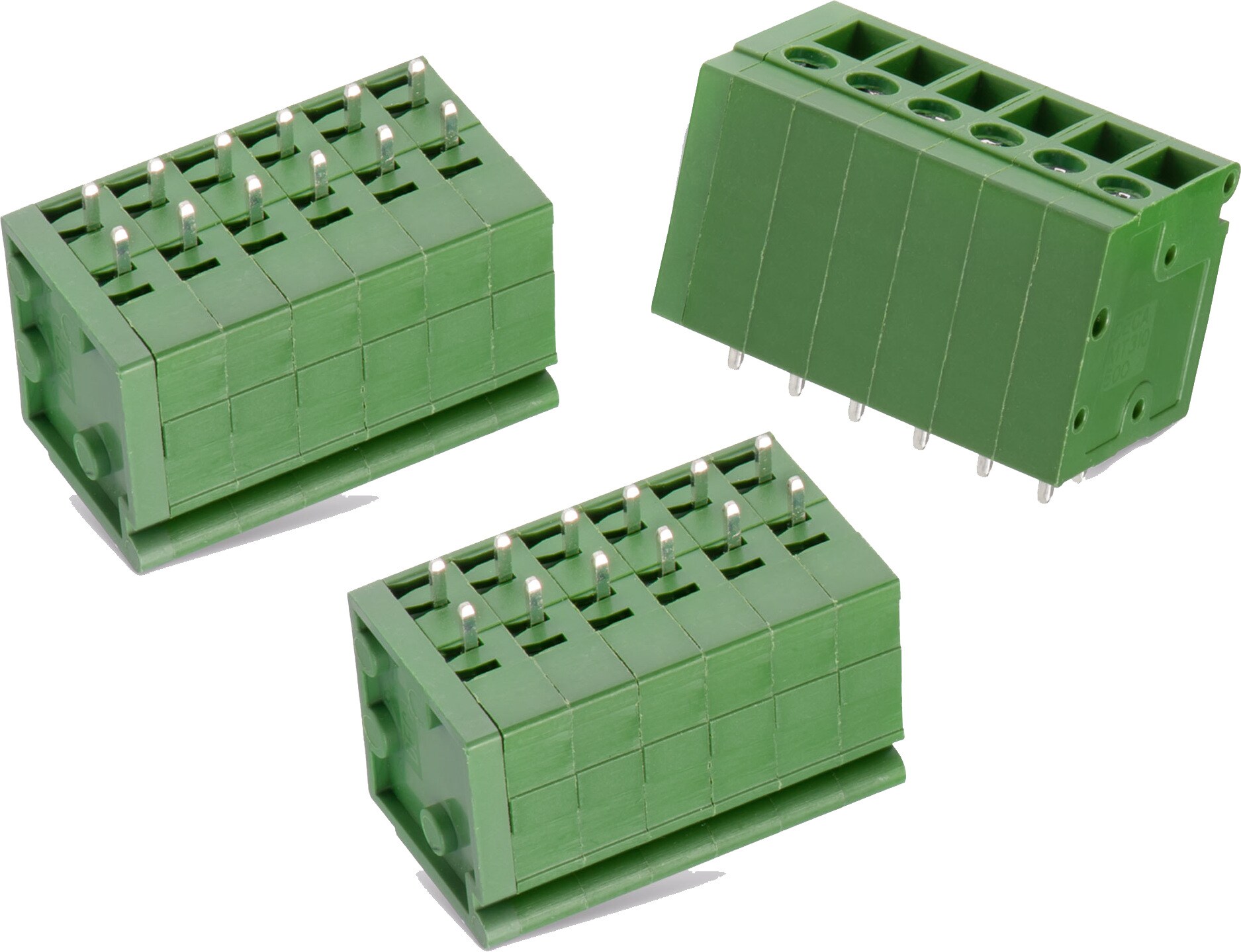

WR-TBL Series 127B - Excenter Clamp 5.00mm pitch - Vertical cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Steel
Contact Plating	Zinc
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Steel

Electrical Properties
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	2000 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	9 (mm)
Screw	M2

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691127700002B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700002B (rev1).pdf \| 267.2 KB IGS 691127700002B (rev1).igs \| 2.4 MB STP 691127700002B (rev1).stp \| 905.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	691001
691127700003B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700003B (rev1).pdf \| 268.4 KB IGS 691127700003B (rev1).igs \| 2.4 MB STP 691127700003B (rev1).stp \| 906.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	612690
691127700004B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700004B (rev1).pdf \| 269.6 KB IGS 691127700004B (rev1).igs \| 2.4 MB STP 691127700004B (rev1).stp \| 907.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691127700005B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700005B (rev1).pdf \| 270.8 KB IGS 691127700005B (rev1).igs \| 2.4 MB STP 691127700005B (rev1).stp \| 908.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691127700006B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700006B (rev1).pdf \| 271.9 KB IGS 691127700006B (rev1).igs \| 2.4 MB STP 691127700006B (rev1).stp \| 908.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691127700008B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Wire Protector (rev25a).IntLib \| 12.6 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691127700008B (rev1).pdf \| 274.3 KB IGS 691127700008B (rev1).igs \| 2.4 MB STP 691127700008B (rev1).stp \| 910.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pressure Clamp	PCB	Yes	Vertical	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–

Order Code	Datasheet
691127700002B	SPEC
691127700003B	SPEC
691127700004B	SPEC
691127700005B	SPEC
691127700006B	SPEC
691127700008B	SPEC
