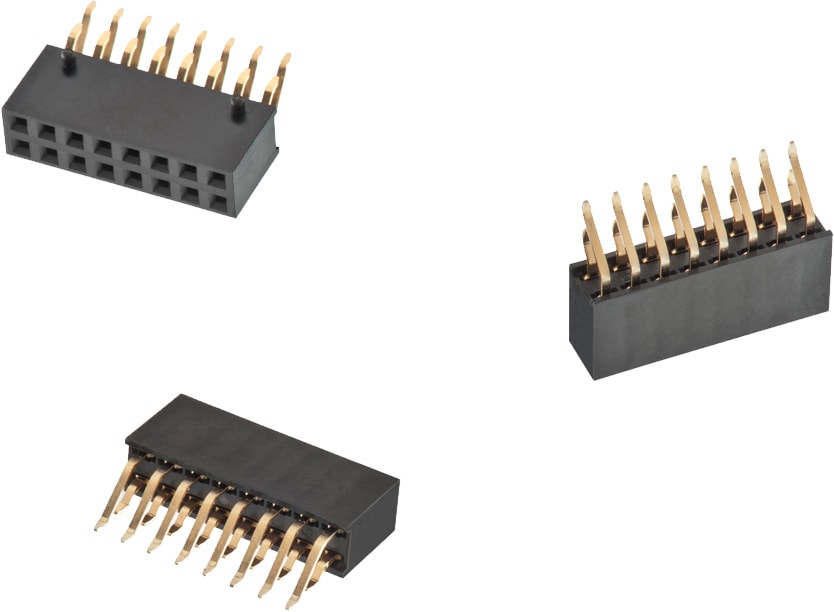

WR-PHD 2.54 mm PCB Socket Header - SMT Type - Double Row - Right Angle

Article Properties
Pins6; 8; 10; 12; 14; 16; 20; 22; 24; 26
Kind Properties
Pitch2.54 mm
RowsDual
GenderSocket Header
TypeAngled
Material Properties
Insulator MaterialPA6T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Electrical Properties
Withstanding Voltage600 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples
610106249221SPEC
6 files 6 Dual Socket Header Angled 3 Tape and Reel613001
610108249221SPEC
6 files 8 Dual Socket Header Angled 3 Tape and Reel
610110249221SPEC
6 files 10 Dual Socket Header Angled 3 Tape and Reel613001
610112249221SPEC
6 files 12 Dual Socket Header Angled 3 Tape and Reel
610114249221SPEC
6 files 14 Dual Socket Header Angled 3 Tape and Reel
610116249221SPEC
6 files 16 Dual Socket Header Angled 3 Tape and Reel613001
610120249221SPEC
6 files 20 Dual Socket Header Angled 3 Tape and Reel
610122249221SPEC
6 files 22 Dual Socket Header Angled 3 Tape and Reel
610124249221SPEC
6 files 24 Dual Socket Header Angled 3 Tape and Reel
610126249221SPEC
6 files 26 Dual Socket Header Angled 3 Tape and Reel
