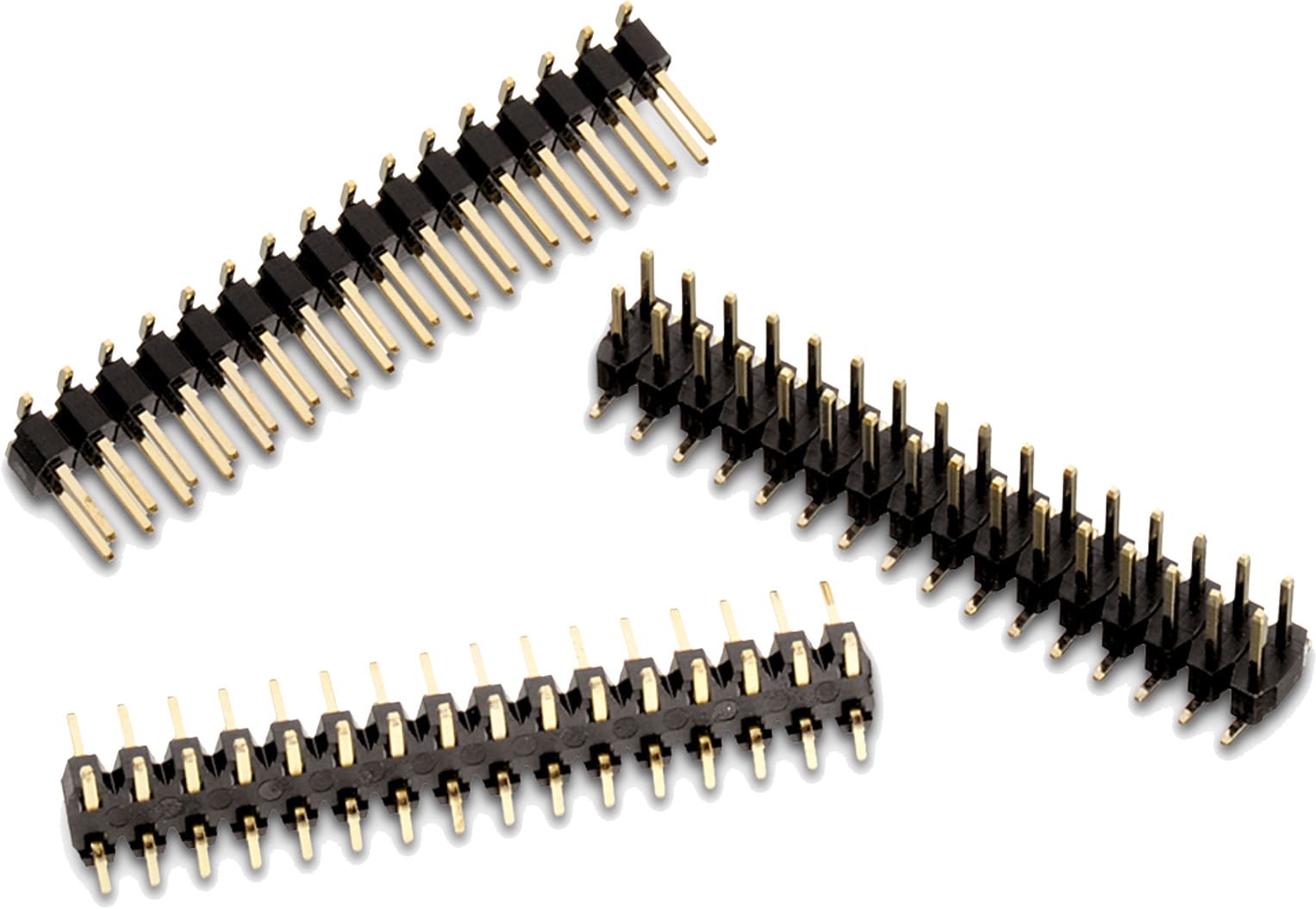

WR-PHD 2.00 mm SMT Dual Pin Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 14 pcs; 16 pcs; 20 pcs; 24 pcs; 32 pcs; 44 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Pin Header
Type	Straight

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap; Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	62100421921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62100421921_1 (rev1).pdf \| 35.3 KB IGS Download_IGES_62100421921 (rev1).iges \| 701.2 KB STP 62100421921 (rev1).stp \| 167 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Pin Header	Straight	2	Tube	–
	62130421921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62130421921_1 (rev1).pdf \| 45.7 KB IGS Download_IGES_62130421921 (rev1).iges \| 701.3 KB STP 62130421921 (rev1).stp \| 167 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Pin Header	Straight	2	Tape and Reel with Cap	–
	62100621921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62100621921_1 (rev1).pdf \| 47.6 KB IGS Download_IGES_62100621921 (rev1).iges \| 902.5 KB STP 62100621921 (rev1).stp \| 214.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Pin Header	Straight	2	Tube	–
	62130621921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62130621921_1 (rev1).pdf \| 58 KB IGS Download_IGES_62130621921 (rev1).iges \| 902.4 KB STP 62130621921 (rev1).stp \| 214.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Pin Header	Straight	2	Tape and Reel with Cap	–
	62100821921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62100821921_1 (rev1).pdf \| 56.2 KB IGS Download_IGES_62100821921 (rev1).iges \| 1.1 MB STP 62100821921 (rev1).stp \| 261.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Pin Header	Straight	2	Tube	–
	62130821921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62130821921_1 (rev1).pdf \| 66.6 KB IGS Download_IGES_62130821921 (rev1).iges \| 1.1 MB STP 62130821921 (rev1).stp \| 261.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Pin Header	Straight	2	Tape and Reel with Cap	613001
	62101021921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62101021921_1 (rev1).pdf \| 66.2 KB IGS Download_IGES_62101021921 (rev1).iges \| 1.3 MB STP 62101021921 (rev1).stp \| 308.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Pin Header	Straight	2	Tube	612690
	62131021921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62131021921_1 (rev1).pdf \| 76.5 KB IGS Download_IGES_62131021921 (rev1).iges \| 1.3 MB STP 62131021921 (rev1).stp \| 308.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Pin Header	Straight	2	Tape and Reel with Cap	613001
	62101421921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62101421921_1 (rev1).pdf \| 86.2 KB IGS Download_IGES_62101421921 (rev1).iges \| 1.6 MB STP 62101421921 (rev1).stp \| 397.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Pin Header	Straight	2	Tube	–
	62131421921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62131421921_1 (rev1).pdf \| 96.6 KB IGS Download_STP_62131421921 (rev1).iges \| 1.6 MB STP 62131421921 (rev1).stp \| 397.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Pin Header	Straight	2	Tape and Reel with Cap	–
	62101621921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62101621921_1 (rev1).pdf \| 96.2 KB IGS Download_IGES_62101621921 (rev1).iges \| 1.8 MB STP 62101621921 (rev1).stp \| 445.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Pin Header	Straight	2	Tube	–
	62131621921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62131621921_1 (rev1).pdf \| 106.6 KB IGS Download_IGES_62131621921 (rev1).iges \| 1.8 MB STP 62131621921 (rev1).stp \| 445.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Pin Header	Straight	2	Tape and Reel with Cap	613001
	62102021921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62102021921_1 (rev1).pdf \| 116.2 KB IGS Download_IGES_62102021921 (rev1).iges \| 2.2 MB STP 62102021921 (rev1).stp \| 550.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Pin Header	Straight	2	Tube	–
	62132021921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62132021921_1 (rev1).pdf \| 126.5 KB IGS Download_IGES_62132021921 (rev1).iges \| 2.2 MB STP 62132021921 (rev1).stp \| 550.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Pin Header	Straight	2	Tape and Reel with Cap	613001
	62102421921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62102421921_1 (rev1).pdf \| 136.5 KB IGS Download_IGES_62102421921 (rev1).iges \| 2.6 MB STP 62102421921 (rev1).stp \| 640.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Pin Header	Straight	2	Tube	–
	62103221921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62103221921_1 (rev1).pdf \| 177.2 KB IGS Download_IGES_62103221921 (rev1).iges \| 3.4 MB STP 62103221921 (rev1).stp \| 834.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	32	Dual	Pin Header	Straight	2	Tube	–
	62104421921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62104421921_1 (rev1).pdf \| 237.9 KB IGS Download_IGES_62104421921 (rev1).iges \| 4.6 MB STP 62104421921 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Pin Header	Straight	2	Tube	–

	Order Code	Datasheet
	62100421921	SPEC
	62130421921	SPEC
	62100621921	SPEC
	62130621921	SPEC
	62100821921	SPEC
	62130821921	SPEC
	62101021921	SPEC
	62131021921	SPEC
	62101421921	SPEC
	62131421921	SPEC
	62101621921	SPEC
	62131621921	SPEC
	62102021921	SPEC
	62132021921	SPEC
	62102421921	SPEC
	62103221921	SPEC
	62104421921	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm Dual Socket Header

WR-PHD 2.00 mm Dual SMT Socket Header Bottom Entry

WR-PHD 2.00 mm Dual SMT Socket Header Low Profile Bottom Entry

WR-PHD 2.00 mm Dual SMT Socket Header Angled

WR-PHD 2.00 mm Jumper with Test Point

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-PHD Pin & Socket Header
