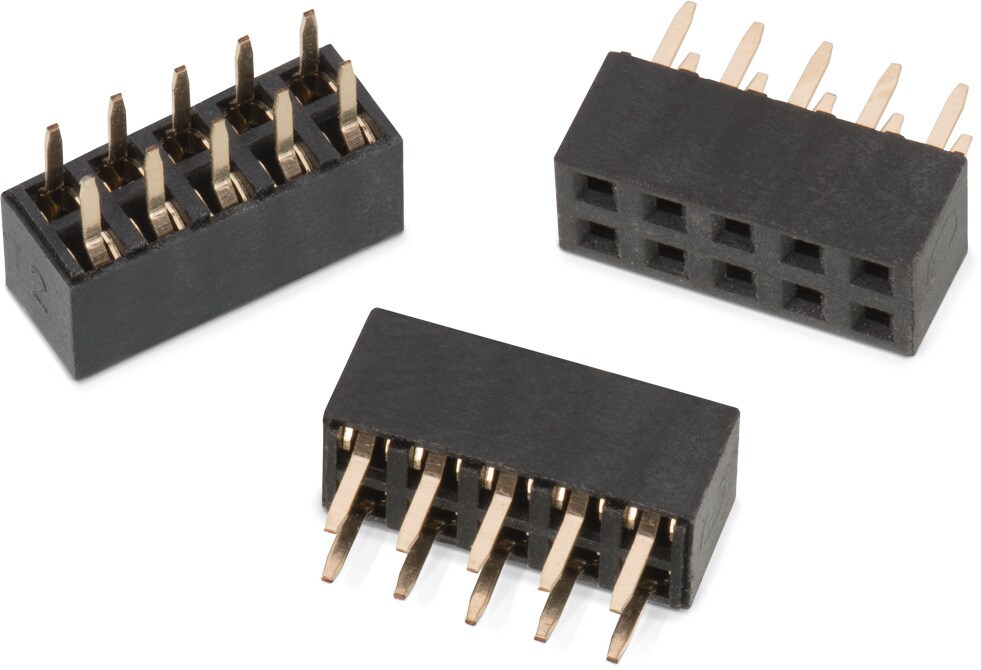

WR-PHD 2.00 mm Dual Socket Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 14 pcs; 16 pcs; 20 pcs; 24 pcs; 28 pcs; 32 pcs; 40 pcs; 44 pcs

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	Lead free / RoHS
Pitch	2 mm
Durability	50 Cycles
Rows	Dual
Gender	Socket Header
Type	Straight

Electrical Properties
I_R	2 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	62000421821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62000421821_1 (rev1).pdf \| 57.9 KB IGS Download_IGES_62000421821 (rev1).iges \| 1.2 MB STP 62000421821 (rev1).stp \| 248.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Straight	2	Tube	–
	62000621821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62000621821_1 (rev1).pdf \| 69 KB IGS Download_IGES_62000621821 (rev1).iges \| 1.5 MB STP 62000621821 (rev1).stp \| 291.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Straight	2	Tube	–
	62000821821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62000821821_1 (rev1).pdf \| 77.2 KB IGS Download_IGES_62000821821 (rev1).iges \| 1.7 MB STP 62000821821 (rev1).stp \| 334.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Straight	2	Tube	613001
	62001021821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62001021821_1 (rev1).pdf \| 86.4 KB IGS Download_IGES_62001021821 (rev1).iges \| 1.9 MB STP 62001021821 (rev1).stp \| 376.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Straight	2	Tube	613001
	62001421821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62001421821_1 (rev1).pdf \| 104.9 KB IGS Download_IGES_62001421821 (rev1).iges \| 2.3 MB STP 62001421821 (rev1).stp \| 468.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Socket Header	Straight	2	Tube	–
	62001621821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62001621821_1 (rev1).pdf \| 114.2 KB IGS Download_IGES_62001621821 (rev1).iges \| 2.5 MB STP 62001621821 (rev1).stp \| 514.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Straight	2	Tube	–
	62002021821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62002021821_1 (rev1).pdf \| 132.6 KB IGS Download_IGES_62002021821 (rev1).iges \| 3 MB STP 62002021821 (rev1).stp \| 602.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Straight	2	Tube	613001
	62002421821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62002421821_1 (rev1).pdf \| 151.4 KB IGS Download_IGES_62002421821 (rev1).iges \| 3.4 MB STP 62002421821 (rev1).stp \| 691.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Socket Header	Straight	2	Tube	–
	62002821821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62002821821_1 (rev1).pdf \| 170.2 KB IGS Download_IGES_62002821821 (rev1).iges \| 3.8 MB STP 62002821821 (rev1).stp \| 790.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	28	Dual	Socket Header	Straight	2	Tube	613001
	62003221821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62003221821_1 (rev1).pdf \| 189.1 KB IGS Download_IGES_62003221821 (rev1).iges \| 4.3 MB STP 62003221821 (rev1).stp \| 872.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	32	Dual	Socket Header	Straight	2	Tube	–
	62004021821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62004021821_1 (rev1).pdf \| 226 KB IGS 62004021821 (rev1).iges \| 5.1 MB STP 62004021821 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	Dual	Socket Header	Straight	2	Tube	613001
	62004421821	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 62004421821_1 (rev1).pdf \| 245 KB IGS Download_IGES_62004421821 (rev1).iges \| 5.6 MB STP 62004421821 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	44	Dual	Socket Header	Straight	2	Tube	–

	Order Code	Datasheet
	62000421821	SPEC
	62000621821	SPEC
	62000821821	SPEC
	62001021821	SPEC
	62001421821	SPEC
	62001621821	SPEC
	62002021821	SPEC
	62002421821	SPEC
	62002821821	SPEC
	62003221821	SPEC
	62004021821	SPEC
	62004421821	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.00 mm THT Dual Pin Header

WR-PHD 2.00 mm SMT Dual Pin Header

WR-PHD 2.00 mm SMT Angled Dual Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
