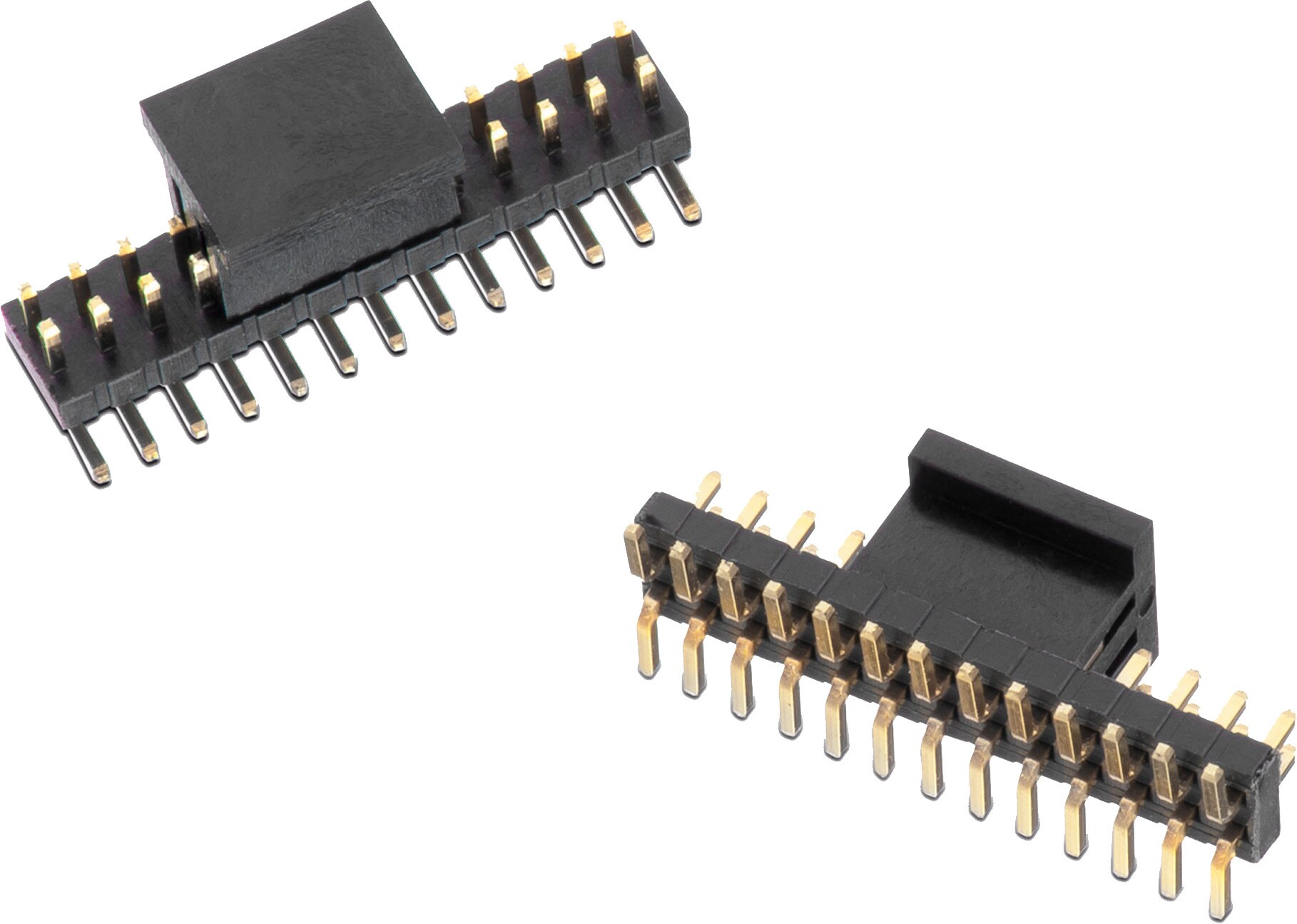

WR-PHD 1.27 mm SMT Dual Pin Header, H=1.80 mm

Article Properties
Pins10 mm; 26 mm; 50 mm
Kind Properties
Pitch1.27 mm
Quality Class3 as per CECC 75 301-802
RowsDual
GenderPin Header
TypeStraight
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
IR1 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel with Pad

Products

Assortments

Articles from this product series can be found in the following assortments:
