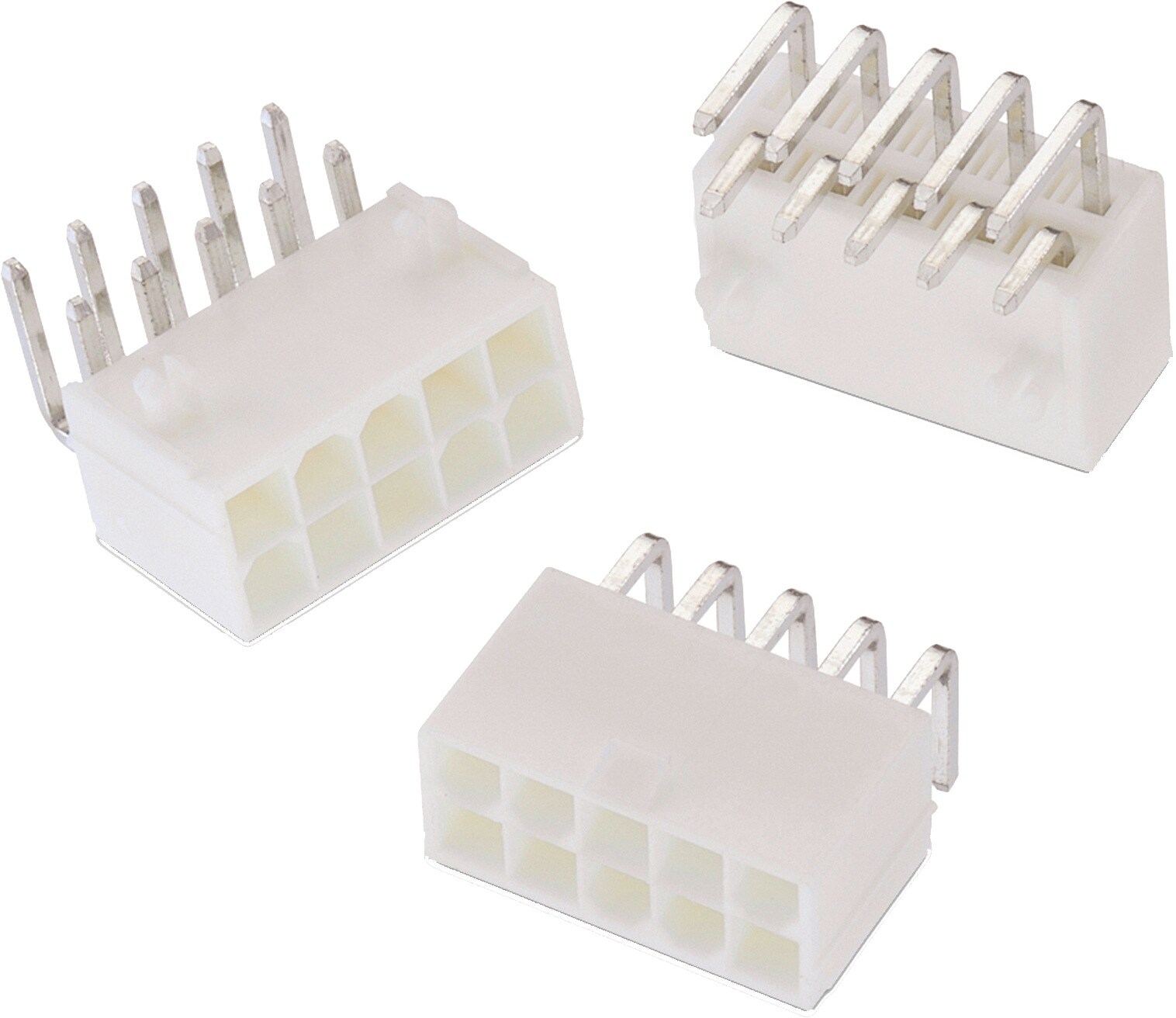

WR-MPC4 4.20 mm Male Dual Row Angled Header w. Mounting Pegs

Kind Properties
Pitch4.2 mm
GenderMale
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
Contact MaterialTin over Nickel
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Working Voltage600 V (AC)
Withstanding Voltage1500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Wire Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
649002227222SPEC
6 files 2 4.2 Male Right Angled Dual THT 600 PCB 10 max. 5.4 Tray649001
649004227222SPEC
6 files 4 4.2 Male Right Angled Dual THT 600 PCB 10 max. 9.6 Tray649001
649006227222SPEC
6 files 6 4.2 Male Right Angled Dual THT 600 PCB 10 max. 13.8 Tray612690
649001
649008227222SPEC
6 files 8 4.2 Male Right Angled Dual THT 600 PCB 10 max. 18 Tray649001
649010227222SPEC
6 files 10 4.2 Male Right Angled Dual THT 600 PCB 10 max. 22.2 Tray649001
649012227222SPEC
6 files 12 4.2 Male Right Angled Dual THT 600 PCB 10 max. 26.4 Tray649001
649014227222SPEC
6 files 14 4.2 Male Right Angled Dual THT 600 PCB 10 max. 30.6 Tray649001
649016227222SPEC
6 files 16 4.2 Male Right Angled Dual THT 600 PCB 10 max. 34.8 Tray649001
649018227222SPEC
6 files 18 4.2 Male Right Angled Dual THT 600 PCB 10 max. 39 Tray649001
649020227222SPEC
6 files 20 4.2 Male Right Angled Dual THT 600 PCB 10 max. 43.2 Tray649001
649022227222SPEC
6 files 22 4.2 Male Right Angled Dual THT 600 PCB 10 max. 47.4 Tray649001
649024227222SPEC
6 files 24 4.2 Male Right Angled Dual THT 600 PCB 10 max. 51.6 Tray649001
Order Code Data­sheet
649002227222SPEC
649004227222SPEC
649006227222SPEC
649008227222SPEC
649010227222SPEC
649012227222SPEC
649014227222SPEC
649016227222SPEC
649018227222SPEC
649020227222SPEC
649022227222SPEC
649024227222SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
