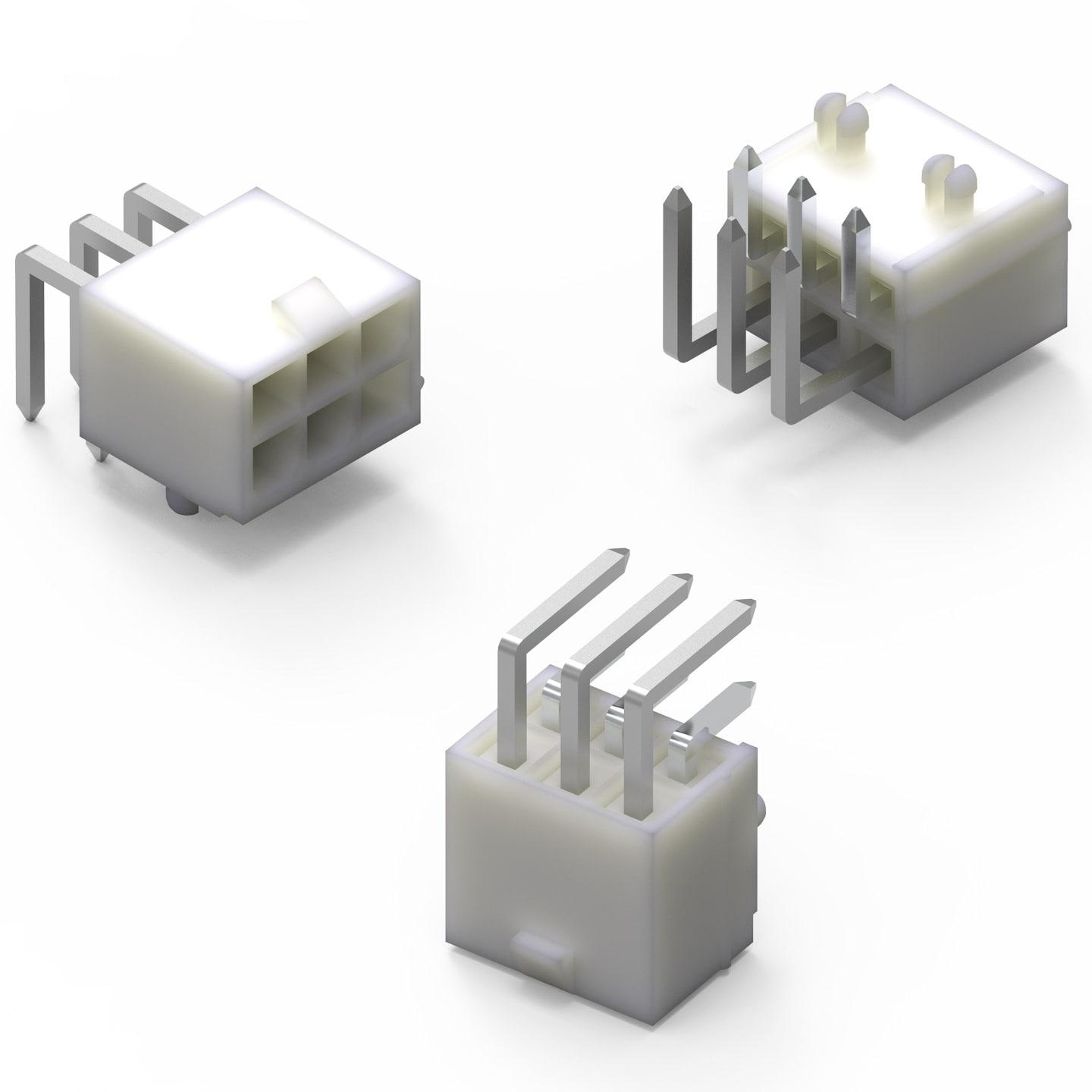

WR-MPC4 4.20 mm Male Dual Row Angled Header w. Mounting Pegs

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White
Contact Material	Tin over Nickel
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
I_R	6 A; 7 A; 8 A; 9 A
Working Voltage	600 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ
Pitch	4.2 mm
Gender	Male

Certification
UL Approval	E323964

Wire Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	I_R (A)	Gender	Type	Rows	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
649002227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649002227222_1 (rev1).pdf \| 71.4 KB IGS 649002227222 (rev1).iges \| 657.1 KB STP 649002227222 (rev1).stp \| 156 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	4.2	9	Male	Right Angled	Dual	THT	600	PCB	5.4	Tray	649001
649004227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649004227222_1 (rev1).pdf \| 81.6 KB IGS 649004227222 (rev1).iges \| 871.8 KB STP 649004227222 (rev1).stp \| 207.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	4.2	8	Male	Right Angled	Dual	THT	600	PCB	9.6	Tray	649001
649006227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649006227222_1 (rev1).pdf \| 133.1 KB IGS 649006227222 (rev1).iges \| 1.2 MB STP 649006227222 (rev1).stp \| 298.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	4.2	8	Male	Right Angled	Dual	THT	600	PCB	13.8	Tray	649001
649008227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649008227222_1 (rev1).pdf \| 141.2 KB IGS 649008227222 (rev1).iges \| 1.4 MB STP 649008227222 (rev1).stp \| 349 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	4.2	7	Male	Right Angled	Dual	THT	600	PCB	18	Tray	649001
649010227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649010227222_1 (rev1).pdf \| 151.7 KB IGS 649010227222 (rev1).iges \| 1.7 MB STP 649010227222 (rev1).stp \| 398.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	4.2	7	Male	Right Angled	Dual	THT	600	PCB	22.2	Tray	649001
649012227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649012227222_1 (rev1).pdf \| 154.2 KB IGS 649012227222 (rev1).iges \| 1.9 MB STP 649012227222 (rev1).stp \| 447.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	4.2	6	Male	Right Angled	Dual	THT	600	PCB	26.4	Tray	649001
649014227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649014227222_1 (rev1).pdf \| 161.6 KB IGS 649014227222 (rev1).iges \| 2.1 MB STP 649014227222 (rev1).stp \| 499.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	4.2	6	Male	Right Angled	Dual	THT	600	PCB	30.6	Tray	649001
649016227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649016227222_1 (rev1).pdf \| 170.1 KB IGS 649016227222 (rev1).iges \| 2.3 MB STP 649016227222 (rev1).stp \| 551.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	4.2	6	Male	Right Angled	Dual	THT	600	PCB	34.8	Tray	649001
649018227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649018227222_1 (rev1).pdf \| 180.2 KB IGS 649018227222 (rev1).iges \| 2.5 MB STP 649018227222 (rev1).stp \| 602.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	4.2	6	Male	Right Angled	Dual	THT	600	PCB	39	Tray	649001
649020227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649020227222_1 (rev1).pdf \| 190.6 KB IGS 649020227222 (rev1).iges \| 2.7 MB STP 649020227222 (rev1).stp \| 656 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	4.2	6	Male	Right Angled	Dual	THT	600	PCB	43.2	Tray	649001
649022227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649022227222_1 (rev1).pdf \| 201.7 KB IGS 649022227222 (rev1).iges \| 2.9 MB STP 649022227222 (rev1).stp \| 706.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	4.2	6	Male	Right Angled	Dual	THT	600	PCB	47.4	Tray	649001
649024227222	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 649024227222_1 (rev1).pdf \| 209 KB IGS 649024227222 (rev1).iges \| 3.1 MB STP 649024227222 (rev1).stp \| 758.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	4.2	6	Male	Right Angled	Dual	THT	600	PCB	51.6	Tray	649001

Order Code	Datasheet
649002227222	SPEC
649004227222	SPEC
649006227222	SPEC
649008227222	SPEC
649010227222	SPEC
649012227222	SPEC
649014227222	SPEC
649016227222	SPEC
649018227222	SPEC
649020227222	SPEC
649022227222	SPEC
649024227222	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	I_R (A)	Gender	Type	Rows	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-MPC4 4.20 mm Female Dual Row Plug

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC4 Mini Power Connectors
